Ruko-101093-Broca escalonada HSS sistema métrico. Agujeros previos a roscar DIN/EN 60423 Ø 5,3-30,5 mm (9 pasos)

Ruko-101093-Broca escalonada HSS sistema métrico. Agujeros previos a roscar DIN/EN 60423 Ø 5,3-30,5 mm (9 pasos)

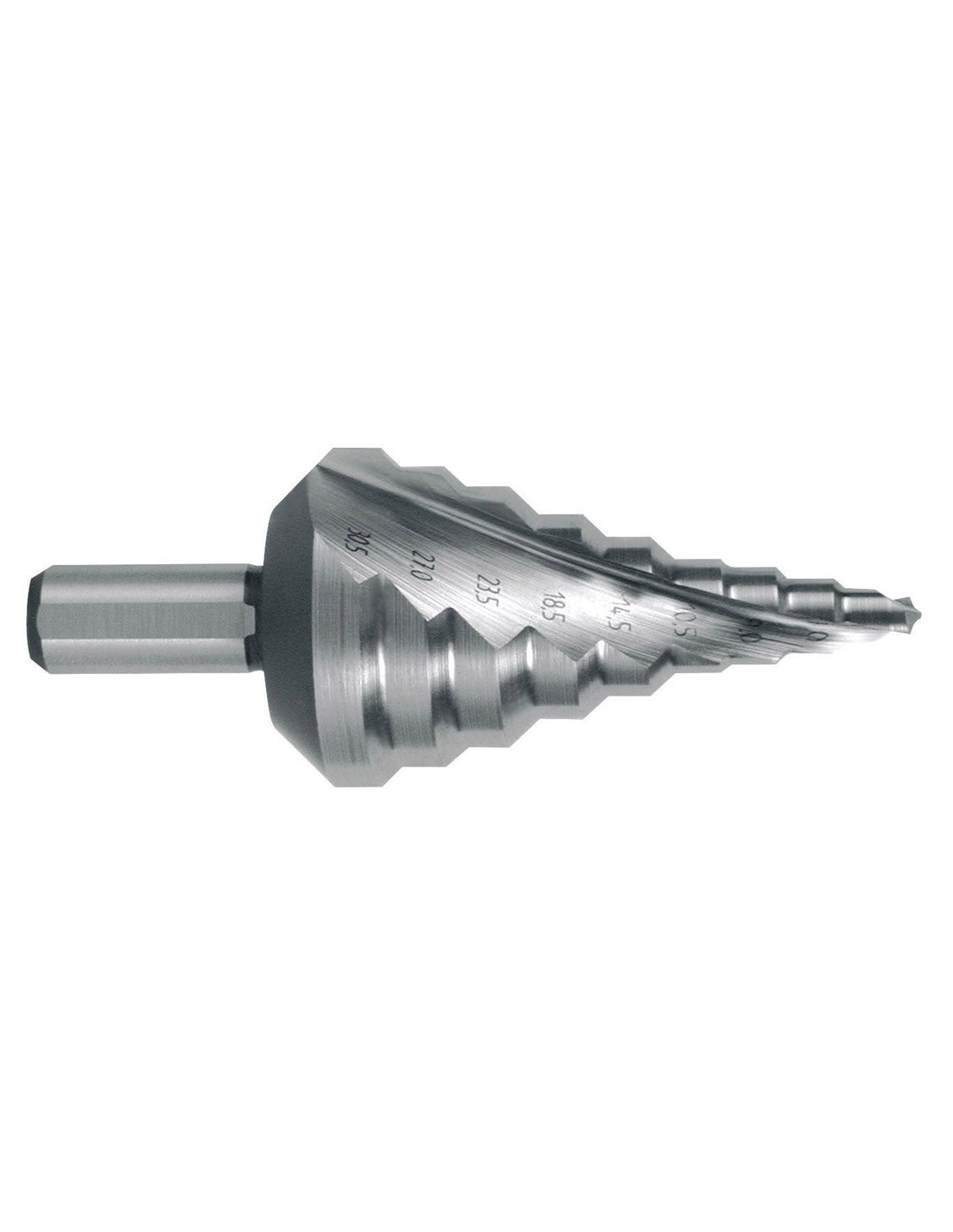

RUKO HSS metric step drill bit for pre-tapping holes Ø 5.3-30.5 mm

Brand: Ruko

Reference TUR 101093

Last items in stock

€147.09

VAT included

The Ruko-101093 HSS step drill bit is designed for drilling sheet metal up to 4 mm thick. With a Ø 5.3-30.5 mm range and 9 steps, it offers precise and efficient cutting, minimizing noise and vibration. Includes a translucent plastic case.

In stock 2 Items

Email address

Description

The Ruko-101093 step drill is a high-precision tool designed for drilling sheet metal in various industries, including electrical, plumbing, heating, and automotive. Its innovative design and advanced technical features make it an ideal choice for drilling pre-tapping holes according to DIN/EN 60423, with a diameter range of 5.3 to 30.5 mm in 9 steps.

The DIN 1412 C split point cutting edge, along with a 118° cutting angle and a 90° taper angle, ensures optimal cutting performance. The drill is designed for right-hand cutting, and its CBN grinding, combined with spiral chip flutes, minimizes noise, vibration, and burrs during use. Each step of the drill is radially adjusted and ground, guaranteeing accuracy with every hole.

The steps are laser-marked for ease of use, and it is suitable for sheet metal up to 4 mm thick.

Cutting point with split point DIN 1412 C
Cutting angle: 118º
Cone angle: 90º
Right-hand cutting
CBN ground for efficient cutting
Spiral chip ejection channels
Radially adjusted and ground steps
Laser-marked steps
Suitable for sheet metal up to 4 mm thick
Includes translucent plastic case with hanger

Product Details

High: 3,55
Width: 3,55
EAN: 4007140078384
Manufacturer: Ruko
Weight (kg): 0,1200
Depth: 8,90
Reference: TUR 101093
GPSR Safety warning: No
GPSR Manufacturer information: AGHASA TURIS S.A, Calle de Rey Pastor, 17
28914 Leganés, Madrid - +34916334450
GPSR EU responsible person: AGHASA TURIS S.A, Calle de Rey Pastor, 17
28914 Leganés, Madrid - +34916334450
GPSR e-mail manufacturer: [email protected]

In stock 2 Items
