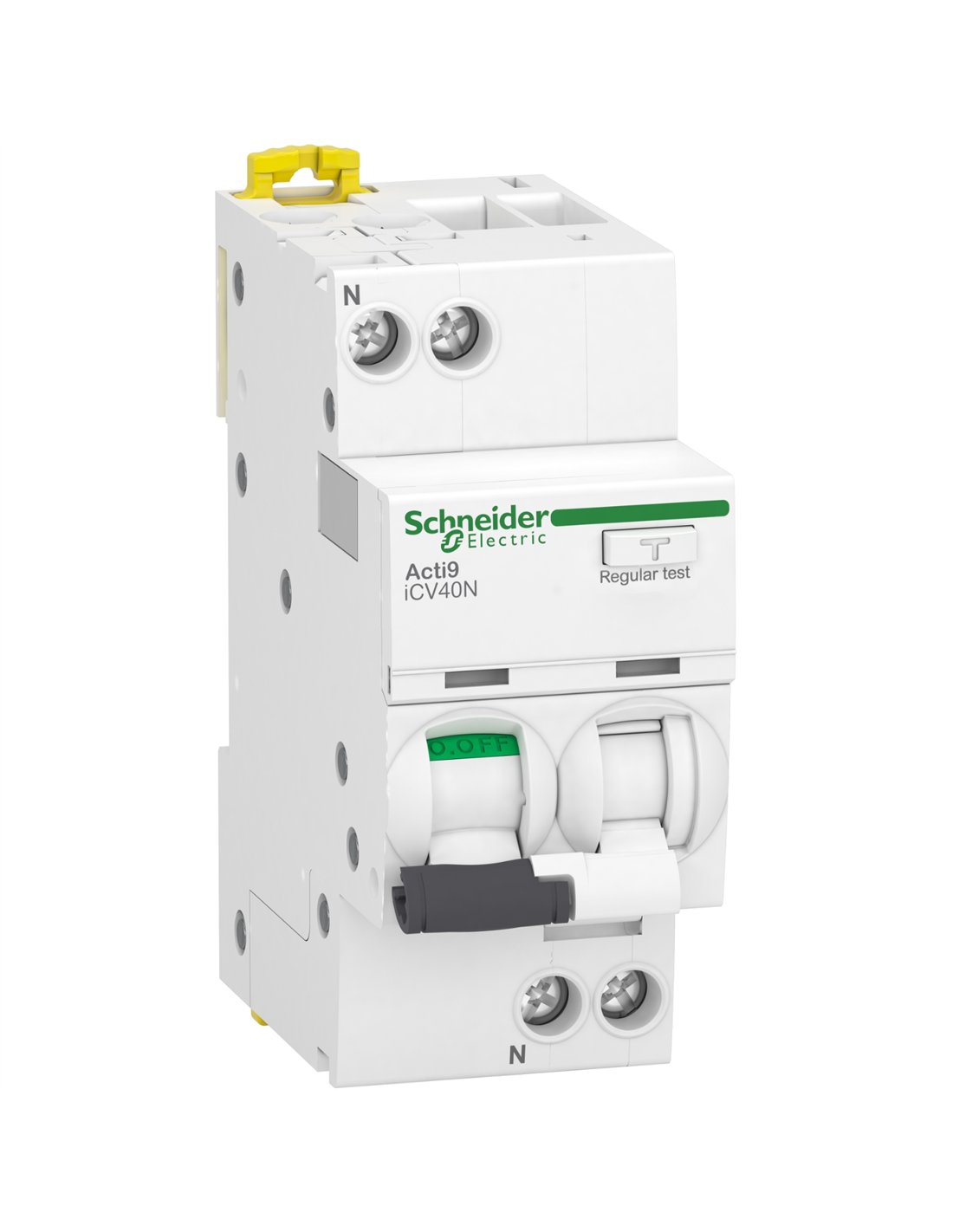

ACTI 9 32A 300mA AC differential switch with RCBO protection and 1 pole.

ACTI 9 32A 300mA AC differential switch with RCBO protection and 1 pole.

ACTI 9 32A 300mA AC differential switch with RCBO protection and 1 pole.

Reference IMPO A9DE7632

Available

€123.98

VAT included

The ACTI 9 iCV40N 1PN C 32A 300mA AC RCBO is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers a rated current of 32A and 300mA protection.

In stock 9 Items

Email address

Description

The ACTI 9 iCV40N 1PN C 32A 300mA AC RCBO is an electrical protection device designed to ensure safety in residential and industrial electrical installations. This combination residual current device (RCBO) offers effective protection against overloads and short circuits, as well as accurate leakage current detection, minimizing the risk of fires and electrocutions. Its compact design allows for easy integration into electrical panels, optimizing space and simplifying installation. With a rated current of 32A and a sensitivity of 300mA, this device is ideal for applications requiring a high level of safety and reliability.

Device Type: RCBO (Combined Residual Current Circuit Breaker)
Rated Current: 32A
Leakage Current: 300mA
Phases: 1PN (single-phase)
Overload Protection: Yes
Short-Circuit Protection: Yes
Residual Current Protection: Yes
Dimensions: Compact for easy installation
Standards: Complies with international safety standards
Applications: Residential and industrial

Product Details

EAN: 3606489444341
Reference: SCHNEIDER A9DE7632
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 9 Items

Reviews (0)

No reviews
