iC60 4P RCBO 32A 30mA A si

iC60 4P RCBO 32A 30mA A si

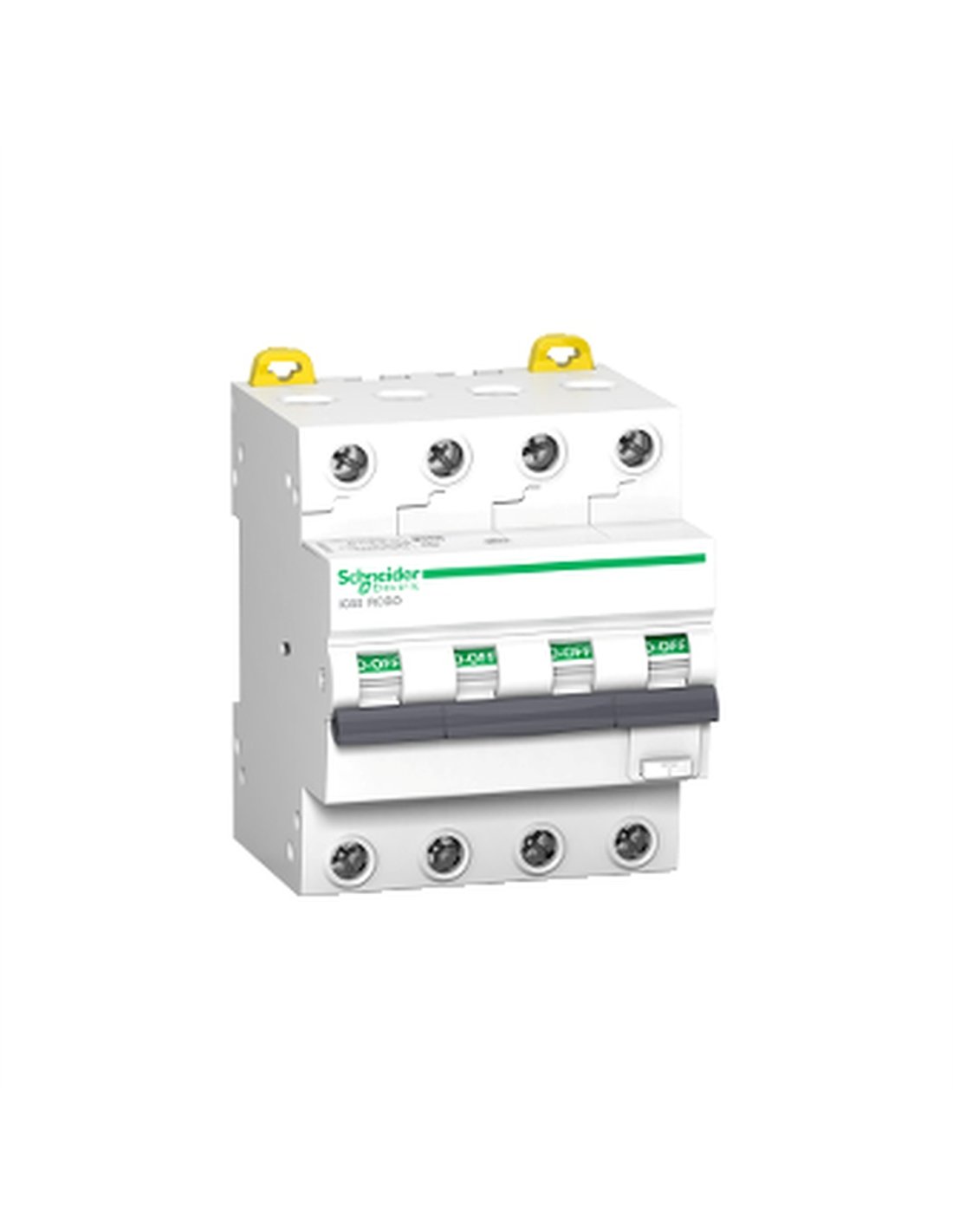

SCHNEIDER iC60 32A 30mA 4-pole type A residual current circuit breaker

Reference IMPO A9D77432

Available

€416.99

VAT included

The iC60 4P RCBO 32A 30mA is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers protection against overloads, short circuits, and current leakage.

In stock 10 Items

Email address

Description

The iC60 4P RCBO 32A 30mA is an electrical protection device designed to ensure safety in electrical installations. This combined residual current device (RCBO) offers a comprehensive solution by combining overload, short-circuit, and earth leakage protection functions in a single unit. Its compact design allows for easy integration into electrical panels, optimizing space and simplifying installation. With a rated current of 32A and a sensitivity of 30mA, this device is ideal for residential and industrial applications, providing a fast response to any electrical system anomaly.

Type: RCBO (Combined Residual Current Circuit Breaker)
Poles: 4P (four poles)
Rated current: 32A
Leakage current: 30mA
Rated voltage: 230/400V AC
Tripping curve: A (for resistive and capacitive loads)
Dimensions: 18 mm per pole
Installation: DIN rail mounting
Certifications: Complies with regulations IEC and EN
Operating temperature: -25°C to +60°C

Product Details

Rated current (A): 32 A
Sensitivity: 30 mA
Curve: C
EAN: 3606481157911
No. of poles: 4P
Reference: SCHNEIDER A9D77432
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items
