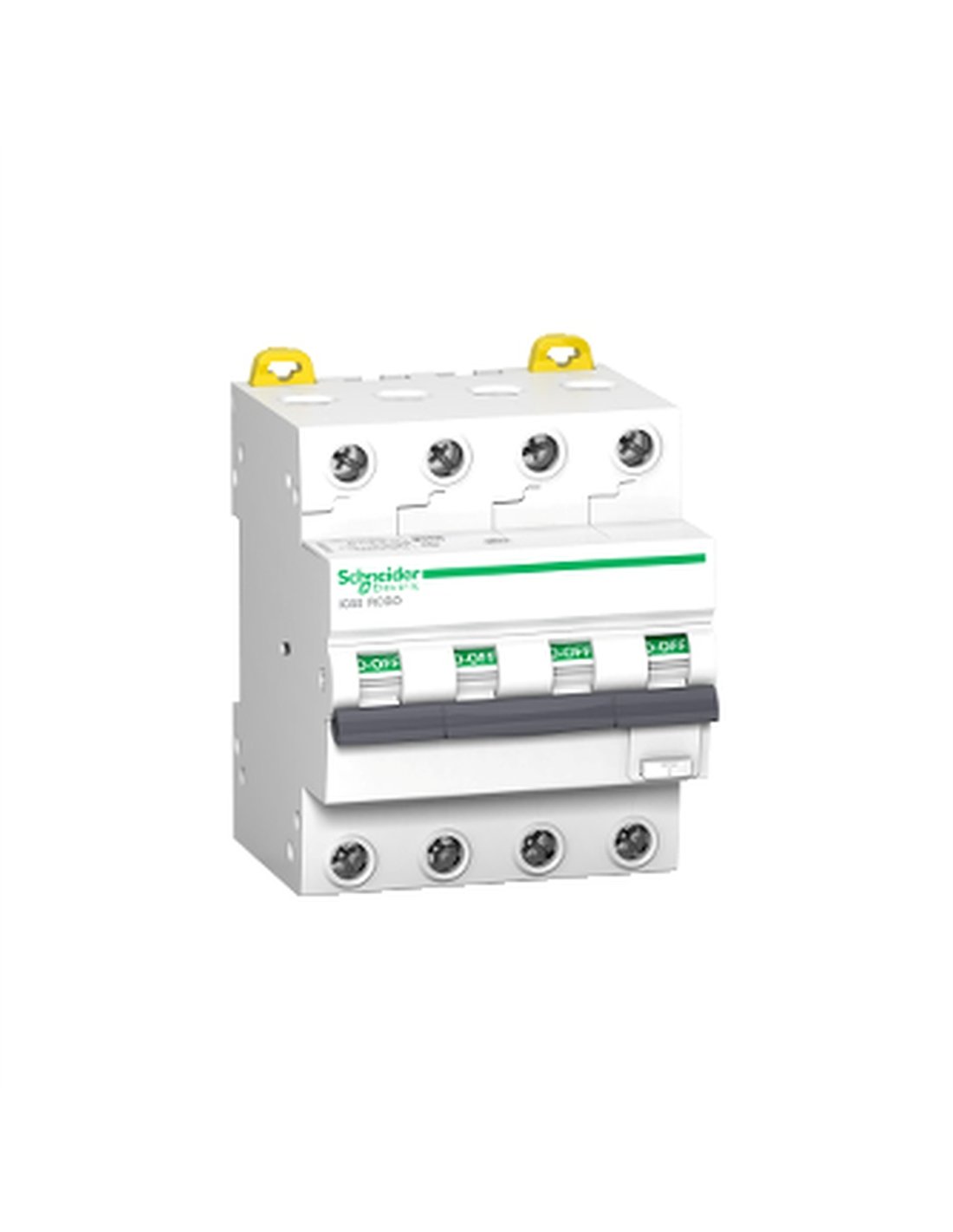

iC60 4P RCBO 10A 30mA AC
iC60 4P RCBO 10A 30mA AC

SCHNEIDER iC60 10A 30mA 4-pole AC type residual current circuit breaker

IMPO A9D57410
Available
€276.67
VAT included
The iC60 4P RCBO 10A 30mA AC is an electrical protection device that combines a circuit breaker and a residual current device (RCD). Designed to ensure safety in electrical installations, it offers protection against overloads, short circuits, and current leakage.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The iC60 4P RCBO 10A 30mA AC is an electrical protection device designed to ensure safety in residential and industrial electrical installations. This residual current device (RCD) combines the functions of a circuit breaker and an earth fault protection device, offering a comprehensive solution for electrical circuit protection. Its compact design allows for easy installation in electrical panels, while its 10A capacity and 30mA sensitivity ensure a fast response to overloads and short circuits, minimizing the risk of electrical accidents.

  • Type: RCBO (Residual Current Circuit Breaker with Overload Protection)
  • Poles: 4P (Four Poles)
  • Rated Current: 10A
  • Leakage Current: 30mA AC
  • Rated Voltage: 230/400V AC
  • Curve: C (for inductive and resistive loads)
  • Dimensions: 72mm wide (3 modules)
  • Installation: DIN rail mounting
  • Certifications: Complies with IEC and EN standards
  • Operating temperature: -25°C to +60°C

Product Details

Rated current (A)
10 A
Sensitivity
30 mA
Curve
C
EAN
3606481157706
No. of poles
4P
Reference
SCHNEIDER A9D57410
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
