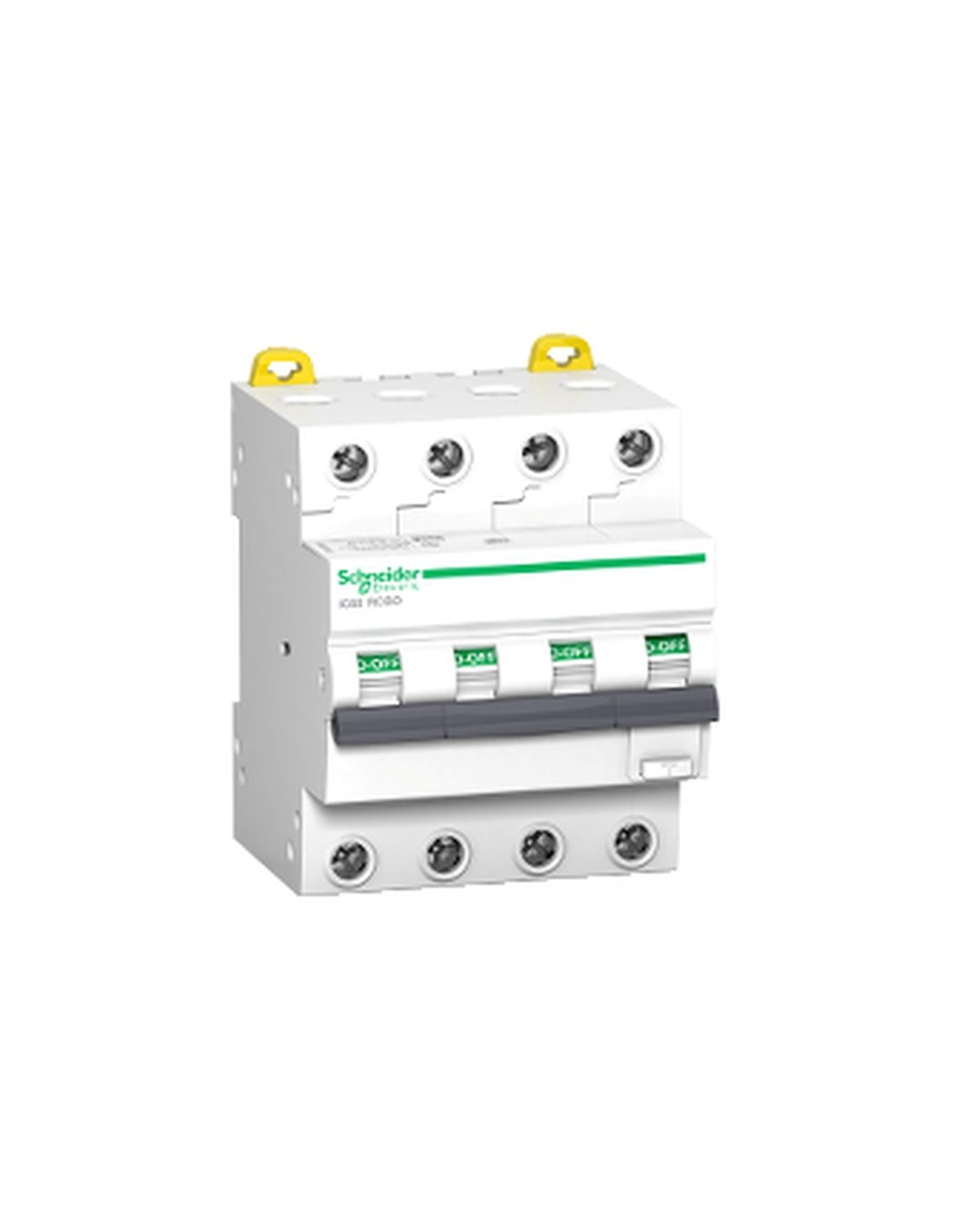

iC60 4P RCBO 16A 300mA AC

iC60 4P RCBO 16A 300mA AC

SCHNEIDER iC60 differential switch 16A 300mA 4 poles AC type.

Reference IMPO A9D55416

Available

€250.05

VAT included

The iC60 4P RCBO 16A 300mA AC is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers a rated current of 16A and a sensitivity of 300mA.

In stock 10 Items

Email address

Description

The iC60 4P RCBO 16A 300mA AC is an electrical protection device designed to ensure safety in electrical installations. This residual current device (RCD) combines the functions of a circuit breaker and an earth fault protection device, offering a comprehensive solution for electrical circuit protection. Its compact and efficient design allows for easy installation in electrical panels, while its 16A and 300mA capacity ensures a rapid response to overloads and short circuits, as well as the detection of current leakage. This product is ideal for residential and industrial applications, providing reliable and long-lasting protection.

Type: RCBO (Residual Current Circuit Breaker with Overload Protection)
Poles: 4P (Four Poles)
Rated Current: 16A
Leakage Current: 300mA AC
Rated Voltage: 230/400V AC
Tripping Curve: C
Dimensions: 72mm wide
Installation: DIN rail mounting
Certifications: Complies with IEC and EN standards
Operating Temperature: -25°C to +60°C

Product Details

Rated current (A): 16 A
Sensitivity: 300 mA
Curve: C
EAN: 3606481157768
No. of poles: 4P
Reference: SCHNEIDER A9D55416
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews

8 other products in the same category:

DIFERENCIAL 2 POLOS SOLERA 25A (RETRACTILADO)

Available

Differential

Solera 25A 2 Pole Differential (shrinkable) RCB2P2530

EDM 02860

Differential 2 Poles Solera 25A (shrink-wrapped) RCB2P2530 Current capacity: 25A Number of poles: 2 Type: Solera Differential protection Shrink-wrapped for greater safety

B.DIF SCHNEIDER VIGI NG125 4P 125A 300MA A INST ACC

B.DIF SCHNEIDER VIGI NG125 4P 125A 300MA A INST ACC 2

Available

Differential

Differential block VIGI NG125/125 4P 300mA class A

IMPO 19042

Differential block, Vigi NG125, 4P, 125A, 300mA. Product in accordance with UNE-EN 60947-2, annex B. Classes AC and A standard. They add the differential protection function to the NG125 circuit breakers. They are fixed to the right of the NG125. They come in three versions: Class AC: 30 or 300 mA instantaneous, up to 63 A. Class A: all fixed or...

VIGI C120 125A 4P 300 MA A ADAPTABLE RES

Available

Differential

Vigi Block VIGI 125A 4P 300mA adaptable with DIN rail mounting and IP20

IMPO A9N18579

The VIGI C120 is a 125A, 4-pole Vigi block designed for AC networks. With a ground fault sensitivity of 300 mA and instantaneous delay, it is ideal for residential and small commercial applications. DIN rail mounting.

INT.DIF Legrand TX3 2P 25A 30mA AC Inst Acc

INT.DIF Legrand TX3 2P 25A 30mA AC Inst Acc 2

Available

Differential

Differential switch TX3 2/25/30AC

LEGRAND 403032

The TX3 Differential is a bipolar differential switch with AC sensitivity of 30mA and a nominal current of 25A, designed to protect electrical circuits against earth leakage. This product complies with the UNE EN 61008-1 standard. Technical characteristics: Type of switch: differential TX3 Pole: bipolar Rated voltage: 230 V~ Sensitivity: 30mA Rated...

Vigi iC60 3P 63A 30mA AC

Available

Differential

Vigi ACTI 9 63A 30mA 3P IP20 block for earth leakage protection

IMPO A9V11363

The Vigi iC60 3P 63A 30mA AC from the Acti 9 range is a Vigi block with instantaneous earth leakage protection. Designed for AC networks, it features 3 poles, 30 mA sensitivity, and DIN rail mounting.

A9 iCV40N 3PN C 10A 300mA AC RCBO

Differential

SCHNEIDER iCV40N A9 10A 300mA 3-pole type C differential switch.

IMPO A9DE7710

The A9 iCV40N 3PN C 10A 300mA AC RCBO is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers protection against overloads and short circuits.

ACTI 9 iCV40N 1PN C 32A 30mA AC RCBO

Available

Differential

ACTI 9 32A 30mA 1 pole type C differential switch for electrical protection.

IMPO A9DE3632

The ACTI 9 iCV40N 1PN C 32A 30mA AC RCBO is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers protection against overloads and short circuits.

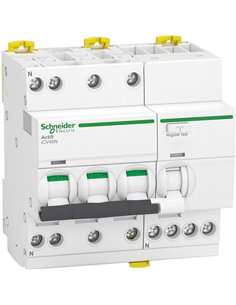

SCHNEIDER A9 32A 300mA 3-pole type C differential switch.
