ACTI9 40A 300mA type AC 1P+N differential block, DIN rail mounting, IP20
ACTI9 40A 300mA type AC 1P+N differential block, DIN rail mounting, IP20

ACTI9 40A 300mA type AC 1P+N differential block, DIN rail mounting, IP20

IMPO A9Y83640
Out of stock
€98.18
VAT included

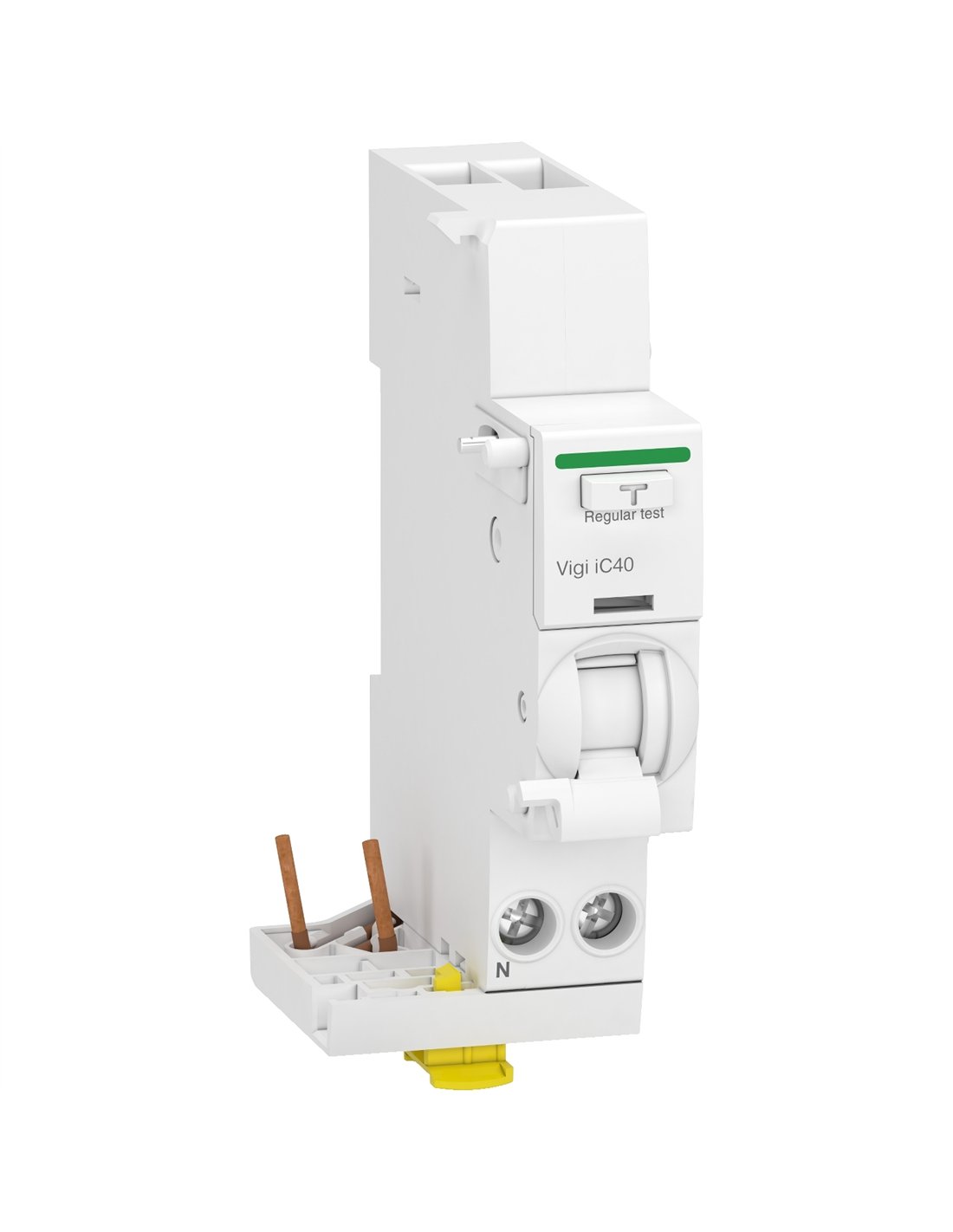

The ACTI 9 VIGI IC40 1PN 40A 300MA AC TYPE A is a residual current device (RCD) from the Acti9 range, designed for AC networks. With a sensitivity of 300 mA and a rated current of 40 A, it offers reliable protection in electrical installations.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The ACTI 9 VIGI IC40 1PN 40A 300MA AC TYPE A is an electrical protection device from the Acti9 range, designed to ensure safety in electrical installations. This Vigi iC40 residual current device is ideal for applications requiring high sensitivity and reliable performance. Its 1-pole plus neutral (1P+N) configuration and its neutral pole position on the left make it compatible with the Acti9 range, ensuring easy integration into existing systems.

With a rated current of 40 A and a differential sensitivity of 300 mA, this device offers instantaneous protection against earth faults, making it a safe choice for 230 V AC networks at 50/60 Hz frequencies. Its differential technology is voltage-independent, providing greater versatility in its use.

Technical features include:

  • Certifications: CE, OVE, IMQ
  • Installation: Snap-on DIN rail mounting
  • Dimensions: 95 mm high, 36 mm wide, 74 mm deep
  • Protection rating: IP20 (IP40 on the module)
  • Operating temperature Operating temperature: -5 to 60 °C
  • Mechanical endurance: 20,000 cycles
  • Electrical endurance: 10,000 cycles
  • Electrical connection: Cage-type terminal block for rigid and flexible cables
  • Installation altitude: 2000 m above sea level
  • Relative humidity: 55 °C to 95%

This device is a robust and efficient solution for the protection of electrical circuits, ensuring safe and reliable operation under various environmental conditions.

Product Details

EAN
3606481327437
Manufacturer
SCHNEIDER
Reference
SCHNEIDER A9Y83640
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
