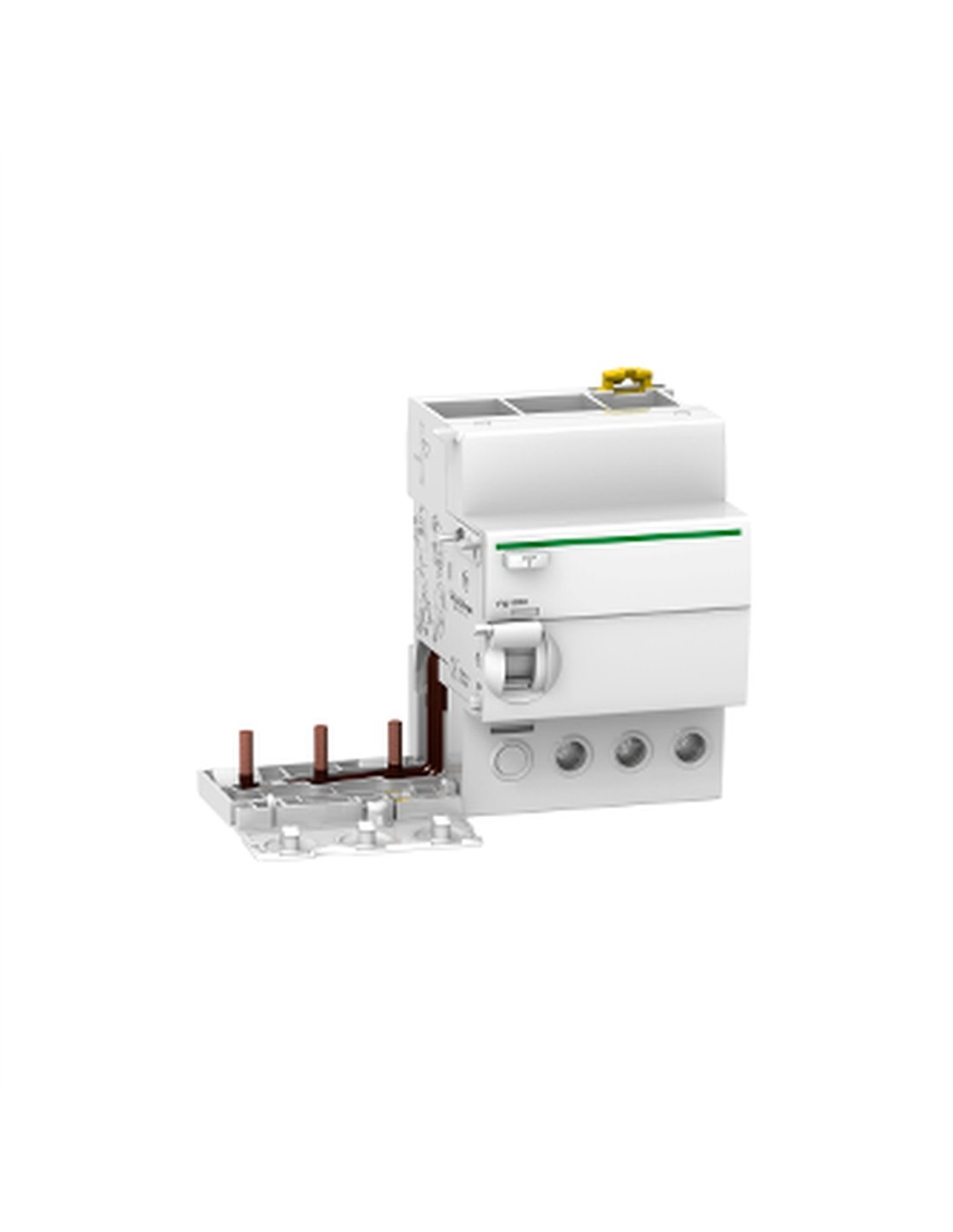

SCHNEIDER ACTI 9 63A 1000mA-S 3-pole, IP20, 400V AC, selective delay Vigi Block

The Vigi iC60 3P 63A 1000mA-S A-SI is a Vigi block from the Acti 9 range, designed to provide effective protection against earth leakage in electrical installations. This device, belonging to the Reflex iC60 series, is characterized by its high sensitivity and adaptability to various network configurations. With a nominal current of 63 A and an earth leakage sensitivity of 1000 mA, the Vigi iC60 guarantees a fast and selective response to hazardous situations, ensuring the safety of users and the integrity of connected equipment.

This Vigi block is suitable for alternating current (AC) networks with a nominal operating voltage of 400 V AC and a frequency of 50/60 Hz, complying with EN 61009-1 and IEC 61009-1 standards.

• Number of poles: 3P
• Protection delay: Selective
• Protection class: Type A-SI
• Operating temperature: -25…60 °C
• Degree of protection: IP20
• Dimensions: 91 mm (height) x 117 mm (width) x 73.5 mm (depth)
• Weight: 0.21 kg
• Connections: Bottom tunnel terminal
• Tightening torque: 3.5 Nm
• Compatibility: Acti 9 iC60 RCBO, Acti 9 SBI
