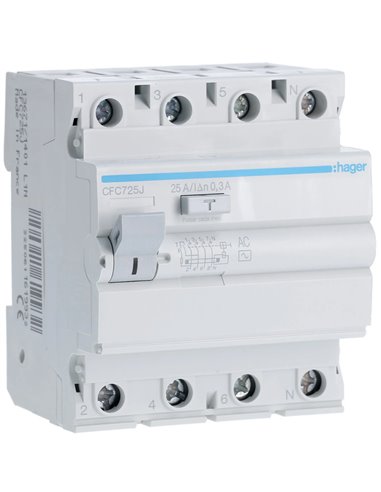

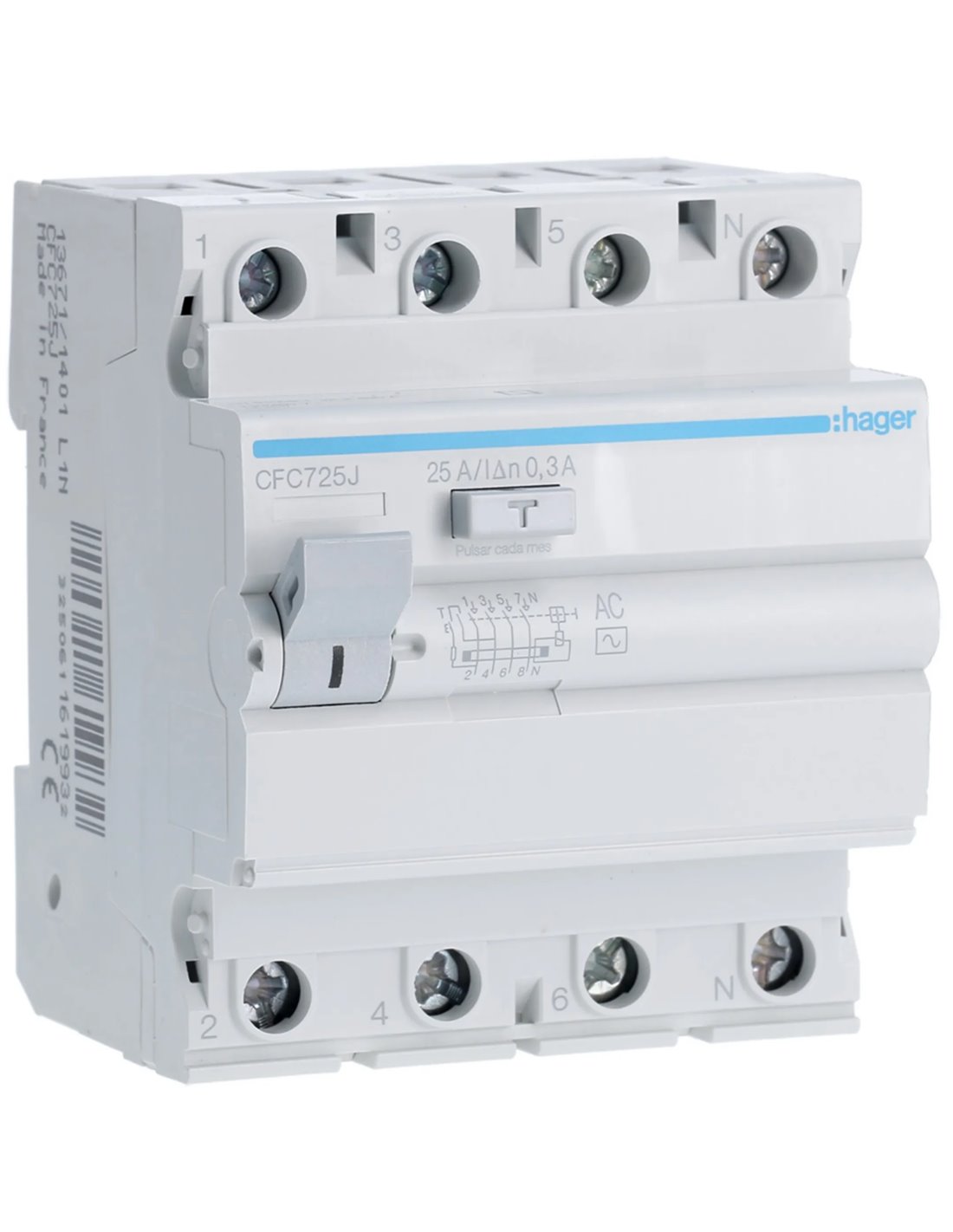

INT. DIFERENCIAL 4P 25A 300MA

INT. DIFERENCIAL 4P 25A 300MA

4-module differential switch (25A 300mA 230/400V) suitable for IP20 DIN rail 8,3x7x7cm

Reference HAGER CFC725J

Available

€714.76

VAT included

4-module residual current circuit breaker, ideal for electrical installations on DIN rail. With a nominal current of 25A and an adjustable differential of 300mA, this device guarantees effective protection in 230V AC systems. Its compact and functional design adapts to various applications, ensuring quality and safety.

Making and breaking capacity ldm: 0.63 kA
Conditional rated short-circuit current Inc: 6 kA according to EN61008-1
Rated insulation voltage (Ui): 500V
Rated voltage spike resistance (Uimp): 4000V
Dimensions: 8.3x7x7 cm
Operating temperature: -5 to 40°C
Connection section: 16mm² (flexible cable), 25mm² (rigid cable)
Protection degree: IP20
Brand: HAGER

In stock 24 Items

Email address

Description

The 4-module RCD is an essential device for electrical protection in building installations. With a rated current of 25A and a setting of 300mA, this switch is suitable for voltages of 230V AC. Its compact design allows for installation on DIN rails, and it has an IP20 protection rating, making it ideal for indoor environments. This product combines functionality and quality, offering a safe and efficient solution for electrical management.

Dimensions: 8.3 x 7 x 7 cm
Making and breaking capacity ldm: 0.63 kA
Conditional rated short-circuit current Inc according to EN61008-1: 6 kA
Rated insulation voltage (Ui): 500V
Rated voltage peak withstand (Uimp): 4000V
Connection section on flexible cable: 16mm²
Connection section on rigid cable: 25mm²
Operating temperature: -5 to 40°C
AC differential
Brand: HAGER
Available colours: Grey/Blue

Product Details

Frequency: 50
High: 8,3cm
Rated current (A): 18
22
25
Width: 7cm
Colour: Blue
Grey
Sensitivity: 300 mA
Measures: 8,3x7x7cm
Weight (kg): 0,23
Power (W): 2,6
Depth: 7cm
Protection: IP20
Reference: HAGER CFC725J
Nominal voltage (V): 230V
380V
440
500V
4000
Current type: AC
GPSR Safety warning: No
GPSR Manufacturer information: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR EU responsible person: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR e-mail manufacturer: [email protected]

In stock 24 Items
