MINICONT. K TRIP. 9A 220V 50/60HZ

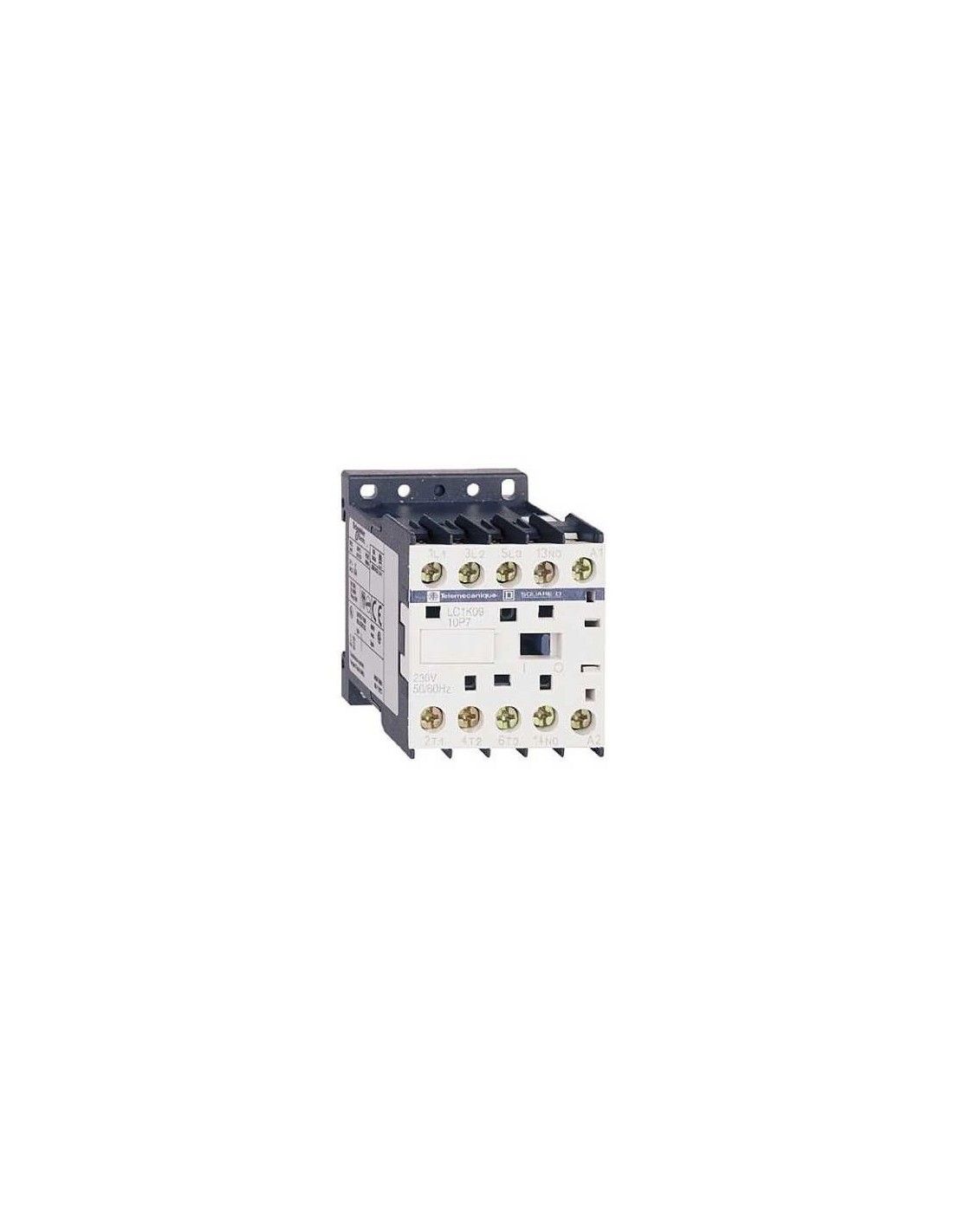

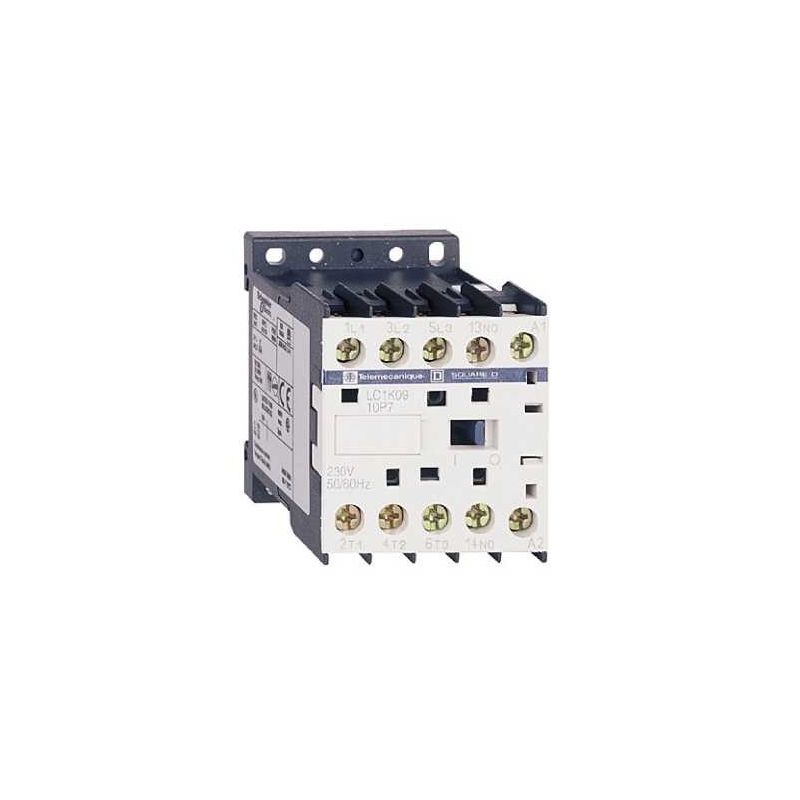

Mini contactor 9A 3P 220V AC 50-60Hz

MINICONT. K TRIP. 9A 220V 50/60HZ

Mini contactor 9A 3P 220V AC 50-60Hz

Mini contactor 9A 3P 220V AC 50-60Hz

Reference SCHNEIDER LC1K0910M7

Available

€54.92

VAT included

Mini contactor 3P AC-3 =440 V 9 A coil 220...230 V AC TeSys K. Contactor application Motor control Resistive load. Employment category AC-1/AC-3/AC-4. [Ie] rated operating current 9 A in = 440 V AC AC-3 for power circuit 20 A (= 50 °C) in = 440 V AC AC-1 for power circuit 16 A (= 70 °C) in 690 V AC AC-1 for power circuit. Motor power in kW 4 kW at 380...415 V AC 50/60 Hz 4 kW at 440 V AC 50/60 Hz 4 kW at 480 V AC 50/60 Hz 4 kW at 500...600 V AC 50/60 Hz 4 kW at 660...690 V AC 50/60 Hz 2.2 kW at 220...230 V AC 50/60 Hz. Control circuit type AC 50/60 Hz.

In stock 102 Items

Email address

Product Details

Rated current (A): 9
EAN: 3389110363876
Manufacturer: Schneider
Reference: SCHNEIDER LC1K0910M7
Nominal voltage (V): 220
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 102 Items
