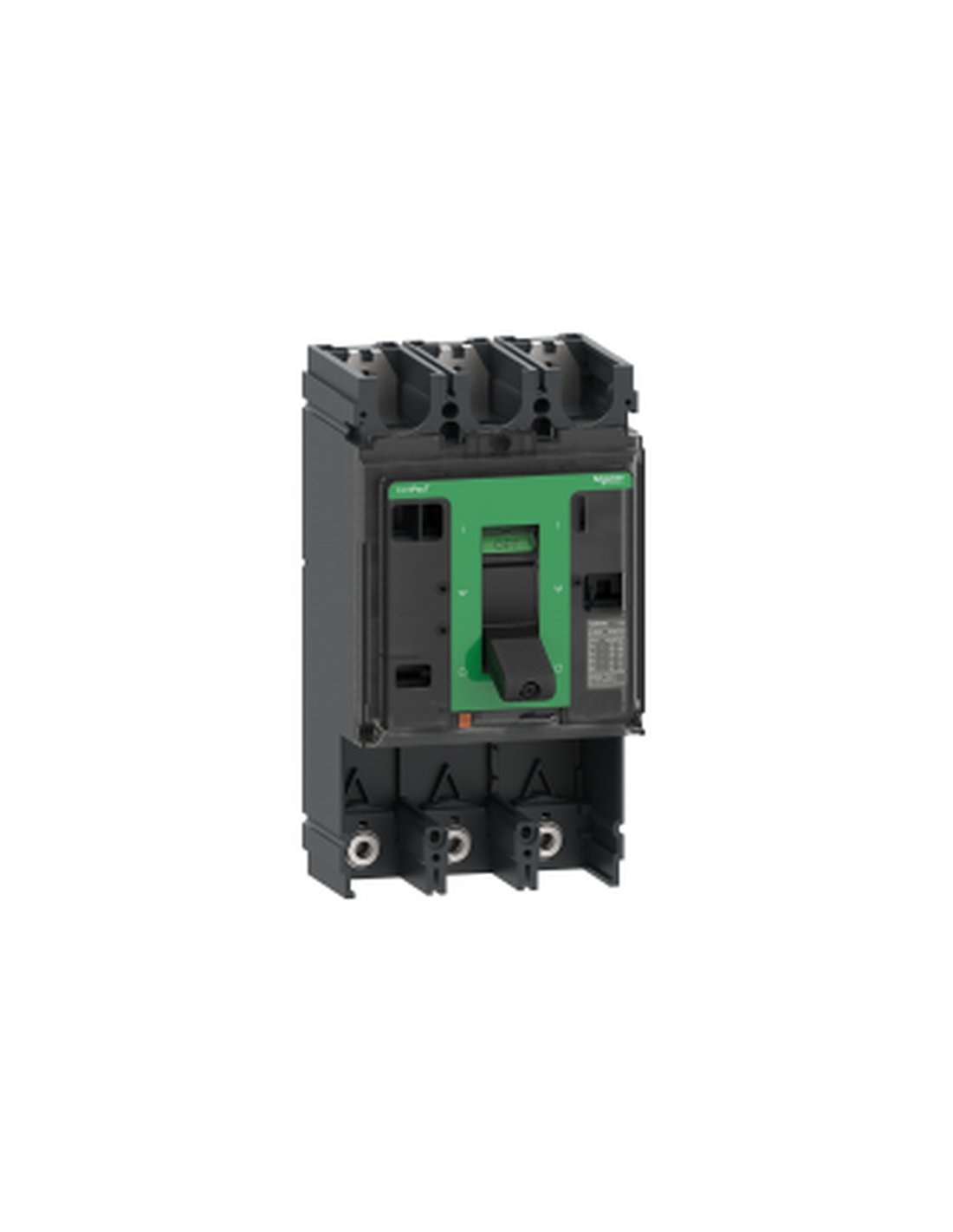

Bloque Corte NSX630H 70kA AC 3P 630A

Bloque Corte NSX630H 70kA AC 3P 630A

SCHNEIDER 70kA AC 3P 630A circuit breaker block for electrical protection.

Reference IMPO C63H3

Available

€1,790.30

VAT included

The NSX630H 70kA AC 3P 630A Circuit Breaker is an electrical protection device designed for three-phase systems. It offers a breaking capacity of 70 kA and a rated current of 630 A, ensuring safety and reliability in electrical installations.

In stock 10 Items

Order now and receive it...

11-05-2026 with MRW

between 11-05-2026 and 12-05-2026 with Correos

Subscribe To When In Stock

You have successfully subscribed to this product

Description

The NSX630H 70kA AC 3P 630A Circuit Breaker is an electrical protection device designed for industrial and commercial applications requiring a high level of safety and efficiency. This low-voltage circuit breaker offers a breaking capacity of 70 kA, ensuring a fast response to short circuits and overloads. Its compact and robust design allows for easy integration into medium- and low-voltage electrical systems, guaranteeing optimal performance under demanding conditions. With a rated current of 630A, this circuit breaker is ideal for protecting three-phase circuits, providing a reliable energy management solution.

Type: Low-voltage circuit breaker
Breaking capacity: 70 kA
Configuration: Three-phase (3P)
Rated current: 630A
Rated voltage: AC
Protection: Overload and short circuit
Installation: Easy integration into electrical panels
Standards: Complies with international safety standards
Dimensions: Compact to optimize space
Applications: Industrial and commercial

Product Details

Frequency: 50/60 Hz
Rated current (A): 630 A
EAN: 3606482002982
No. of poles: 3P
Reference: SCHNEIDER C63H3
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews
