SCHNEIDER NSX 100A 3P 16kA 690V AC Thermal-Magnetic Automatic Switch

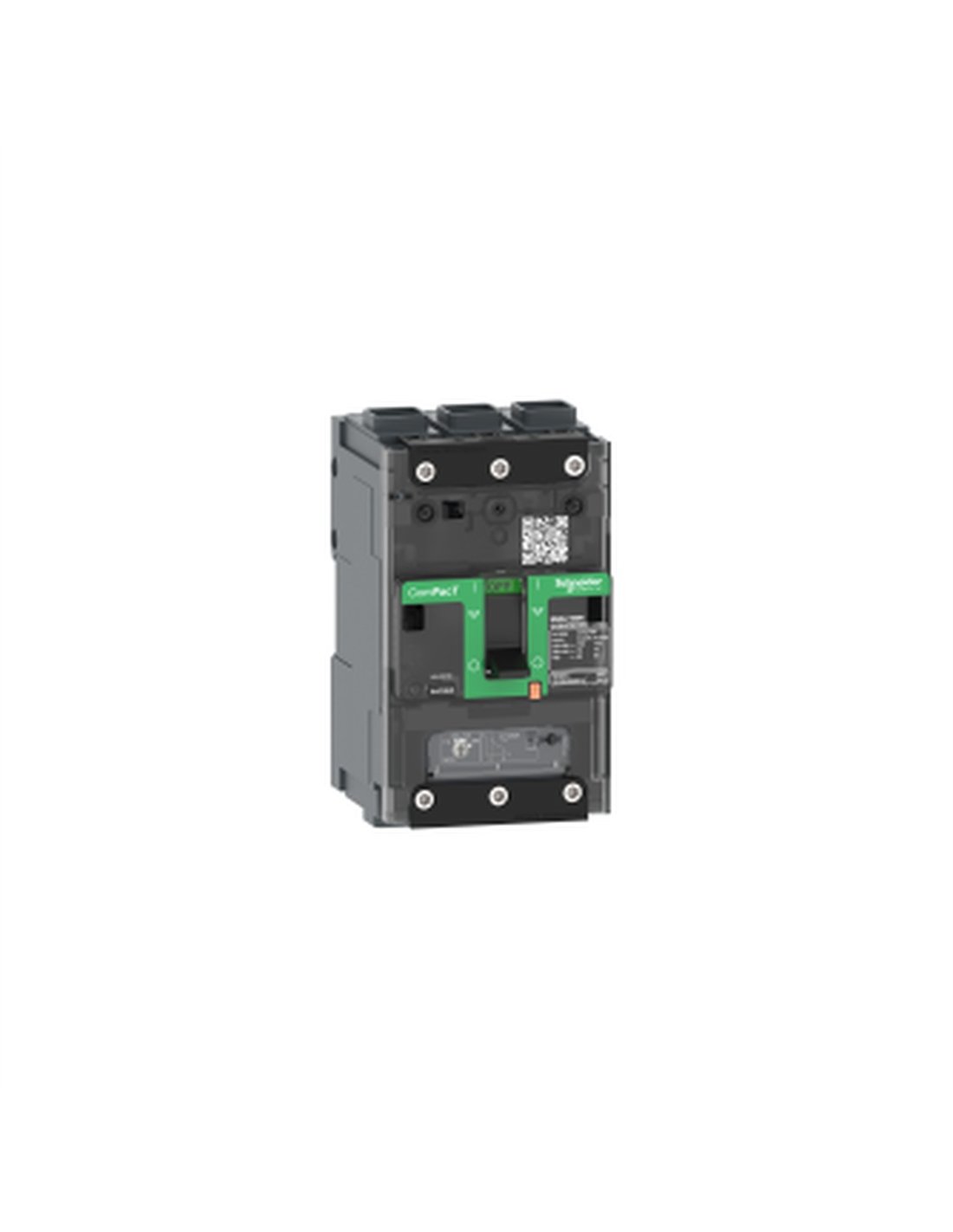

The NSXm100E 16kA AC 3P 100A TMD ELINK circuit breaker from the new generation ComPacT range is an advanced solution for electrical circuit protection. Designed for applications with currents above 0.1 A, this device offers a rated current of 100 A at 40 °C and is suitable for voltages up to 690 V AC on 50/60 Hz networks. Its thermal-magnetic trip technology ensures a fast and effective response to overloads and short circuits.

The NSXm100E features three protected poles (3R) and a breaking capacity of up to 25 kA at 220–240 V AC, 16 kA at 380–415 V AC, and 10 kA at 440 V AC, making it a reliable choice for various industrial applications.

Technical features include:

• Nominal insulation voltage: 800 V AC
• Mechanical durability: 20,000 cycles
• Protection rating: IP40
• Operating temperature: -25 to 70 °C
• Connections: Terminals for cables up to 95 mm²
• Power dissipation per pole: 8.77 W
• Dimensions: 81 mm (width) x 137 mm (height) x 80 mm (depth)
• Weight: 1.06 kg
• Color: Gray (RAL 7016)
• Pollution degree: 3

This switch is ideal for applications requiring high reliability and safety in electrical power management.
