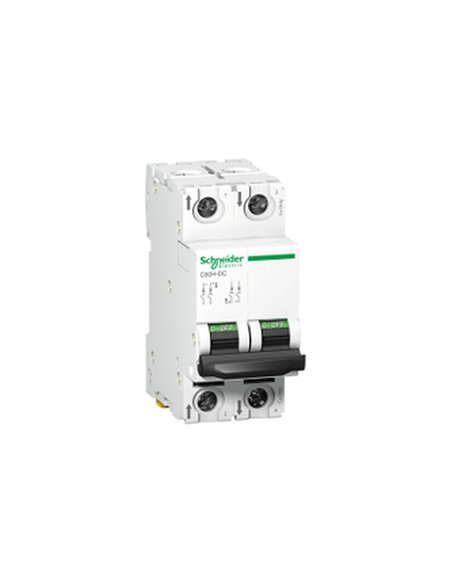

ACTI 9 50A 2P 500Vdc miniature thermal-magnetic circuit breaker

The C60H-DC 2P 50A C 500Vdc miniature circuit breaker, part of the Acti 9 range, is an advanced solution for DC circuit protection. Designed for applications requiring a current above 0.1 A, this device features two protected poles and a rated current of 50 A at 25 °C. Its thermal-magnetic trip technology ensures a fast and effective response to overloads and short circuits.

This model has a breaking capacity of up to 20 kA at 220 V and 250 V, and 6 kA at 500 V, complying with HB1 and EN>50 A standards. Furthermore, its rated operating voltage is 500 V, making it suitable for a variety of residential and commercial applications.

• Rated current: 50 A at 25 °C
• Number of poles: 2P
• Breaking capacity: 20 kA at 220/250 V, 6 kA at 500 V
• Rated operating voltage: 500 V DC
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 500 V
• Mounting: 35 mm symmetrical DIN rail
• Operating temperature: -25 to 70 °C
• Padlock ready in position O
• Contamination level: 3
