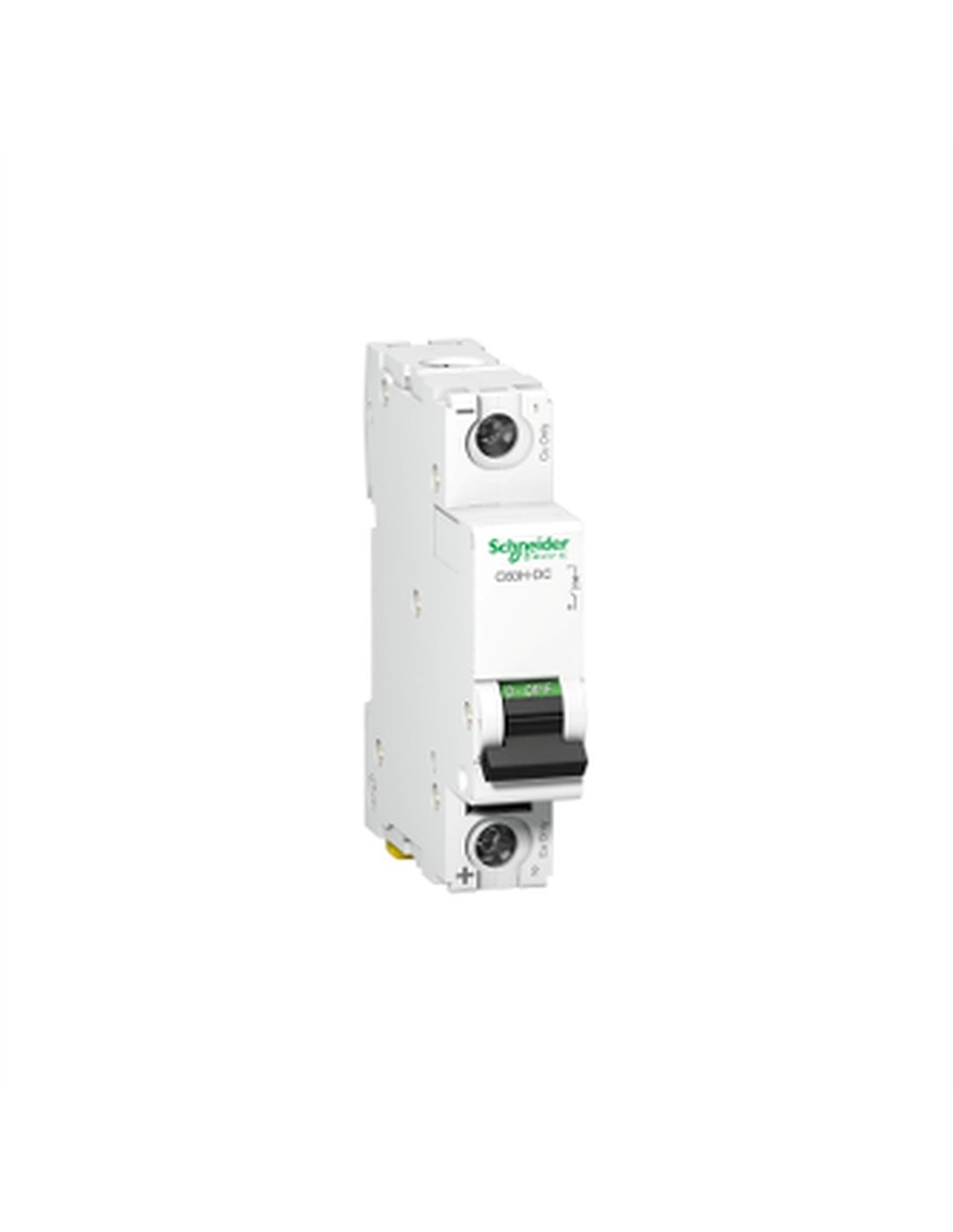

SCHNEIDER 6A 250VDC 1P 1P Miniature Circuit Breaker

The Acti 9 C60H-DC miniature circuit breaker is a reliable and efficient solution for DC circuit protection. Designed for applications requiring a current above 0.1 A, this device is part of Schneider Electric's C60 range, renowned for its quality and durability. With 1 pole and a rated current of 6 A at 25 °C, the C60H-DC is ideal for residential and small commercial environments.

This circuit breaker features thermal-magnetic trip technology and a C-curve rating, ensuring a fast response to overloads and short circuits. Its breaking capacity reaches up to 20 kA Icu at 110 V and 10 kA Icu at 220 V, ensuring robust protection under various operating conditions.

• Main frequency: 50/60 Hz
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 250 V
• Mounting: Fixed on 35 mm DIN rail
• Operating temperature: -25 to 70 °C
• Peak voltage resistance: 6 kV
• Padlock ready in position O
• Contamination degree: 3
• Weight: 0.128 kg
• Color: White
