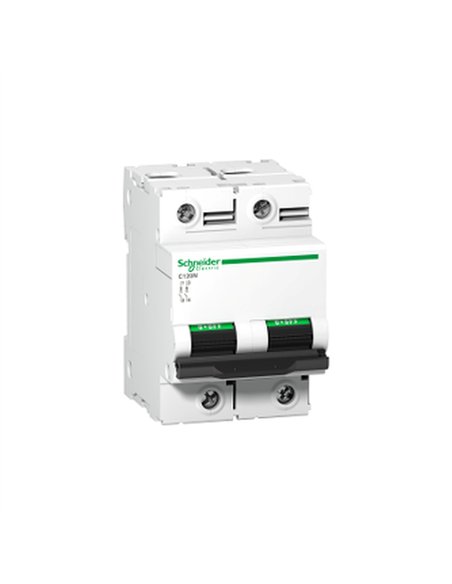

The Dardo Plus C120N miniature circuit breaker, part of the Acti 9 series, is an advanced solution for protecting electrical circuits in residential and small commercial applications. Designed to handle currents above 0.1 A, this device features two poles (2P) and a rated current of 63 A at 30 °C, making it a reliable choice for various electrical installations. The C120N utilizes thermal-magnetic tripping technology, ensuring a fast response to overloads and short circuits. Its breaking capacity reaches up to 10,000 A, complying with EN/IEC 60898-1 standards, thus ensuring a high level of safety and reliability. Furthermore, its design allows for easy mounting on a symmetrical 35 mm DIN rail, facilitating its integration into electrical panels.
Key features include:
- Main frequency: 50/60 Hz
- Nominal operating voltage: 380...415 V AC
- Electrical durability: 10,000 cycles
- Protection rating: IP20
- Operating temperature: -25…70 °C
- Maximum operating altitude: 2000 m
- Connections: Tunnel-type terminals
- Neutral position: Left
- Color: White
- Weight: 0.41 kg
The C120N is a robust and efficient option to ensure electrical safety in your environment.
