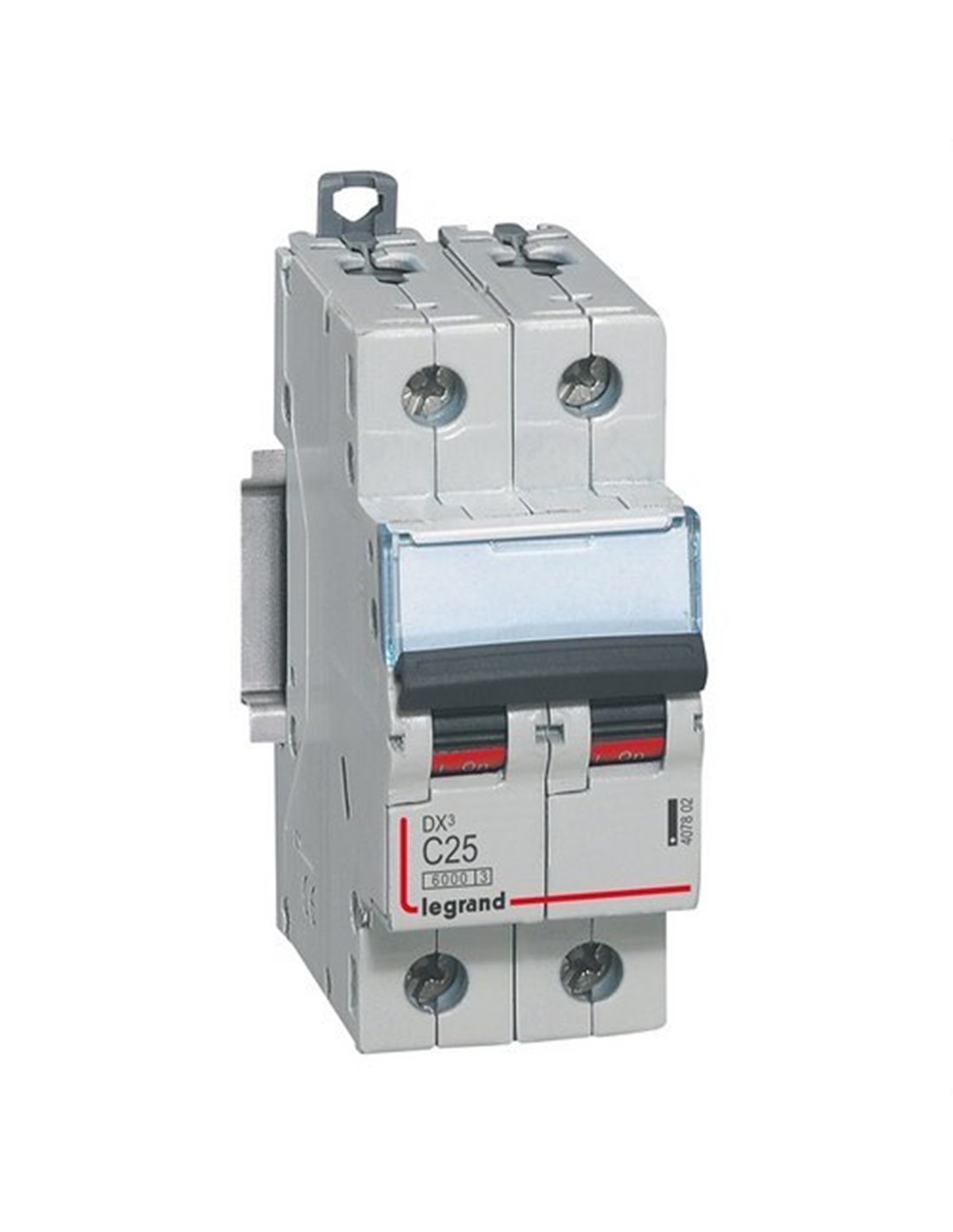

Circuit breaker DX3 6/10kA-C 2P 25A

The DX3 6/10KA-C 2-pole 25A circuit breaker is a 230/400V~ bipolar circuit breaker with C curve and a nominal current of 25A. It is part of the DX3 family of circuit breakers, which includes circuit breakers from 1A to 63A and breaking capacity of 10 kA. It complies with IEC 60898-1 and IEC 60947-2 standards and has a terminal capacity of 25 mm² flexible/35 mm² rigid. It also has a built-in label holder and supports connection with unipolar and multipolar combs. It can be equipped with differential blocks, motorized controls and DX³ command and signaling auxiliaries. Here are some additional technical features:

• Number of modules: 2.
• Available curves: C, B and D.
• Breaking capacity: 6000A .
• Products with N mark (except 1P+N 2 modules and curve B).
