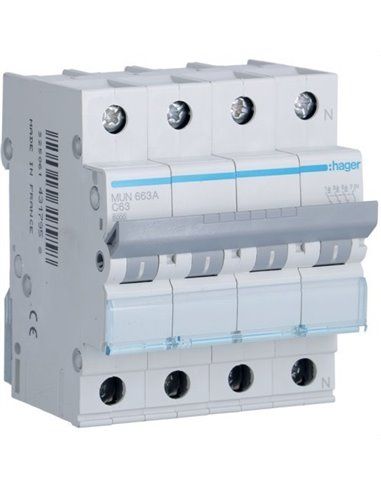

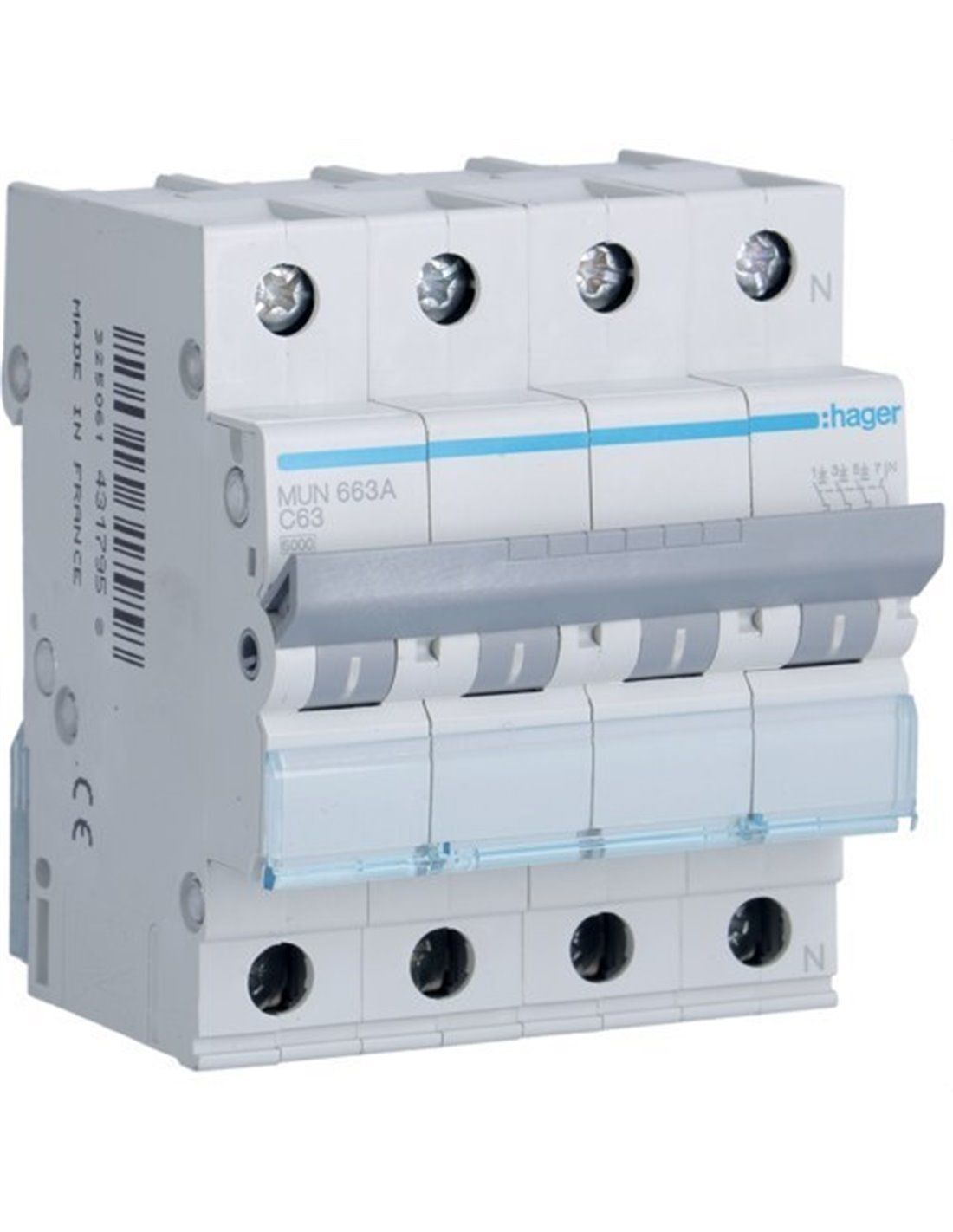

HAGER MUN663A | Circuit breaker 3P+N 63A curve-C 6kA

HAGER MUN663A | Circuit breaker 3P+N 63A curve-C 6kA

HAGER MUN663A | Circuit breaker 3P+N 63A curve-C 6kA

Reference HAGER MUN663A

Out of stock

€177.06

VAT included

3P+N magneto-thermal automatic switch with a nominal current of 63A. This curve C accessory has a voltage of 230/400V AC 50/60Hz and a breaking capacity of 6kA. Thus, the switch with a tightening torque of 2.8Nm has dimensions of 83x70x70mm. This device is characterized by maintaining the IP20 protection degree and an operating temperature of -25 to 60°C. In addition, the MU series offers a variety of products with innovative and timeless designs focused on functionality. Likewise, the range offers the switch with different technical characteristics.

Email address

Product Details

Rated current (A): 63
Curve: C
EAN: 3250614317958
Manufacturer: HAGER
No. of poles: 3P+N
Reference: HAGER MUN663A
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR EU responsible person: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR e-mail manufacturer: [email protected]

Reviews (0)

No reviews
