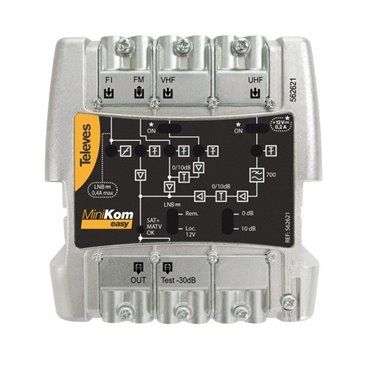

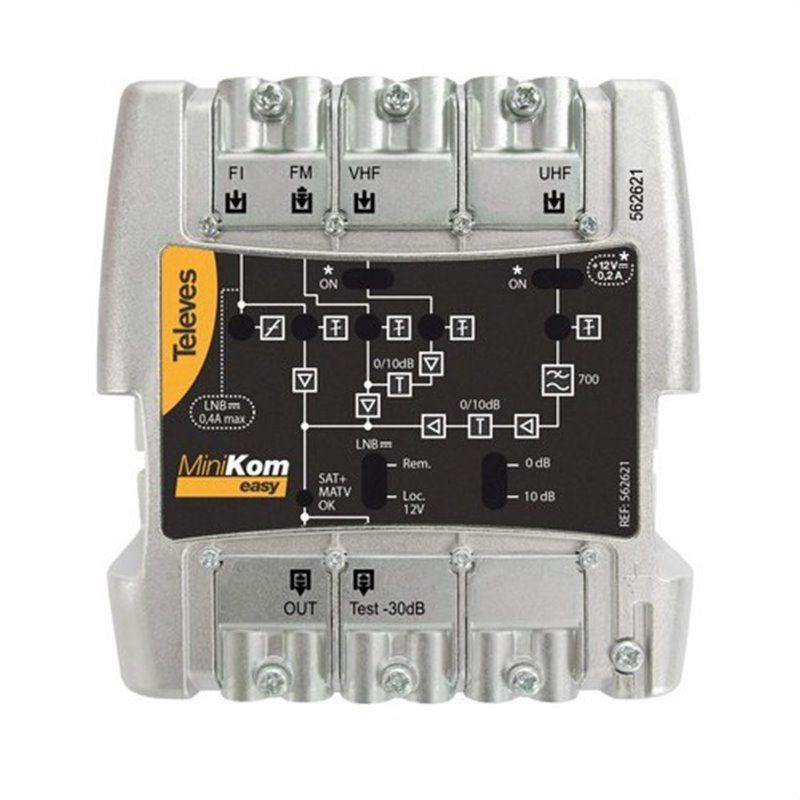

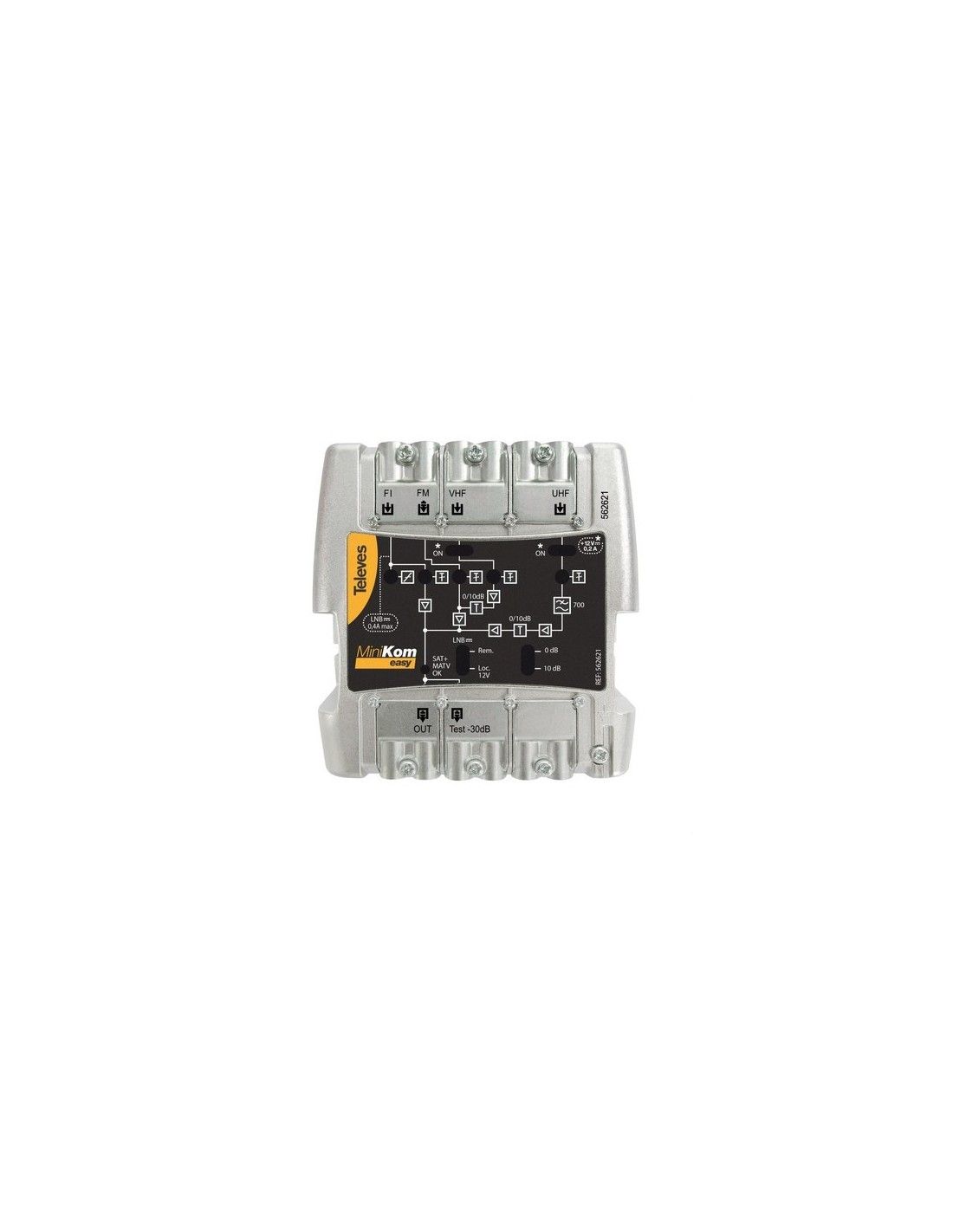

Amplifier MINIKOM 4E/1S EasyF FM-VU-FI

Central broadband MiniKom EasyF. 4 inputs: FM-VHF-UHF-FI. Configurable headend amplifier for SMATV systems with separate amplification that guarantees the absence of intermodulation between inputs. It consists of 4 inputs: FM-VHF-UHF-FI, the VHF and UHF ones have two selectable gain margins while the FM input has a single amplifier stage. In the IF stage, it incorporates a switch for the selection of the LNB power supply in local mode (through the source itself) or remotely (through an external STB). It incorporates anti-LTE700 filtering and a signal indicator LED at the output for the immediate detection of network failures. Very compact size (103x103x 50mm). LEDs indicating the existence of signal in output and power supply. Gain configurable by means of a switch (high/low) and high output level. Two amplification stages for TV bands. Switching power supply that guarantees low consumption. EasyF connection system. High armor chassis, made of Zamak.
