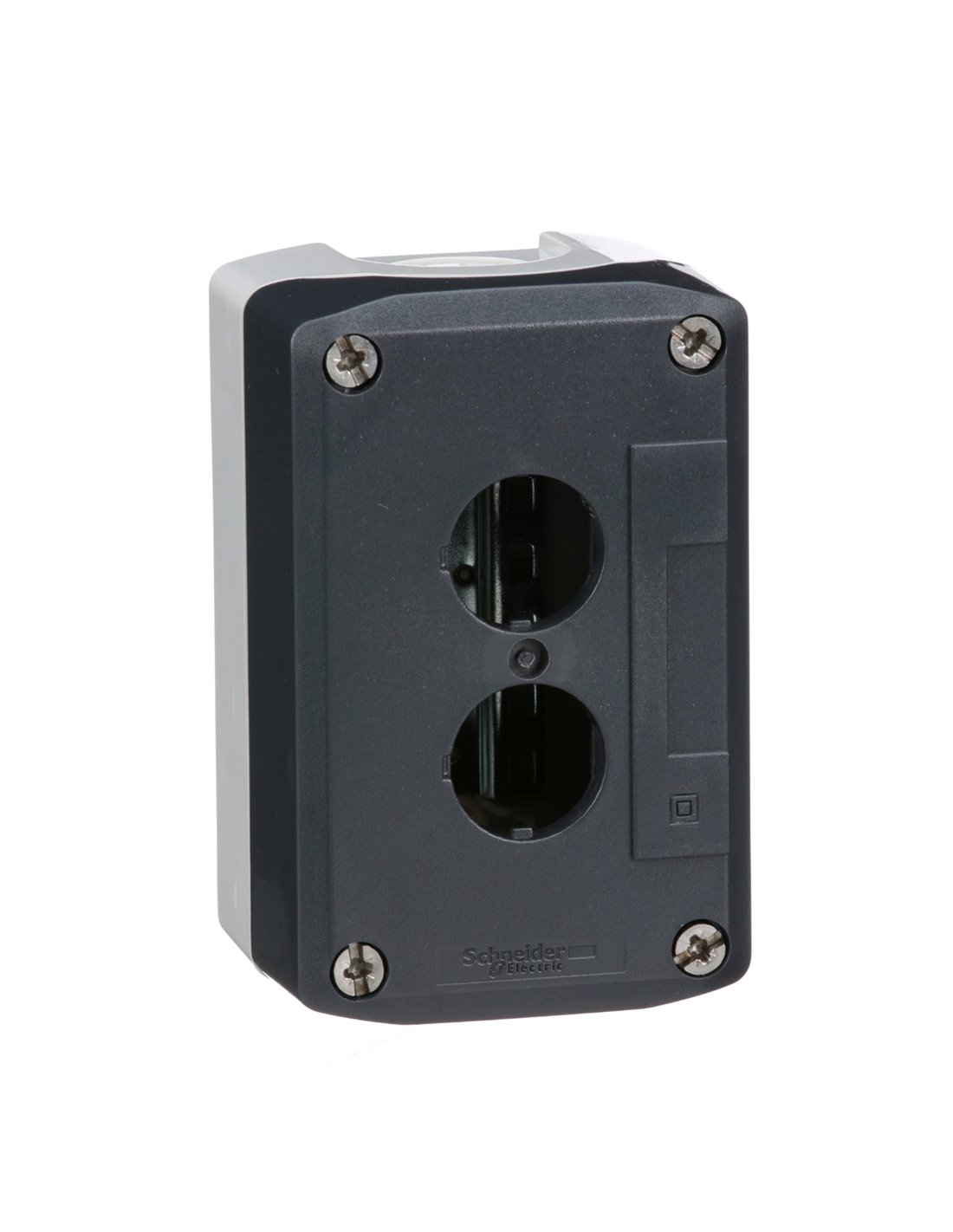

HARMONY XALD IP66 empty box for push button ø 22 mm, 2 holes, dark grey polycarbonate

IMPO XALD02H7
Available
€22.66
VAT included
Empty polycarbonate enclosure for 22 mm pushbuttons, with a dark gray cover and two cable entry holes. Designed for signaling and control units, it offers a high degree of protection (IP66, IP67, and IP69K), suitable for demanding environments and operating temperatures from -40 to 70 °C.
6 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Harmony XALD empty control station is a component designed for signaling and control units with a diameter of 22 mm. Its robust construction and functional design make it a versatile option for various industrial applications.

  • Material: High-strength polycarbonate.
  • Base color: Light gray (RAL 7035).
  • Lid color: Dark gray (RAL 7016).
  • Number of holes: 2 mounting holes.
  • Cable entry: 2 pullers with a clamping capacity of 14 mm.
  • Protection rating: IP66, IP67 and IP69K, in accordance with IEC 60529 and JIS C8201-1.
  • High-pressure wash resistance: 7,000,000 Pa at 55 °C.
  • Operating temperature: -40 to 70 °C.
  • Mounting: Rear and front.
  • Certifications: UL, CSA, compliant with various international standards.

Product Details

EAN
3389110114935
Reference
IMPO XALD02H7
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
