HARMONY XB5 Illuminated Emergency Stop Pushbutton IP66 230-240V 2 Buttons 22 mm

IMPO XB5AW73731M5
Available
€54.84
VAT included

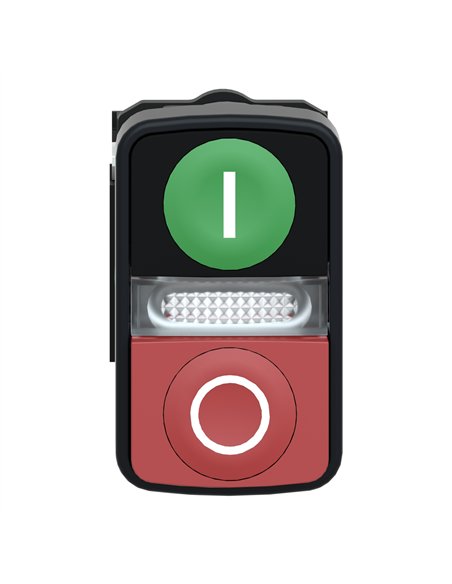

The Harmony XB5 modular pushbutton features two illuminated actuators, one green and one red, and a white indicator light. Its design allows for easy installation on 22 mm panels, offering an intuitive interface for machine control. It is suitable for demanding environments with IP66 protection.
10 Items

Order now and receive it...

08-05-2026  with  MRW

between 08-05-2026 and 11-05-2026  with  Correos

Description

The Harmony XB5 modular two-actuator pushbutton is a device designed to provide an efficient and safe control interface in industrial environments. With a robust and functional design, this pushbutton features a green button and a red button, as well as a white indicator, facilitating the identification of the on and off functions. Its spring-return mechanism ensures a quick and precise response with every action.

  • Product range: Harmony XB5
  • Type: Illuminated emergency stop push button
  • Bezel material: Dark gray plastic
  • Mounting diameter: 22 mm
  • Operator type: Spring return
  • Contact type and composition: 1 NO + 1 NC
  • Connections: Screw terminals and spring terminals
  • Light source: Integrated and protected LED
  • Supply voltage: 230...240 V AC 50/60 Hz
  • Protection rating: IP66, IP69K
  • Mechanical durability: 1,000,000 cycles
  • Operating temperature: -40…70 °C
  • Vibration resistance: 5 gn (f= 2…500 Hz)

Product Details

EAN
3389119043564
Reference
IMPO XB5AW73731M5
10 Items
