Mando elec. T400/630 110-130V CC NSX400/
Mando elec. T400/630 110-130V CC NSX400/

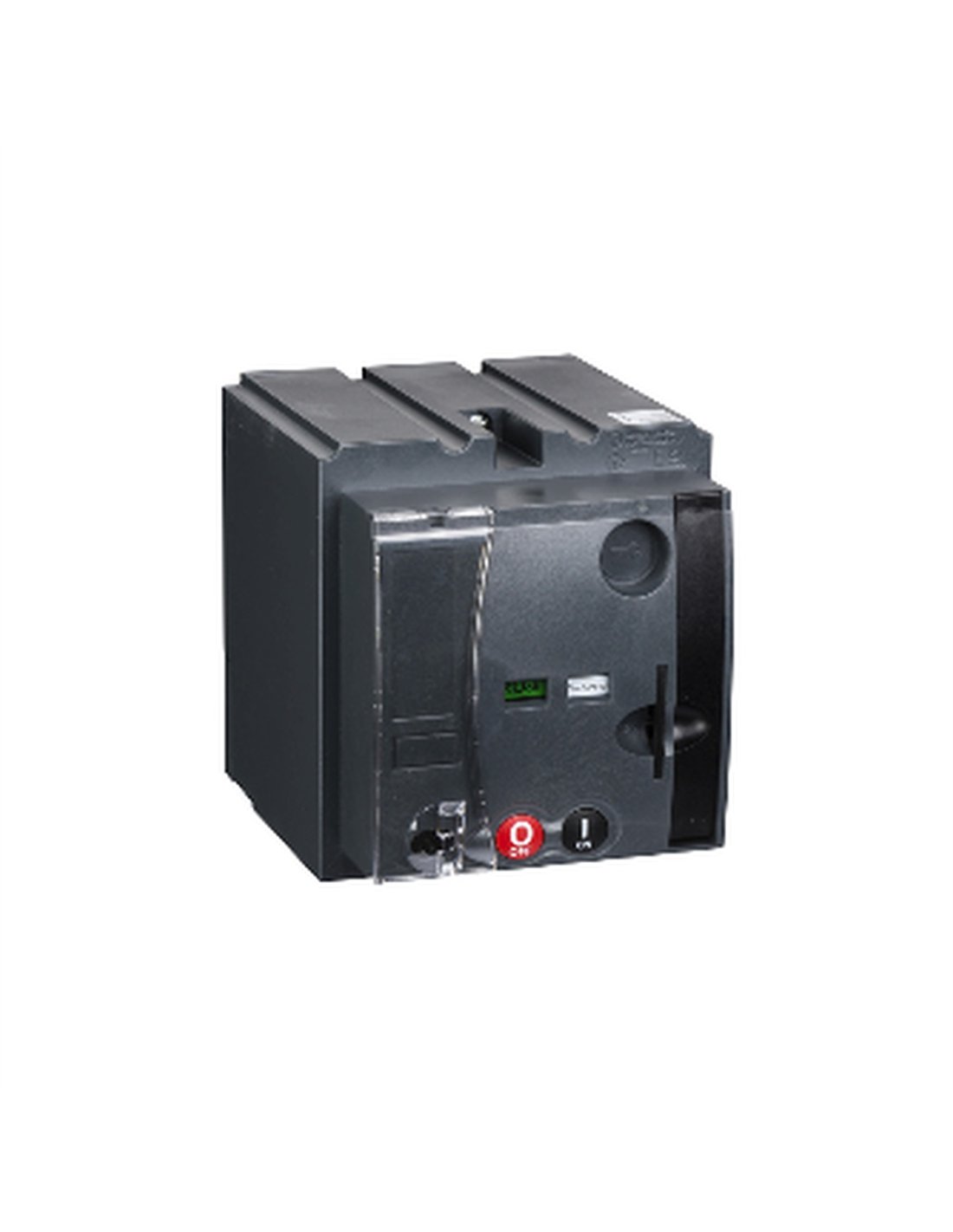

COMPACT NSX400 110-130V DC 630A electric control, fixed mounting and 500 VA maximum power

IMPO LV432645
Available
€1,061.53
VAT included
The T400/630 electric controller, part of the ComPacT NSX400 range, is designed for industrial applications requiring efficient energy control. It operates within a 110 to 130 V DC range and is compatible with multiple products, offering a robust solution for managing high-capacity electrical circuits.
5 Items

Description

The T400/630 electric control is a control device designed for industrial applications that require efficient and safe power management. It belongs to the new generation ComPacT NSX400...630 range, offering a robust and reliable solution for managing electrical circuits.

  • Product range: New generation ComPacT NSX400...630
  • Product type: Electrical control
  • Application: Automatic spring charging
  • Compatibility: NSX500, NSXm, NSX400, NSX630, Micrologic 7, PowerPact Multistandard, EasyPact CVS630, EasyPact D3N
  • Control circuit voltage: 110...130 V DC
  • Mounting type: Fixed
  • Rated current: 400 A and 630 A
  • Control signal type: Maintained and pulsed
  • Response time: <700 ms in open area illumination, <80 ms in closed loop mode
  • Maximum operating frequency: 4 per minute
  • Maximum power consumption: 500 VA for locking and unlocking
  • Locking options: 1 to 3 padlocks from Ø 5 to Ø 8, padlock in OFF position

Product Details

EAN
3606480020216
Reference
IMPO LV432645
5 Items

Reviews (0)

No reviews
