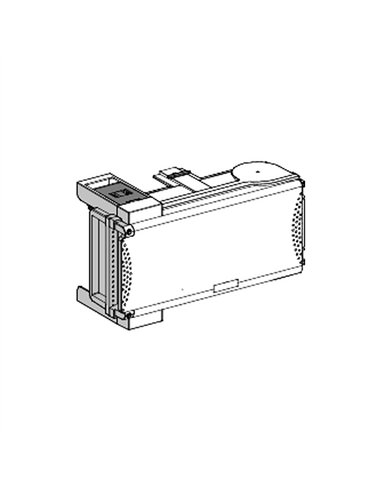

COFRET TRI+N+PE, 50 A , FUSIBLE 14X51
COFRET TRI+N+PE, 50 A , FUSIBLE 14X51

COFRET 50 A branch unit, IP55, 356 mm wide, white plastic, 3L+N+PE

IMPO KSB50SF4
Available
€191.30
VAT included
The Cofret TRI+N+PE is a branch circuit unit designed for medium-power distribution in electrical systems. Its robust construction and compatibility with Canalis KT and KS trunking make it ideal for industrial applications, guaranteeing safe and efficient operation within a voltage range of 230 to 690 V.
10 Items

Description

The COFRET TRI+N+PE is a branch circuit unit designed for medium-power distribution, offering an efficient and safe solution in electrical systems. This device is part of the Canalis range, guaranteeing compatibility with prefabricated KT and KS type conduits. Its robust design and advanced functionality make it a reliable choice for various industrial applications.

  • Rated operating current: 50 A at 35 °C
  • Rated operating voltage: 230...690 V, depending on the protective device
  • Peak voltage withstand: 6.8 kV
  • Rated insulation voltage: 500 V, depending on the protective device
  • Main frequency: 50/60 Hz
  • Mounting method: Fixed polarity connection (3L+N+PE)
  • Protection rating: IP55
  • Body material: Plastic
  • Dimensions: 356 mm wide, 103 mm deep, 202 mm high
  • Weight: 2.4 kg

Product Details

EAN
3606480006050
Reference
IMPO KSB50SF4
10 Items

Reviews (0)

No reviews
