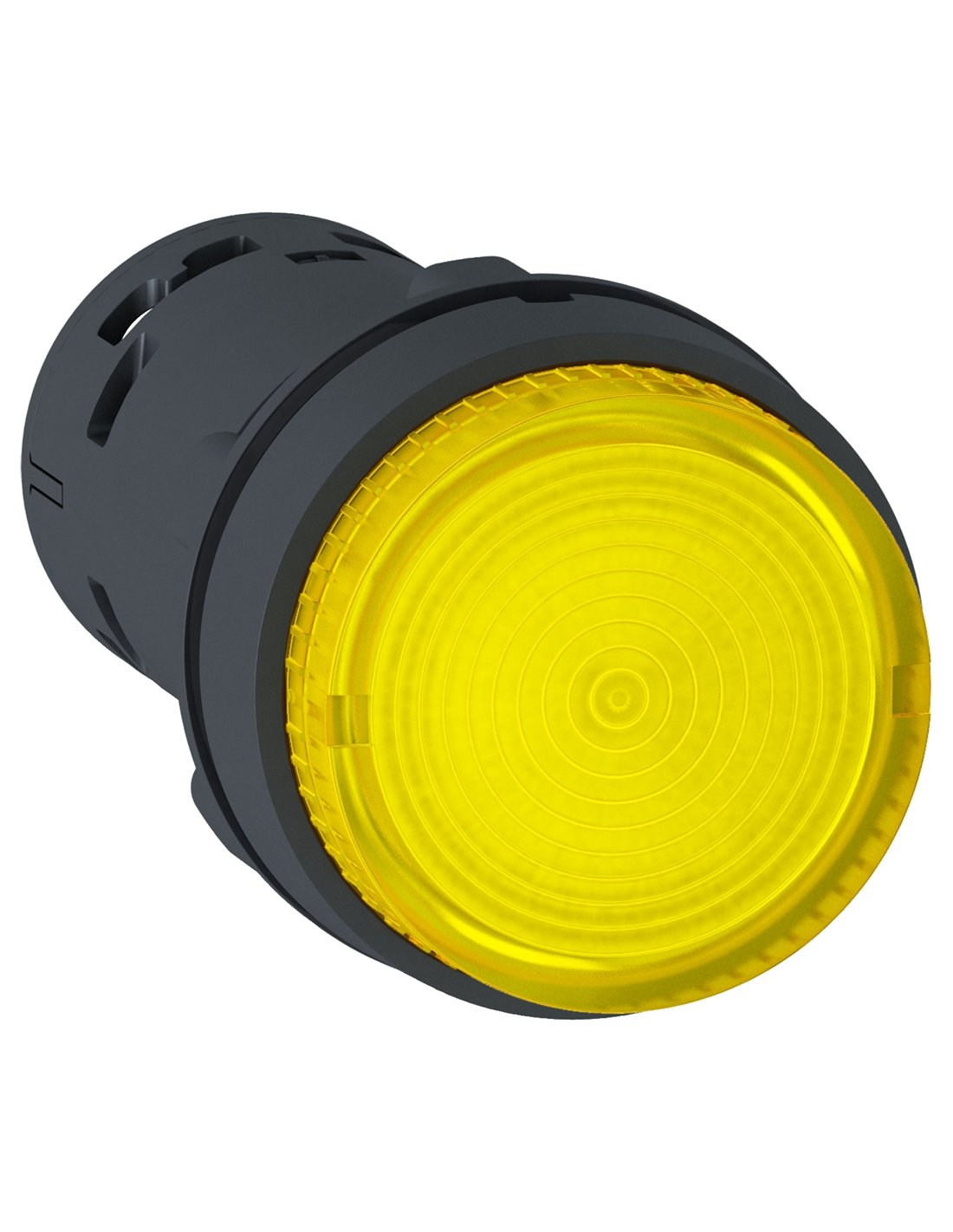

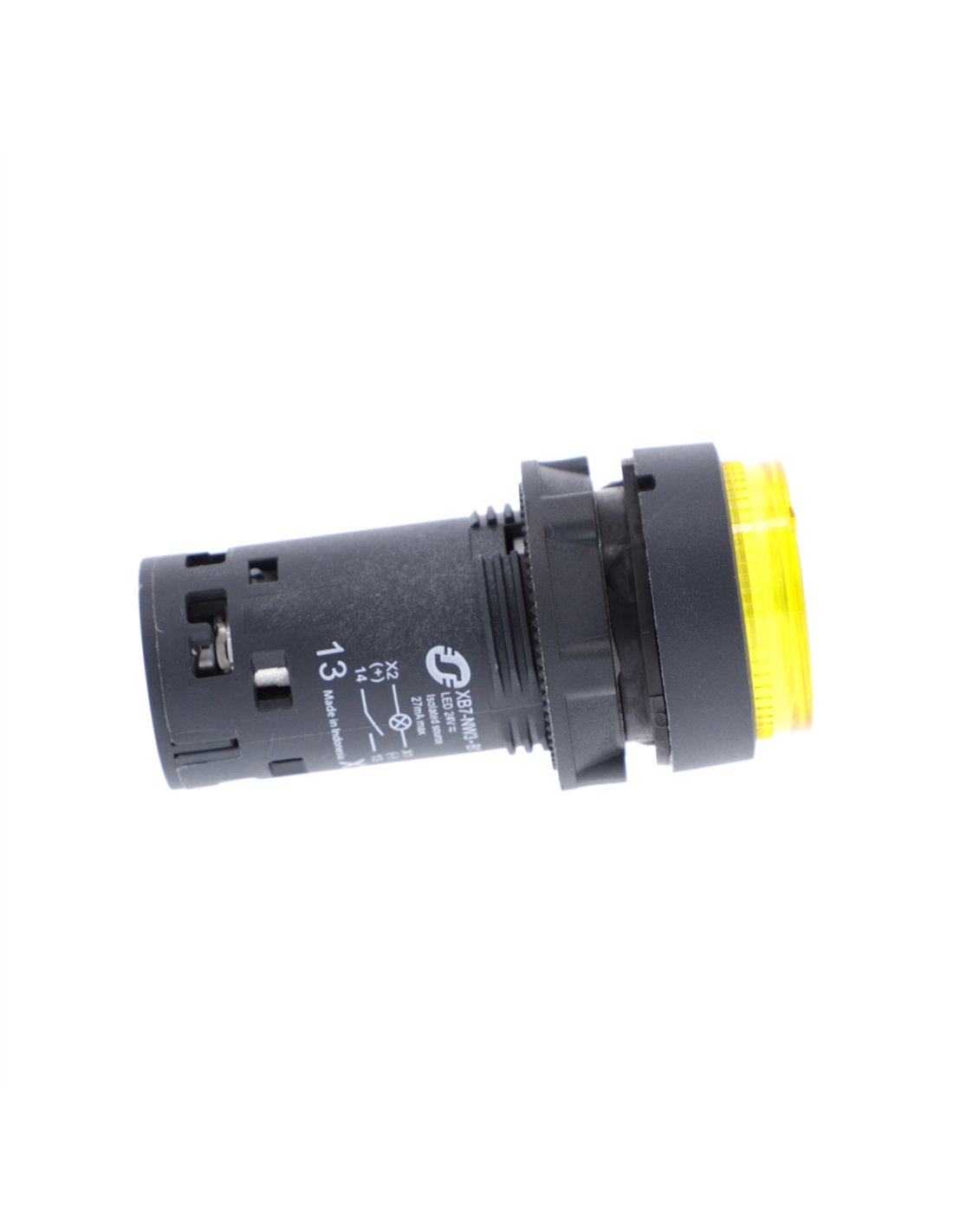

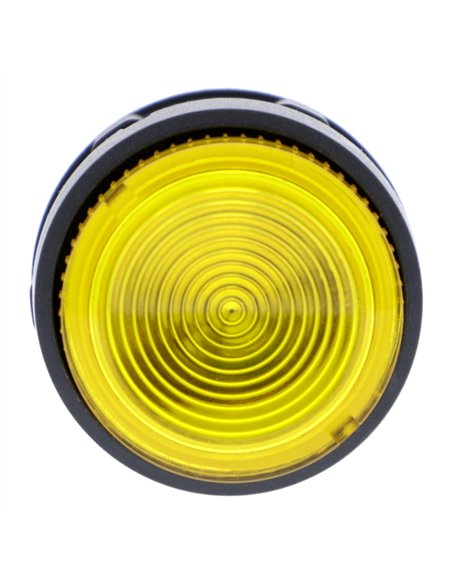

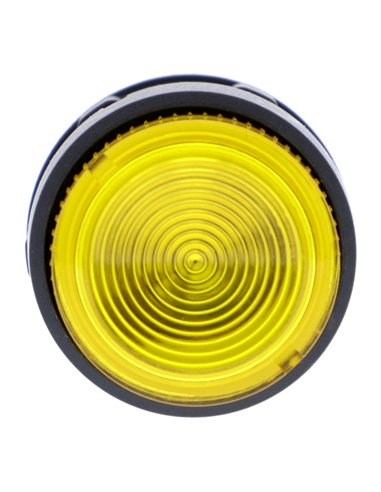

HARMONY XB7 LED illuminated push button 24V AC/DC diameter 22 mm IP65 front panel

IMPO XB7NW38B1
Available
€32.80
VAT included
The XB7 yellow LED push button, designed for 24V AC/DC, has a 22mm mounting diameter and an IP65 protection rating on its front panel. Its mechanical durability reaches 300,000 cycles, making it a reliable choice for industrial applications.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Harmony XB7 range yellow LED push button is a device designed to provide clear and effective signaling in industrial applications. With a mounting diameter of 22 mm, this push button adapts to various configurations and working environments, ensuring reliable and long-lasting performance.

  • Product type: Illuminated push button

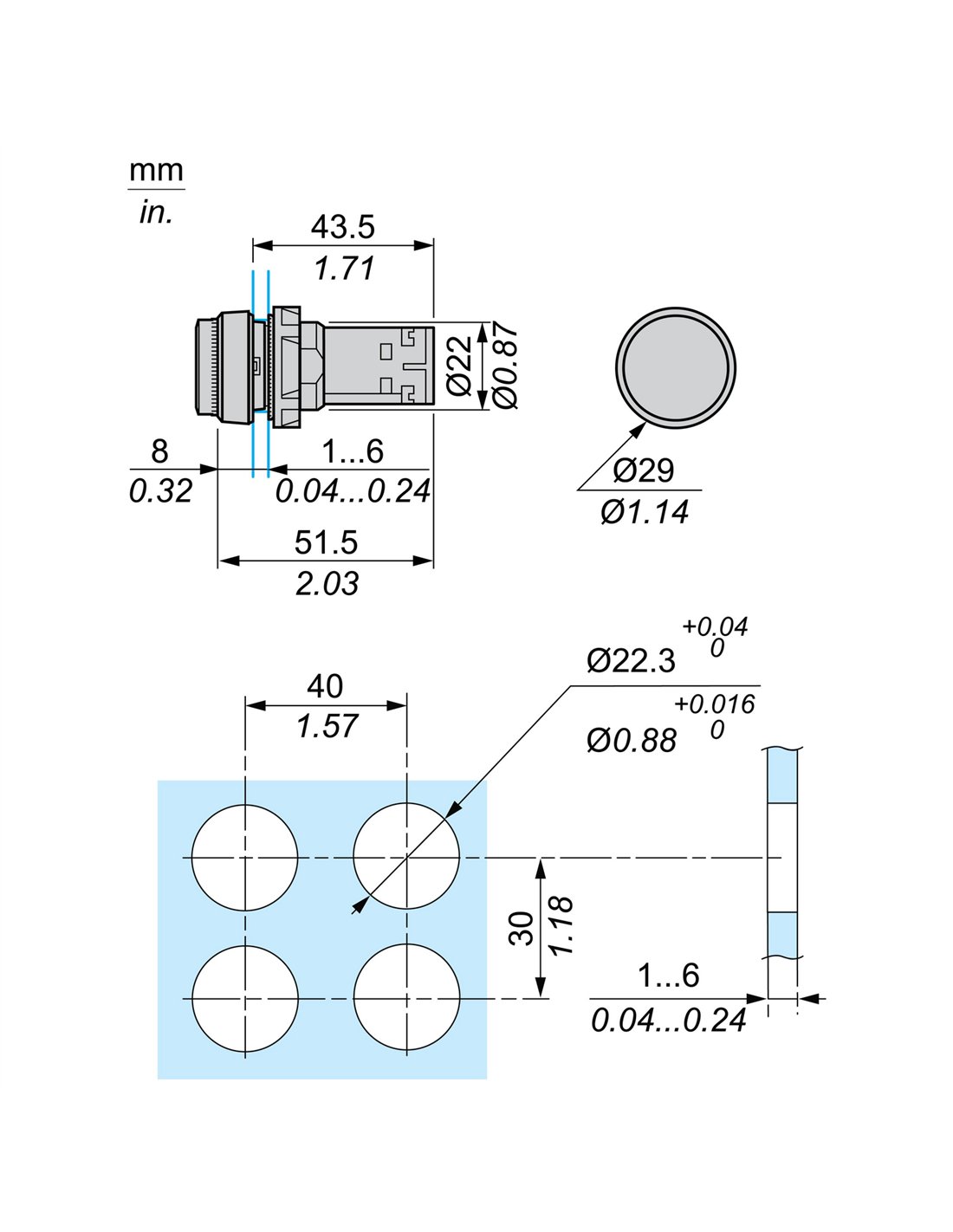

  • Mounting diameter: 22 mm
  • Protection rating: IP20 (rear face), IP65 (front panel)
  • Actuator type: Spring return
  • Light source: Integrated LED
  • Nominal supply voltage: 24 V AC/DC
  • Mechanical durability: 300,000 cycles
  • Electrical durability: 1,000,000 cycles
  • Operating temperature: -25 to 70 °C
  • Vibration resistance: 5 gn (f= 2…500 Hz)

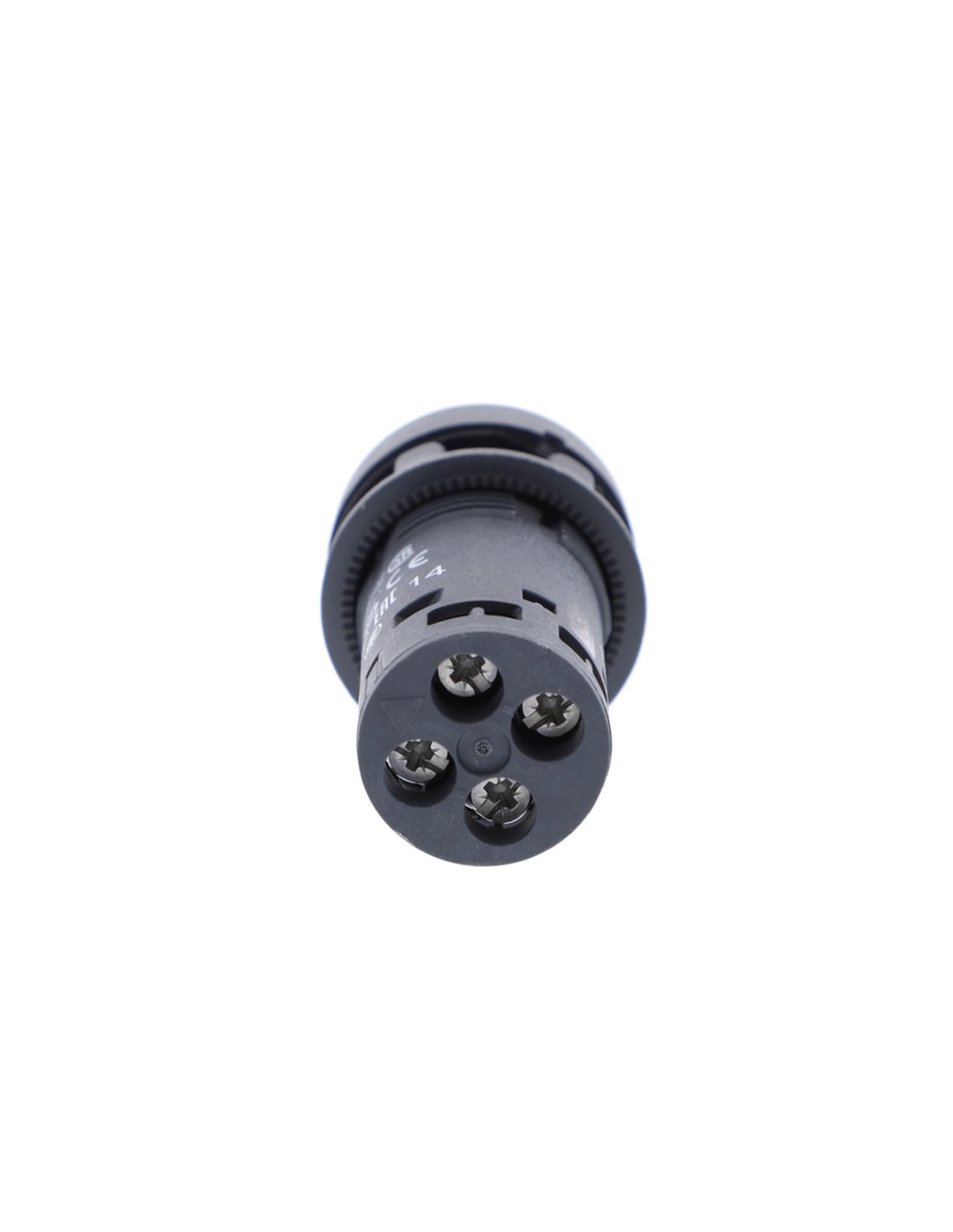

  • Connections: Screw terminals, up to 2 x 1.5 mm²
  • Lifespan: 70,000 hours at nominal voltage and 25 °C

Product Details

EAN
3606480470981
Reference
IMPO XB7NW38B1
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
