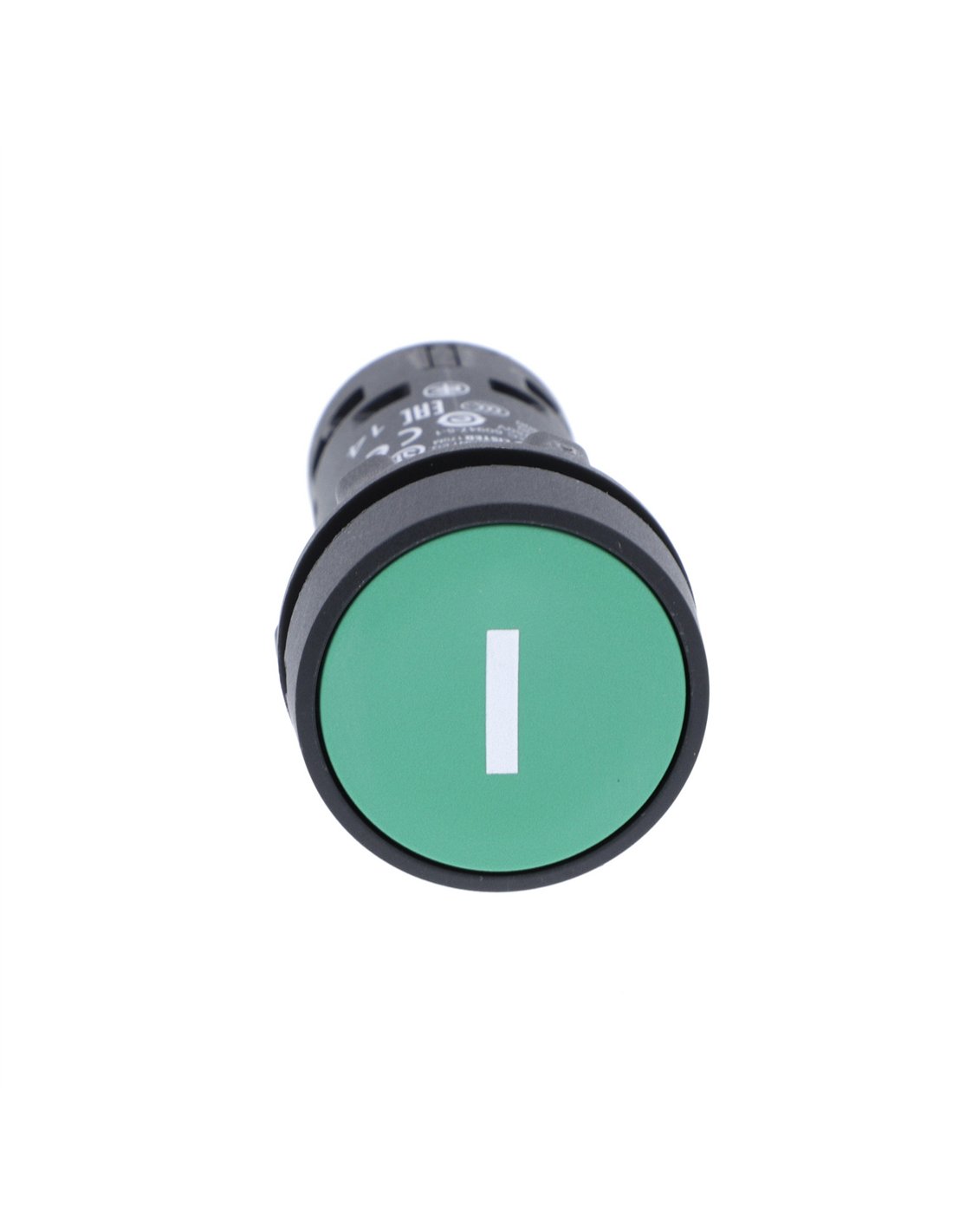

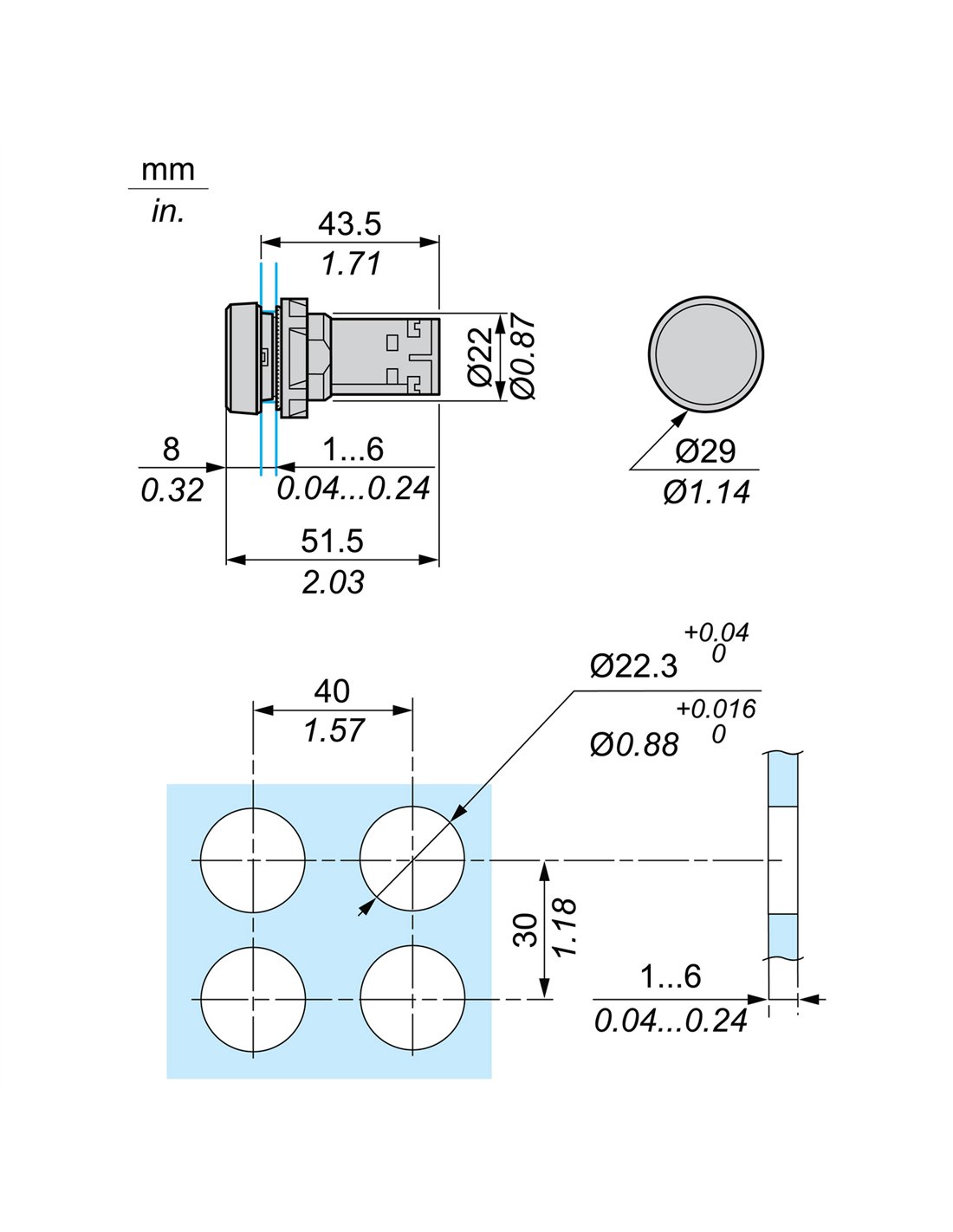

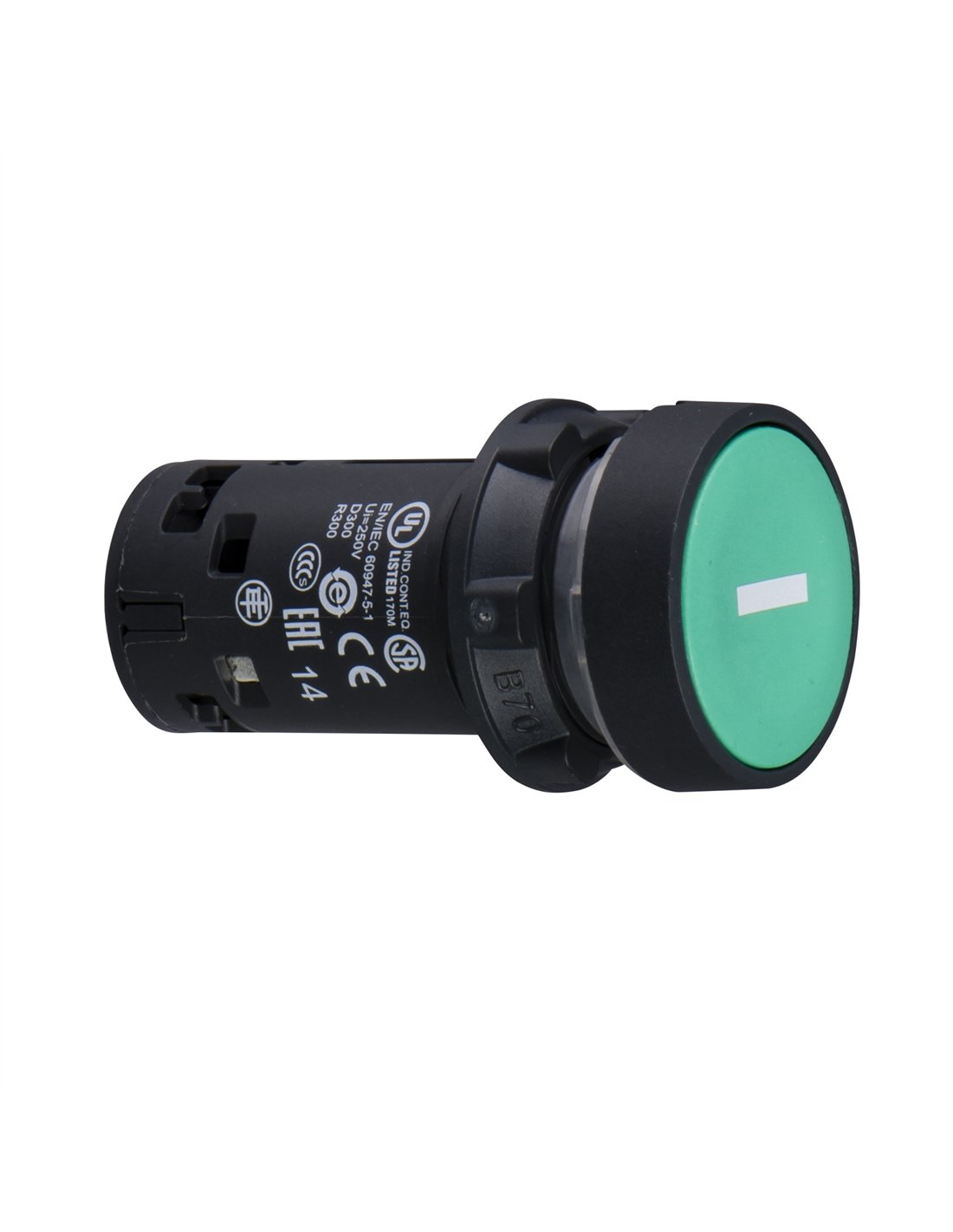

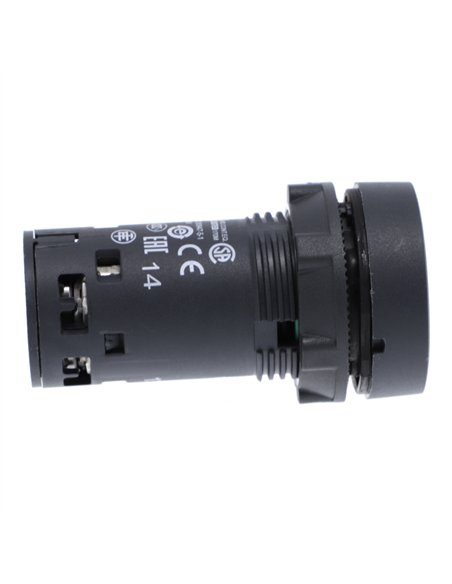

HARMONY XB7 green flush push button, 22 mm diameter, IP65 front panel mounting, 1 NO

IMPO XB7NA3131
Available
€20.34
VAT included
The Harmony XB7 green flush-mount push button is a monolithic device with a 22 mm mounting diameter. It offers IP65 protection on the front panel and features a spring-return mechanism. Its mechanical durability reaches one million cycles, ensuring reliable performance.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Harmony XB7 range green flush push button is a component designed for industrial applications that require a high level of reliability and durability. With a mounting diameter of 22 mm, this push button adapts to various configurations and working environments, ensuring efficient and safe operation.

  • Product type: Push button
  • Mounting diameter: 22 mm
  • Protection rating: IP20 (rear face), IP65 (front panel)
  • Actuator type: Spring return
  • Signal head shape: Circular
  • Contact type: 1 NO
  • Connections: Screw terminals, up to 2 x 1.5 mm²
  • Mechanical durability: 1,000,000 cycles
  • Operating temperature: -25 to 70 °C
  • Peak voltage resistance: 4 kV
  • Certifications: IEC 60947-5-1, UL 508, CSA C22.2 No 14
  • Net weight: 0.021 kg

Product Details

EAN
3606480470028
Reference
IMPO XB7NA3131
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
