Piloto iIL simple blanco
Piloto iIL simple blanco

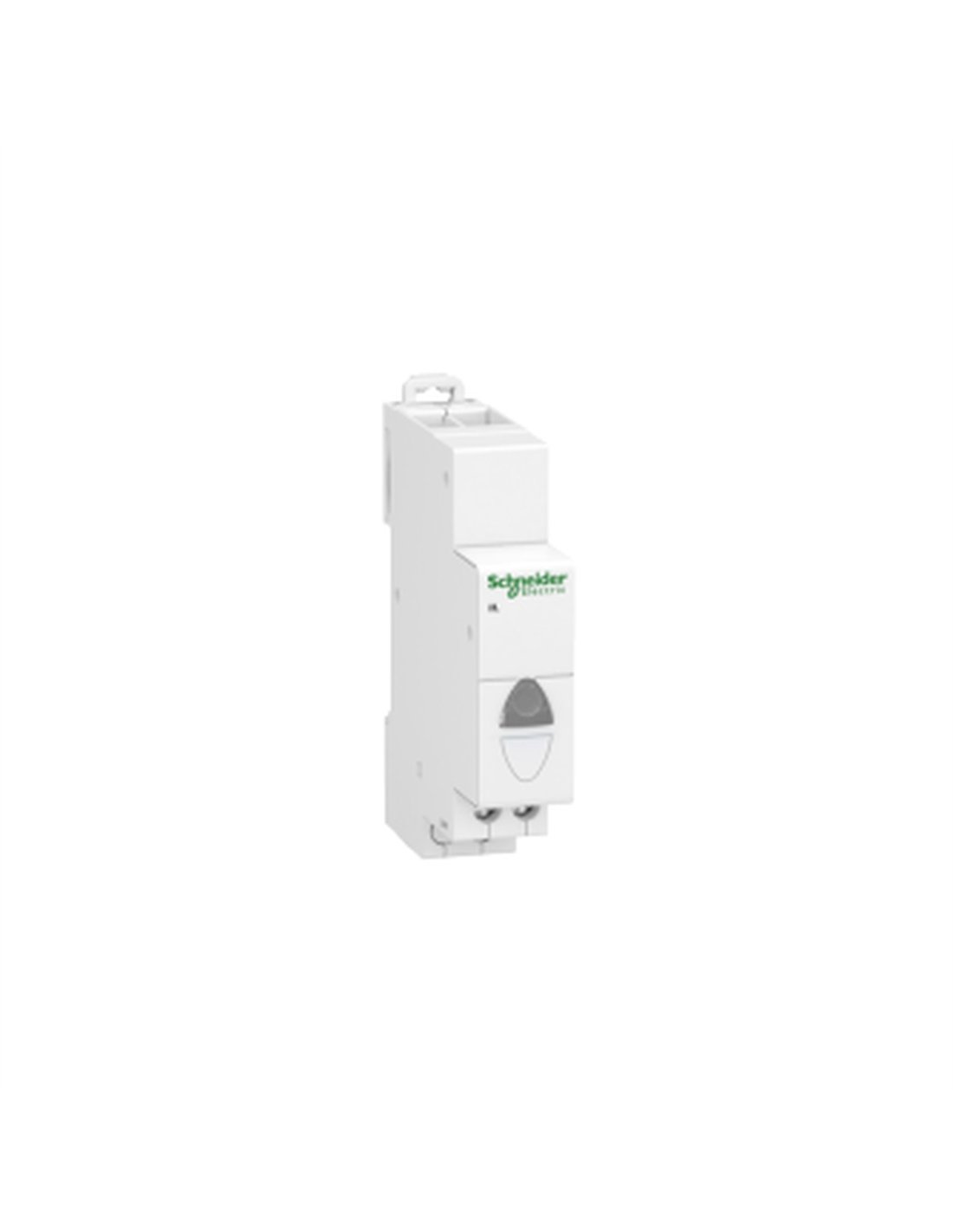

ACTI 9 LED Modular Pilot Light, White, 12-48 V AC/DC, IP2, 100000 h Lifespan

IMPO A9E18332
Available
€17.63
VAT included
The Acti 9 range single white LED pilot light is designed for fixed DIN rail mounting. It provides signaling with a white LED and is compatible with voltages from 12 to 48 V AC/DC. Ideal for residential environments and small businesses.
9 Items

Description

The Acti 9 iINT single white pilot light is a modular device designed to provide effective signaling in residential and small commercial environments. This pilot light, model Acti 9 iINT, is characterized by its high durability and efficiency, with a white LED that guarantees a lifespan of up to 100,000 hours and a consumption of only 0.3 W. Its compact design allows for fixed mounting on a symmetrical DIN rail, facilitating its integration into existing electrical systems.

The iIL is compatible with distribution blocks and busbars, making it a versatile option for various applications.

Its robust construction ensures reliable performance in demanding environmental conditions, with an operating temperature range of -35 to 70 °C and a relative humidity of 95% at 55 °C.

  • Nominal supply voltage: 12...48 V AC at 50/60 Hz, 12...48 V DC
  • Mounting type: Fixed
  • Dimensions: Height 82 mm, Width 18 mm, Depth 69.5 mm
  • Protection rating: IP2
  • Standards: IEC 60947-5-1
  • Pollution degree: 3
  • Tropicalization: 2
  • Tightening torque: 1 Nm
  • Compatibility code: IIL
  • Striped cable length: 9 mm

Product Details

EAN
3606480088438
Manufacturer
SCHNEIDER
Reference
SCHNEIDER A9E18332
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
9 Items

Reviews (0)

No reviews

12 other products in the same category:

CUERPO PULS HARMONY XB4 1NA D22 CONEXIÓN TORN CUERPO PULS HARMONY XB4 1NA D22 CONEXIÓN TORN 2
Available
Accessories for electric boxes

Body diameter 22mm 1 NO with metal trim screw connection

SCHNEIDER
IMPO ZB4BZ101
€9.33
Pushbutton body diameter 22mm contact type and composition 1 NO with slow break, Harmony XB4 product range. Short name of the ZB4 device. It has a fixing ring in zamak. With fixing collar/body. It has dimensions of 30mm wide, 47mm high and 37mm deep. Short-circuit protection 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1. Conventional thermal...
Tapa de registro cuadrada empotrable blanca hecha en acero con mecanismo de apertura push-pull 24,5x24,5cm EDM Tapa de registro cuadrada empotrable blanca hecha en acero con mecanismo de apertura push-pull 24,5x24,5cm EDM 2
Available
Accessories for electric boxes

Square recessed white access cover made of steel with push-pull opening mechanism...

EDM
EDM 87749
€17.63
The white recessed square access cover by EDM is a functional and aesthetic solution for access to facilities. Made of stainless steel, its modern design and push-pull opening mechanism make it ideal for any space. Dimensions: 24.5x24.5cm Color: White Material: Stainless steel Mechanism: Push-pull opening Type: Recessed Weight (kg): 0.478...
CABEZA PULS.RASANTE BLANCO"+" CABEZA PULS.RASANTE BLANCO"+" 2
Available
Accessories for electric boxes

Push button head diameter 22 flush white black arrow with plastic trim

SCHNEIDER
IMPO ZB5AA334
€8.77
Push button head, Ø 22, white, arrow up. Product range: Harmony XALF, Harmony XB5 - device short name: ZB5 - mounting diameter: 22 mm. Benefits: Move forward with confidence. Designed for industry, this range combines simplicity of configuration and flexibility. It is ideal for applications that require good resistance to chemical agents and/or double...

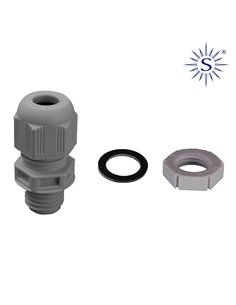

PRENSAESTOPAS PARA INSTALACION ELECTRICA M16X1,5 (RETRACTILADO) SOLERA
