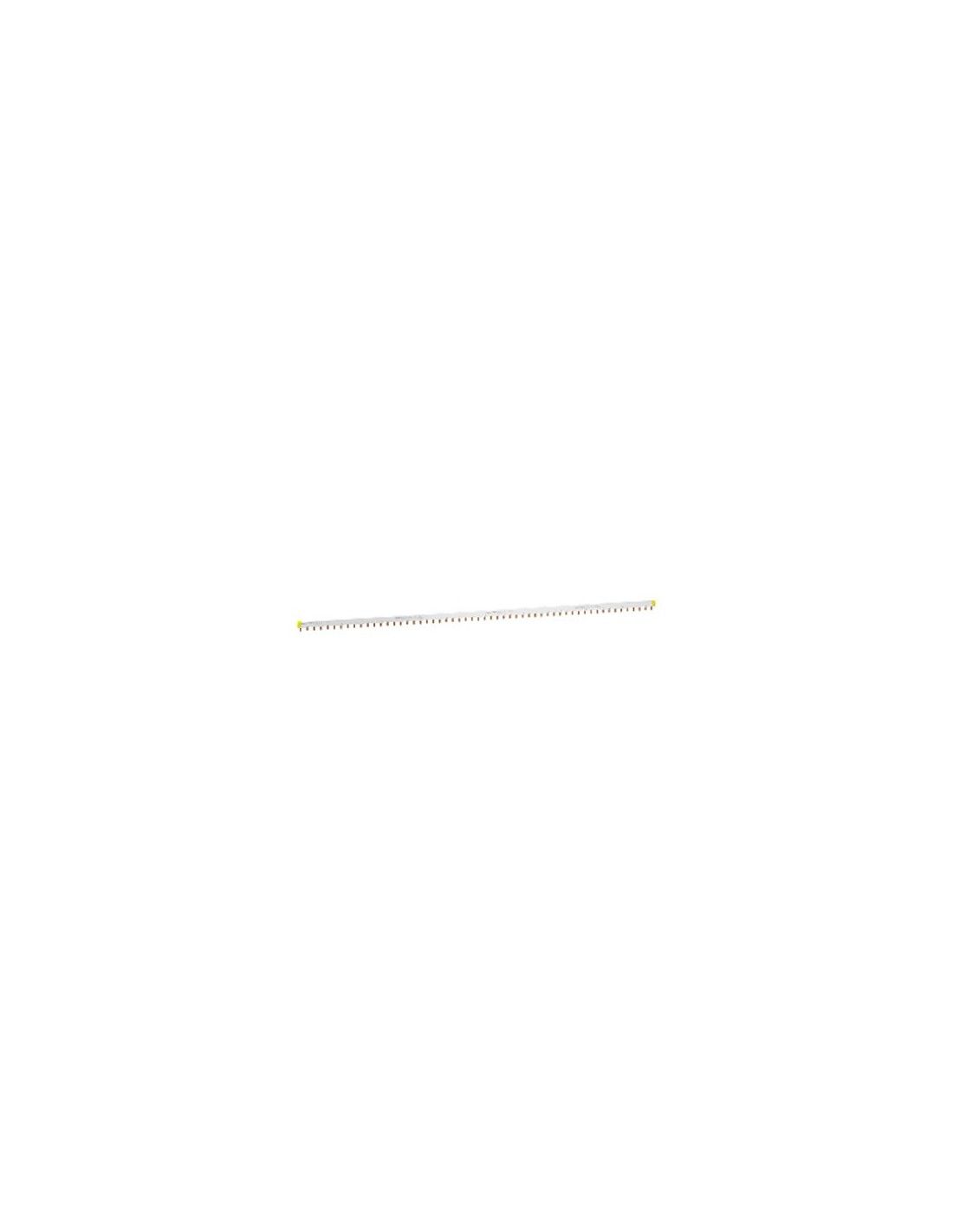

Comb bipolar of 57 modules Acti 9 Schneider A9XPH257
Comb bipolar of 57 modules Acti 9 Schneider A9XPH257

Tetrapolar comb with 57 modules 1 meter Acti 9 Schneider A9XPH257

SCHNEIDER A9XPH457
Available
€75.52
VAT included

Comb through bipolar of 57 modules

Easy to cut

Range Acti 9, Schneider

80 Items

Description

Poles: 1 + N

Total number of modules 18 mm: 57

Steps to interpolate: 18mm.

Connector type: Tooth

[Ie] rated current of employment 100 A ( 40 °C )

[Ue] rated voltage of employment 415 V AC

[Ui] rated voltage of insulation 500 V AC according to IEC 61439-2

Mounting type: Horizontal

Width: 1000 mm

White colour ( RAL 9003 )

Compatibility range Multi 9 C60: Acti 9 iK60, Acti 9 iC60, Acti 9 iID, Acti 9 iID-K, Acti 9 iSW, Acti 9 iSW-NA

Environment

Standards IEC 61439-2 and IEC 60947-7-1

Fire resistance 960 °C ( 30 s ) according to IEC 60695-2-1

Degree of pollution 3 according to IEC 60947-7-1

IP protection degree: IP20 with end-pieces and tooth covers

Product Details

EAN
3606480485138
Manufacturer
Schneider
Range
Acti9
Reference
SCHNEIDER A9XPH457
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / info@schneider-electric.com / +34 930289900
GPSR e-mail manufacturer
info@schneider-electric.com
