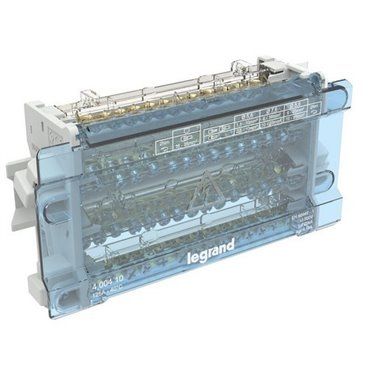

Repartidor modular de barras escalonadas 4 Polos, 125 A, 15 salidas, 10 módulos

Repartidor modular de barras escalonadas 4 Polos, 125 A, 15 salidas, 10 módulos

LEGRAND 400410 | 4P 125A staggered busbar modular distributor 15 outputs 10 modules

Reference LEGRAND 400410

Available

€84.81

VAT included

Staggered modular distributors. Mounting on DIN rail. Possibility of adding IP2X terminals to increase the number of earth or neutral conductors. They include removable and rotating lid. Quick and easy to install. Transparent insulating protection between each bar and on the back of the distributor. tetrapolar. Imax: 125 A. Rigid bar connections: 2x10 to 35mm² + 1x10 to 25mm² + 12x2.5 to 10mm². Flexible bar connections: 2x6 to 25mm² + 1x6 to 16mm² + 12x1.5 to 10mm². Ipk: 20kA. Icw: 4.5kA. Number of modules: 10

In stock 6 Items

Subscribe To When In Stock

You have successfully subscribed to this product

Product Details

EAN: 3414971978690
Manufacturer: LEGRAND
Reference: LEGRAND 400410
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / [email protected] / +34 916561812
GPSR EU responsible person: LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / [email protected] / +34 916561812
GPSR e-mail manufacturer: [email protected]

In stock 6 Items
