List of products by brand SCHNEIDER

Schneider

Showing 721-744 of 6375 item(s)

Available

Seccionadores

IMPO 31107

ComPact range 4P section switch, designed for industrial applications with 250 A rated current, 750 V AC insulation voltage, 30 kA to 690 V AC short circuit capacity, and IP40 protection grade.

Available

Seccionadores

3P ComPact INS250 Isolating Switch

IMPO 31106

€266.97

ComPact range 3P section switch, designed for industrial applications with 250 A rated current, 750 V AC insulation voltage and 30 kA short circuit capacity. Compatible with AC 50/60 Hz networks up to 690 V and DC 125 V.

Available

Seccionadores

4P 160 A ComPact Isolating Switch

IMPO 31105

€261.36

4P ComPact INS250 control switch, nominal current 160 A, insulation voltage 750 V AC, short circuit capacity 30 kA to 690 V AC, fixed design with DIN rail mounting, rotary control and black handle, position indicator, pollution level 3, operating from -25 to 70 °C, suitable for industrial installations.

Available

Accessories for electric boxes

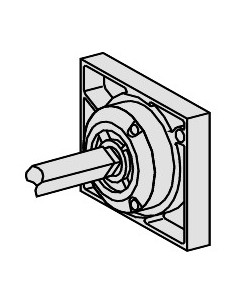

Extended side rotary switch black

IMPO 31057

€50.18

Prolonged lateral rotary command with black manipule, designed for extended direct assembly on equipment of INS250 and INV100...250 ranges. Made of resistant materials, it complies with proactive compliance with the EU RoHS Directive and does not contain SVCH or mercury.

Available

Accessories for electric boxes

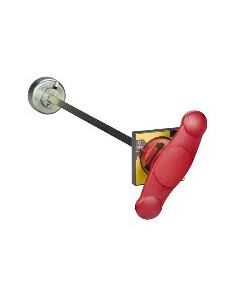

Extended red yellow front rotary switch

IMPO 31053

€97.07

Extended type rotary front command for panel mounting, with red handle and yellow plate. Designed for industrial applications in INS320...630 range, with lock in OFF position. It complies with SVCH-free, mercury-free and outside the scope of RoHS EU and RoHS China, certified as Green Premium.

Extended black front rotary command for INS320-630

Available

Accessories for electric boxes

Extended black front rotary command for INS320-630

IMPO 31052

€88.39

Extended rotary front command rotary control type, designed for mounting in front position with black handle and front plate. Includes lock system in OFF position. Compatible with INS320...630, INV320...630 and INSJ400 ranges. It complies with proactive compliance with the EU RoHS Directive and does not contain SVCH or mercury.

Available

Accessories for electric boxes

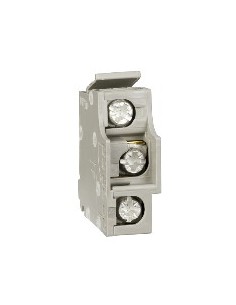

Low-level auxiliary contact 1 NA/NC

IMPO 29452

€61.41

Low-level auxiliary contact for automatic switches from the Compact NS630b...1600 and NS1600b...3200 ranges, compatible with switch status monitoring systems. Includes one NA/NC contact, supports nominal current up to 5 A in AC-12 and 5 A in DC-12, with a minimum load of 1 mA at 4 V DC.

Auxiliary contact 1 NA/NC adjustable clip-on

Available

Accessories for electric boxes

Auxiliary contact 1 NA/NC adjustable clip-on

IMPO 29450

€47.25

Standard auxiliary contact with 1 NA/NC configuration, designed for monitoring switch status in ComPact NS630b...1600 and NS1600b...3200 systems. Supports nominal current of 6 A in AC-12 and 6 A in DC-12 up to 24 V. Adjustable clip mounting, connection via spring terminal for cables of 0.5 to 1.5 mm² (AWG 20–16).

Available

Accessories for electric boxes

Terminal Cover 3/4P IP40 Set of 2

IMPO 28958

€32.46

3/4P covers for ComPact INSE type installations, designed for safe terminal insulation in electrical cabinets. Made of PVC-free materials, it complies with IP40. Compatible with INS100...160 range. Includes two units per game. It complies with RoHS EU directive proactively and is Green Premium product.

Available

Accessories for electric boxes

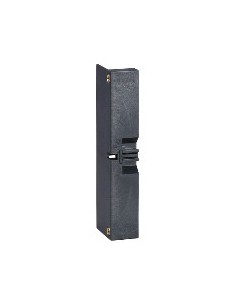

4P 3P Terminal Covers for ComPact Range

IMPO 28956

€16.90

Kit of 2 covers for automatic switches of the range ComPact INS40...160, compatible with Compact INSE series. Designed for safe insulation in electrical installations, with protection against accidental contacts. Made without PVC and mercury, it complies with the proactive compliance of RoHS EU and is certified as Green Premium Product.

Available

Accessories for electric boxes

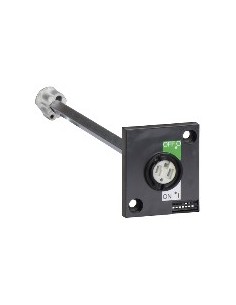

Extended side rotary handle black

IMPO 28943

€45.56

Extended lateral rotary control with black finish, designed for lateral assembly in industrial equipment. Includes lock in OFF position for operational security. Compatible with the INS40...160 range. Manufactured without mercury, complies with proactive compliance RoHS EU and does not contain SVCH according to REACh. Green Premium product.

4P Isolating Switch ComPact Interpact INS160

Available

Seccionadores

4P Isolating Switch ComPact Interpact INS160

IMPO 28913

€158.80

4P isolating switch ComPact Interpact INS160, designed for industrial applications with DIN rail mounting. Supports nominal current of 160 A in AC-22A and 100 A in AC-23A, nominal operating voltage up to 690 V AC and 250 V DC. Features rotary operation, contact position indicator, and protection rating IP40, IK07. Mechanical durability of 15,000 cycles...

4P Isolating Switch ComPact Interpact INS125

Available

Seccionadores

4P Isolating Switch ComPact Interpact INS125

IMPO 28911

€134.87

4P isolating switch from the ComPact range, designed for AC and DC circuits, with a nominal operating current of 125 A, a nominal insulation voltage of 750 V AC, a short-circuit breaking capacity of 154 kA with upstream circuit breaker, and an IP40 protection rating, suitable for industrial environments with pollution degree 3.

4P ComPact Interpact INS100 Isolating Switch

Available

Seccionadores

4P ComPact Interpact INS100 Isolating Switch

IMPO 28909

€123.13

4P ComPact Interpact INS100 isolating switch, designed for safe disconnection in AC and DC circuits, with a rated current of 100 A, short-circuit breaking capacity of 154 kA at 690 V AC, pollution degree 3, DIN rail mounting, rotary operation with black handle, operable between -25 and 70 °C, suitable for demanding industrial environments.

Available

Seccionadores

4P Isolating Switch Interpact INS80

IMPO 28905

€113.58

Compact 4P isolating switch from the ComPact range, designed for AC and DC circuits. Supports nominal current up to 80 A, insulation voltage 690 V AC, and short-circuit breaking capacity of 15 kA. Features position indicator, DIN rail mounting, and IP40 protection.

Available

Seccionadores

Interpact INS63 4P Isolating Switch

IMPO 28903

€106.72

Compact isolating switch Interpact INS63 4P, designed for industrial applications with a rated current of 63 A in AC-22A and DC-22A, rated operating voltage of 500 V AC and 250 V DC, short-circuit breaking capacity of 15 kA at 500 V AC, pollution degree 3, DIN rail mounting, with position indicator and rotary handle, compliant with RoHS and certified...

Available

Seccionadores

Interpact INS63 3P Isolating Switch

IMPO 28902

€92.90

3P isolating switch from the ComPact range, designed for AC circuits at 50/60 Hz and DC up to 125 V. Supports a nominal current of 63 A, insulation voltage of 690 V AC, and short-circuit breaking capacity of 15 kA. Features a position indicator and fixed DIN rail mounting.

Available

Seccionadores

4P Isolating Switch Interpact INS40

IMPO 28901

€78.46

4P isolating switch from the ComPact range, designed for AC and DC circuits. Supports a nominal current of 40 A, insulation voltage of 690 V AC, and short-circuit breaking capacity of 15 kA at 500 V AC. Features a position indicator, DIN rail mounting, and IP40 protection.

Acti9 P25M 3P 2.5 A K Curve Motor Protector

Available

Motor Starters and Motor Protection Circuit Breakers

Acti9 P25M 3P 2.5 A K Curve Motor Protector

IMPO 21106

€66.17

Miniature circuit breaker Acti9 P25M 3P, 2.5 A, K curve, designed for thermal-magnetic protection of motors in industrial installations. Breaking capacity Icu of 3 kA at 690 V AC, AC-3 duty category, 35 mm DIN rail mounting, position indicator and integrated lock. Operable between -20 °C and 60 °C, suitable up to 2000 m altitude.

Available

Accessories for electric boxes

Acti 9 NG125 2 C/A Defect Contact

IMPO 19072

€41.16

Signaling switch with defect contact 2 C/A, compatible with Acti 9 NG125 range, DIN rail mounting. Supports 3 A at 415 V AC, 6 A at 130 V AC, and 3 A at 48 V DC. Insulation voltage of 690 V AC, surge withstand capability of 8 kV. Electrical durability of 10,000 cycles. Connections via plate terminals for rigid and flexible wires from 0.5 to 2.5 mm²....

Available

Accessories for electric boxes

Double NO Contact NG125 9 mm

IMPO 19071

€44.67

Double NO contact from the Acti 9 NG125 range, designed for use in small businesses. Supports a nominal current of 3 A at AC 415 V and 6 A at AC 130 V, with an insulation voltage of 690 V AC. Fixed mounting on DIN rail, compatible with NG125NA and NG125LMA series.

Available

Differential

Vigi Block 4P 63A 30mA NG125

IMPO 19017

€267.37

Vigi NG125 4P block with nominal current 63 A, earth leakage sensitivity of 30 mA, and instantaneous trip. Designed for installations in small businesses, operates on AC 50/60 Hz networks with nominal operating voltage 230...415 V.

Available

Differential

Vigi Block 4P 63A 300mA NG125 type AC

IMPO 19005

€175.87

Vigi NG125 4P block with rated current 63 A, earth leakage sensitivity 300 mA, type AC, instantaneous operation. Designed for installations in small businesses, compatible with 35 mm DIN rail mounting.

Available

Differential

Block Vigi 4P 63A 30mA NG125 type AC

IMPO 19004

€321.22

Vigi NG125 4P differential breaker with nominal current 63 A, earth leakage sensitivity of 30 mA, type AC, and instantaneous protection. Designed for installations in small businesses, compatible with 35 mm DIN rail mounting. Supports voltages up to 415 V AC, 50/60 Hz, with IP40 protection rating and electrical durability of 10,000 cycles. Complies with...
