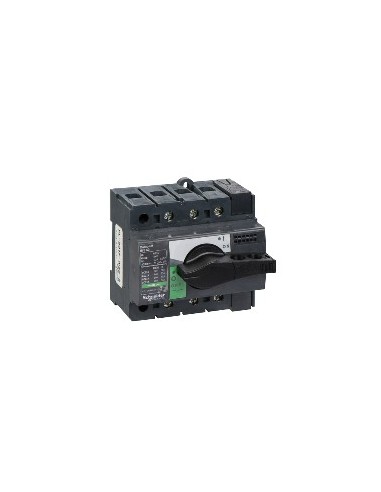

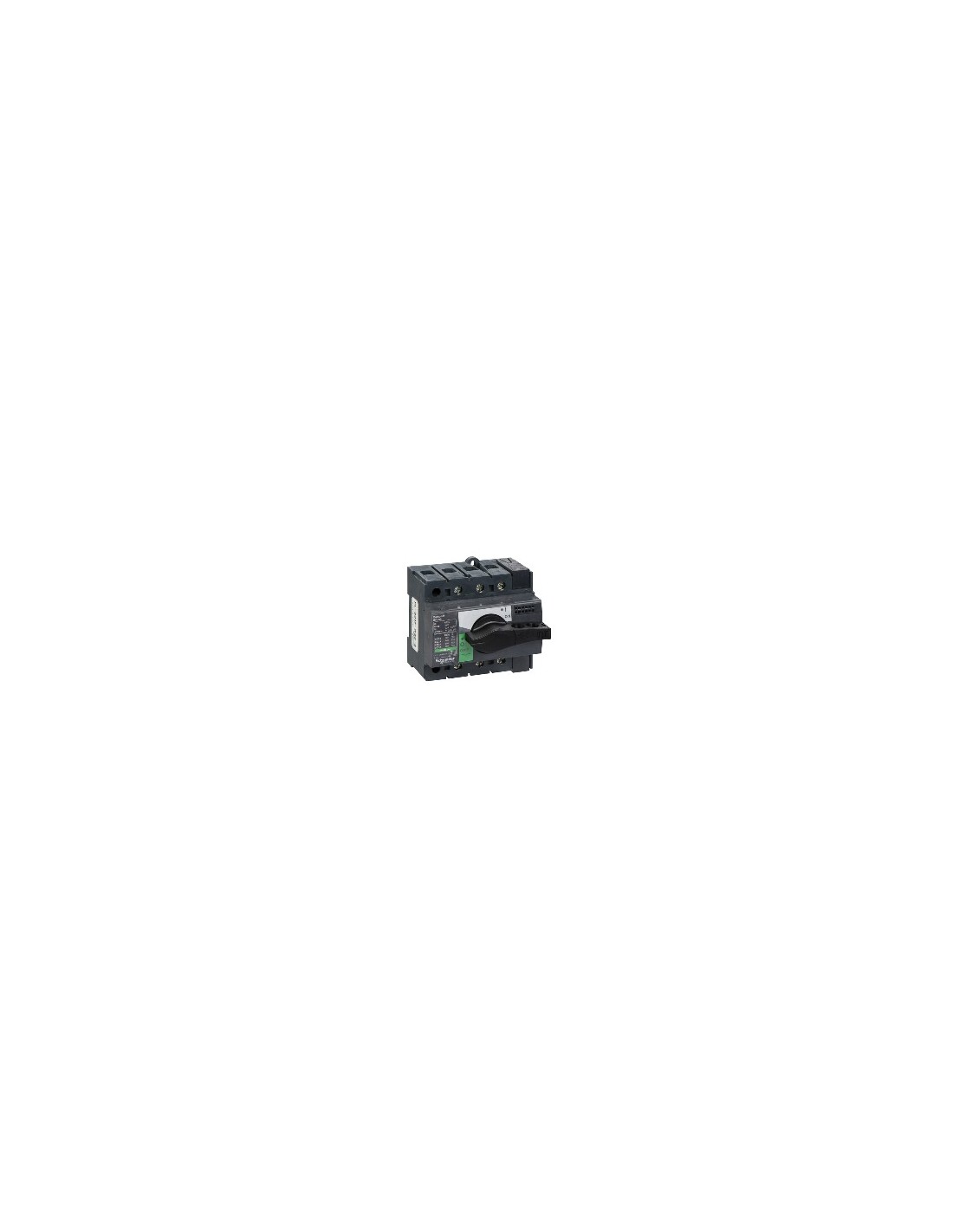

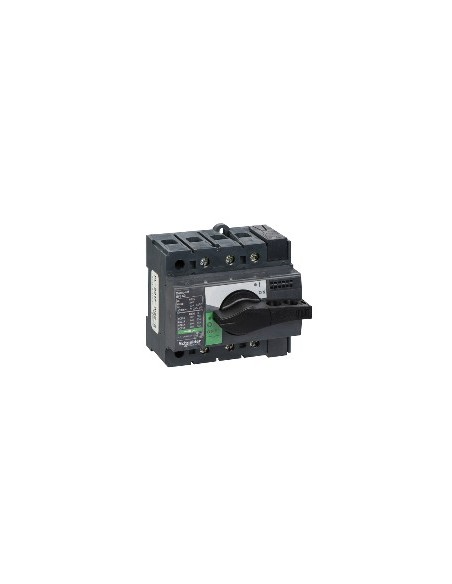

Interpact INS63 3P Isolating Switch

3P isolating switch from the ComPact range, designed for safe connection and disconnection of electrical circuits in industrial installations. Compatible with both AC and DC, it provides reliable control in high-power demand environments. Fixed DIN rail mounting allows for quick installation in electrical enclosures.

Technical Features

• Number of poles: 3P
• Network type: AC and DC
• Frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 63 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 500 V; AC-23A, state 1 40 A and 63 A at 500 V AC; DC-22A, state 1 63 A DC 125 V, 2 poles in series; DC-23A, state 1 63 A DC 125 V, 2 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 63 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA for isolating switch only at 500 V AC 50/60 Hz; 75 kA with upstream circuit breaker at 500 V AC 50/60 Hz
• Rated operating voltage: 125 V DC, 500 V AC 50/60 Hz
• Breaking capability: Yes
• Position indicator: Yes
• Visible breaking: No
• Contamination degree: 3
• Control type: Rotary handle
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 15 kW at 220/240 V AC 50/60 Hz, 22 kW at 500/525 V AC 50/60 Hz, 30 kW at 380/415 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz
• Service type: Continuous
• Intermittent service class: Class 120 - 60 %
• Enclosure dimensions: 190 mm x 115 mm x 55 mm
• Permissible short-time current: 0.067 kA for 20 s, 1.73 kA for 3 s, 3 kA for 1 s, 5.5 kA for 30 s, in accordance with instantaneous and demand values
• Mechanical durability: 20,000 cycles
• Electrical durability: AC-22A and AC-23A, state 1 1,500 cycles at 220/240 V, 380/415 V, 440 V, 500 V AC 50/60 Hz; DC-22A and DC-23A, state 1 1,500 cycles at 250 V DC, 2 poles in series
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.5 kg
• Compatibility code: INS63
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 in accordance with Activate/Deactivate Ig
• Protection degree IK: IK07 in accordance with H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container
