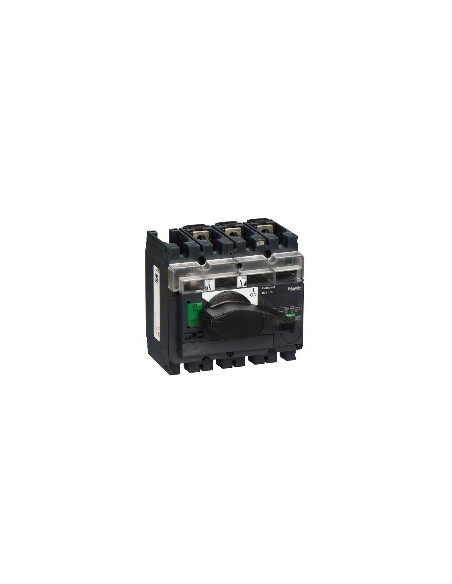

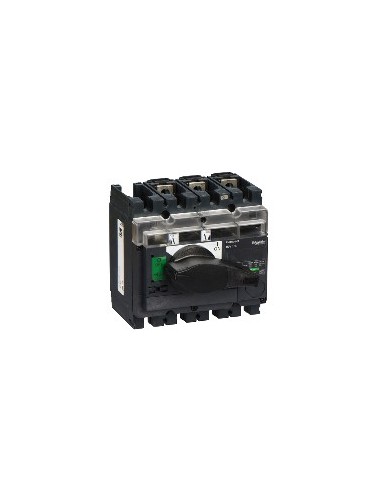

3P isolating switch black 100 A

ComPact range 3P section switch, designed for industrial applications with alternating and continuous current. It offers reliable control in electrical installations up to 690 V AC and 250 V DC, with a short circuit capacity of 30 kA at 690 V AC. It has visible cut, contact position indicator and rotary control for safe and accurate handling.

Technical characteristics

• Number of poles: 3P
• Network type: Continuous current AC
• Network frequency: 50/60 Hz
• Handle colour: Black
• Nominal current of employment: 100 A at multiple AC and DC voltages
• Nominal insulation voltage: 750 V AC 50/60 Hz
• Voltage peak resistance: 8 kV
• Conventional thermal current: 100 A at 60 °C
• Rated short-circuit capacity: 30 kA (selector switch only) 690 V AC 50/60 Hz
• Nominal operating voltage: 250 V DC / 690 V AC 50/60 Hz
• Sewing power: Yes
• Contact position indicator: Yes
• Visible cut: Yes
• Degree of contamination: 3
• Type of control: Rotary Command
• Type of assembly: Fixed
• Mounting bracket: Rail Plate
• Top connection: Front
• Connection down: Front
• Maximum power: Up to 55 kW in 660/690 V AC 50/60 Hz
• Nominal service Uninterrupted
• Permissible temporal current: 1.8 kA (30 s), 2.2 kA (20 s), 4.9 kA (3 s), 8.5 kA (1 s)
• Mechanical durability: 15000 cycles
• Electrical durability: 1500 cycles in AC-22A, AC-23A, DC-22A, DC-23A
• Connection step: 45 mm
• Height: 136 mm
• Width: 140 mm
• Depth: 96 mm
• Weight of product: 2 kg
• Compatibility code: INV100
• Standards: Instant and demand values In> 40 A
• Certifications: CCC, KEMA-KEUR
• Degree of IP protection: IP40 according to On / Off Ig
• Level of protection IK: IK07 according to H
• Operating ambient temperature: -25...70 °C
• Storage ambient temperature: -50...85 °C
• Sustainable supply status: Product Green Premium
• REACh Regulation: Do not contain SVHC
• EU RoHS Directive: As per
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China
• WEEE: To be discarded according to specific EU collection system
