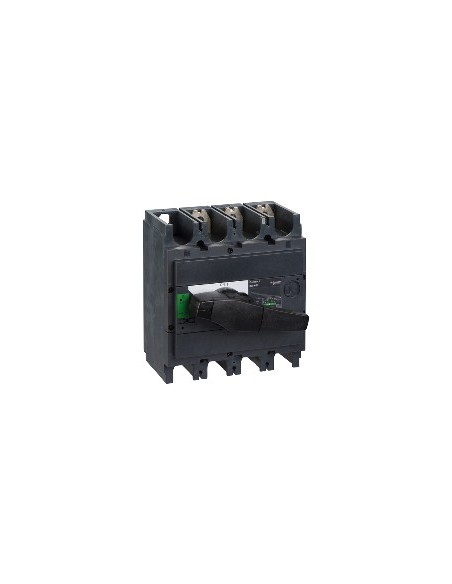

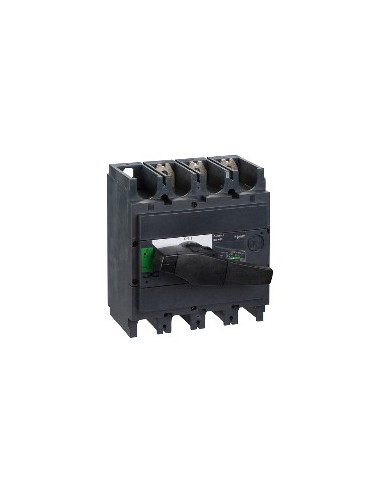

Interpact INS630 3-pole isolating switch

3-pole Interpact Interpact INS630 switch, designed for the safe disconnection of electrical circuits in industrial environments. Compatible with AC networks and DC, it offers reliable operation under high demand conditions. Its robust construction and quality certifications guarantee stable performance in demanding installations.

Technical characteristics

• Number of poles: 3P
• Network type: AC Continuous current
• Network frequency: 50/60 Hz
• Nominal current of employment: AC-22A, status 1 630 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 480 V NEMA, 500/525 V, 660/690 V; AC-23A, status 1 630 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 480 V NEMA, 500/525 V, 660/690 V; DC-22A, status 1 550 A DC 125 V 2 poles in series; DC-23A, status 1 550 A DC 125 V 2 poles in series; DC-23B, status 1 630 A DC 125 V 2 poles in series
• Nominal insulation voltage: 750 V AC 50/60 Hz
• Voltage peak resistance: 8 kV according to instant and demand values
• Conventional thermal current: 630 A at 60 °C
• Rated short circuit capacity: 330 kA with automatic circuit breaker upstream 690 V AC at 50/60 Hz, 50 kA single circuit breaker 690 V AC at 50/60 Hz
• Nominal operating voltage: 250 V DC current, 690 V AC 50/60 Hz
• Sewing power: Yes
• Contact position indicator: Yes
• Visible cut: No
• Degree of contamination: 3
• Type of control: Rotary Command
• Handle colour: Black
• Type of assembly: Fixed
• Mounting bracket: Rail Plate
• Top connection: Front
• Connection down: Front
• Maximum power: AC-23, state 1 200 kW at 220/240 V AC 50/60 Hz, 230 V AC 50/60 Hz, 315 kW at 380/415 V AC 50/60 Hz, 375 kW at 480 V AC 50/60 Hz, 400 kW at 440 V AC 50/60 Hz, 500/525 V AC 50/60 Hz, 560 kW at 660/690 V AC 50/60 Hz
• Nominal service Uninterrupted
• Allowable time current: 11.5 kA electrical durability 3 s, 20 kA electrical durability 1 s, 4 kA electrical durability 30 s, 4.9 kA electrical durability 20 s according to instant and demand values
• Mechanical durability: 10000 cycles
• Electrical durability: AC-22A, status 1 1500 cycles 440 V AC 50/60 Hz, 500 V AC 50/60 Hz, 690 V AC 50/60 Hz; AC-23A, status 1 1500 cycles 440 V AC 50/60 Hz, 500 V AC 50/60 Hz, 690 V AC 50/60 Hz; DC-23A, status 1 1000 cycles 125 V DC current; DC-23B, status 1 200 cycles 125 V DC current
• Connection step: 45 mm
• Height: 205 mm
• Width: 185 mm
• Depth: 130 mm
• Weight of product: 4.6 kg
• Compatibility code: INS630
• Standards: Instant and demand values In> 40 A
• Product certifications: CCC KEMA-KEUR
• Degree of IP protection: IP40 according to On / Off Ig
• Level of protection IK: IK07 according to H
• Operating ambient temperature: -25...70 °C
• Storage ambient temperature: -50...85 °C
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• EU RoHS Directive: As per
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: Product outside of RoHS China. Information statement on substances
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
