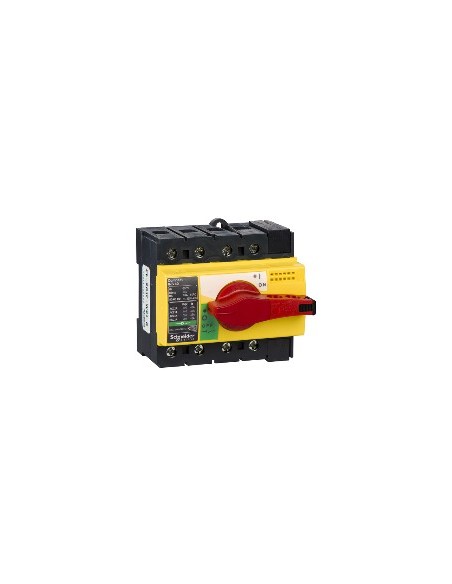

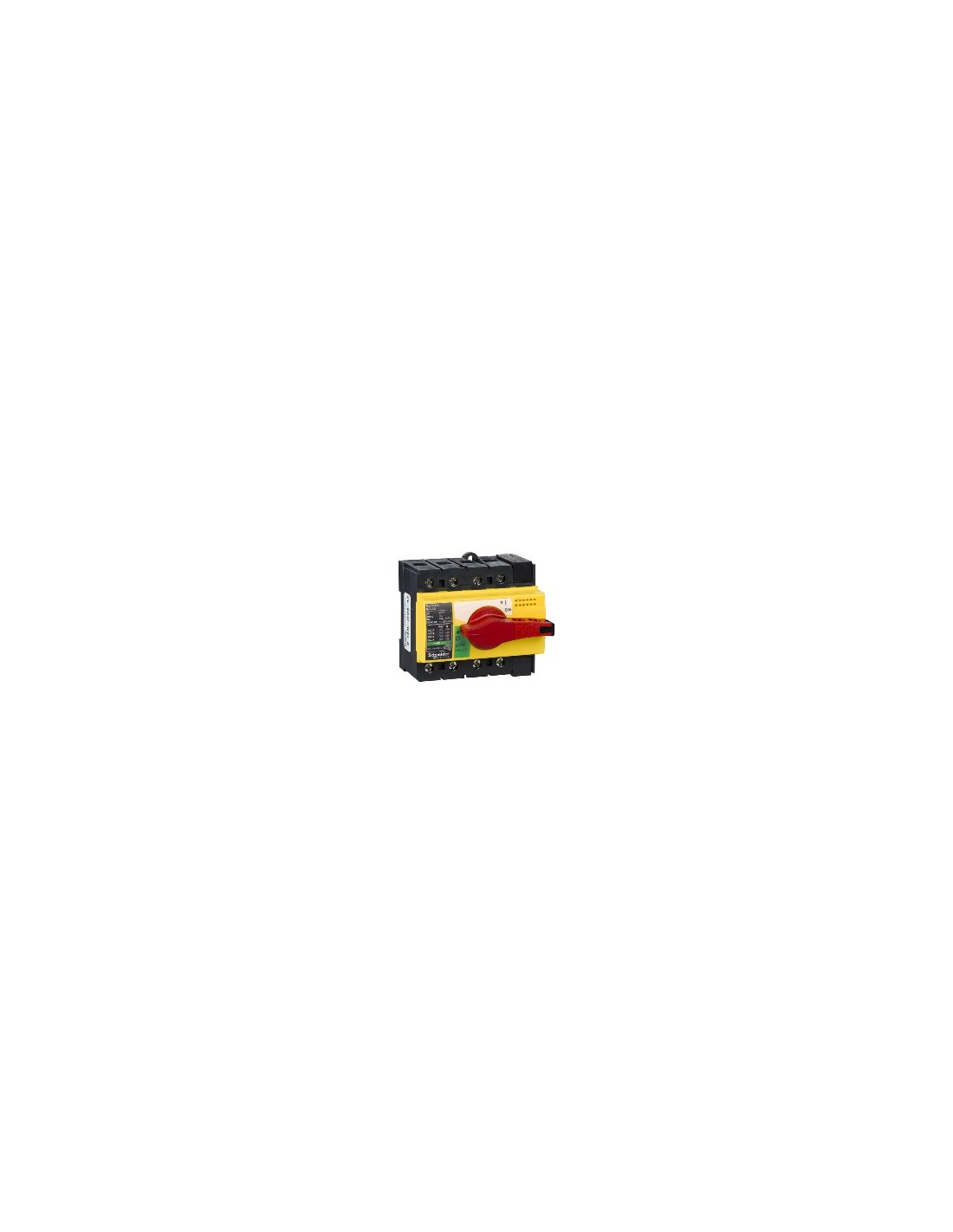

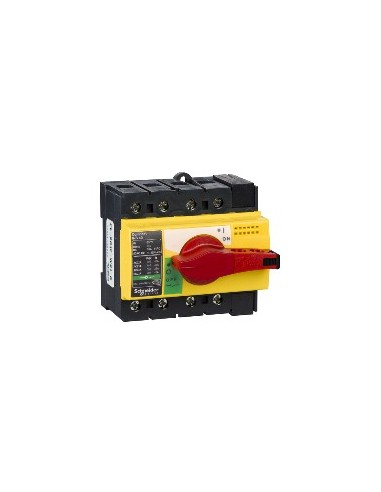

Red 4P Interpact INS40 Isolating Switch

Compact 4P isolating switch from the ComPact range, designed for safe disconnection of electrical circuits in industrial and commercial installations. Its DIN rail mounting and fixed structure allow direct integration into electrical panels. Features a rotary handle with red color for clear identification of operational status.

Technical specifications

• Number of poles: 4P
• Network type: AC (Alternating Current)
• Network frequency: 50/60 Hz
• Rated operating current: 40 A (AC-22A, state 1) at 500 V AC, 40 A (AC-23A, state 1) at 500 V AC, 40 A (DC-22A, state 1) at 250 V DC, 4 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 40 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA (isolating switch only) at 500 V AC 50/60 Hz
• Rated operating voltage: 500 V AC 50/60 Hz, 250 V DC
• Switching capability: Yes
• Contact position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary handle
• Handle color: Red
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front part
• Cable cross-section: 1.5…50 mm²
• Maximum power: 11 kW (220/240 V AC), 18.5 kW (500/525 V AC), 20 kW (380/415 V AC), 22 kW (440 V AC)
• Service type: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 190 mm x 115 mm x 55 mm
• Permissible short-time current: 0.067 kA (20 s), 1.73 kA (3 s), 3 kA (1 s), 5.5 kA (30 s)
• Mechanical durability: 20,000 cycles
• Electrical durability: 1,500 cycles (AC-22A, AC-23A, DC-22A, DC-23A)
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.6 kg
• Compatibility code: INS40
• Standards: Instantaneous and demand values En > 40 A
• Product certifications: KEMA-KEUR, CCC
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container.
