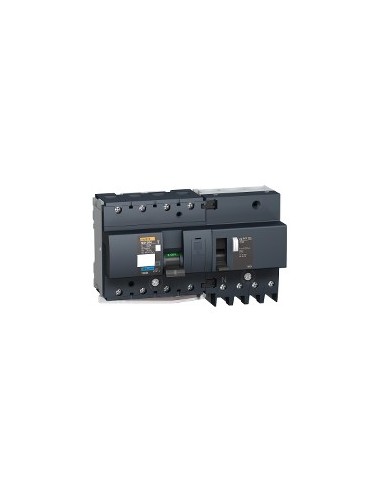

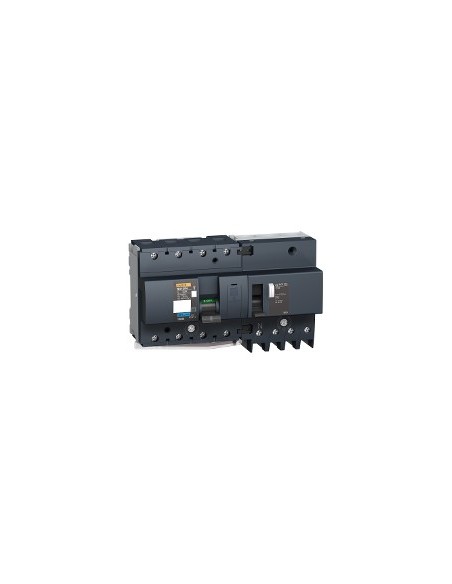

Block Vigi 4P 63A 30mA NG125 type AC

Vigi NG125 4P block with nominal current of 63 A, designed for earth leakage protection in single-phase and three-phase electrical installations.

Technical features

• Number of poles: 4P
• Nominal current [In]: 63 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• Protection class: Type AC
• Rated operating voltage [Ue]: 230...415 V AC 50/60 Hz
• Rated insulation voltage [Ui]: 690 V AC 50/60 Hz in accordance with EN>50 A
• Impulse voltage withstand [Uimp]: 8 kV in accordance with EN>50 A
• Mounting support: Symmetrical 35 mm DIN rail
• Connection to MCB: Via screws
• Step distance: 9 mm
• Height: 118 mm
• Width: 189 mm
• Depth: 81 mm
• Weight: 0.45 kg
• Electrical durability: 10,000 cycles in accordance with EN>50 A
• Connections - terminals: Tunnel-type terminals 1…35 mm² flexible, 1.5…50 mm² rigid
• Cable stripping length: 20 mm
• Tightening torque: 3.5 N·m
• Protection rating: IP40 in accordance with EN>50 A
• Contamination degree: 3 in accordance with EN>50 A
• Electromagnetic compatibility: Impulse resistance 8/20 µs, 3000 A in accordance with EN>50 A
• Tropicalization: 2 in accordance with IEC 60068-1
• Relative humidity: 95% at 55 °C
• Maximum operating altitude: 2000 m
• Standards: EN>50 A
• Sustainable offering status: Green Premium product
• EU RoHS Directive: Compliant
• REACh Regulation: Reference does not contain SVHC
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Product outside the scope of China RoHS
• WEEE: Must be disposed of according to specific system in the EU
