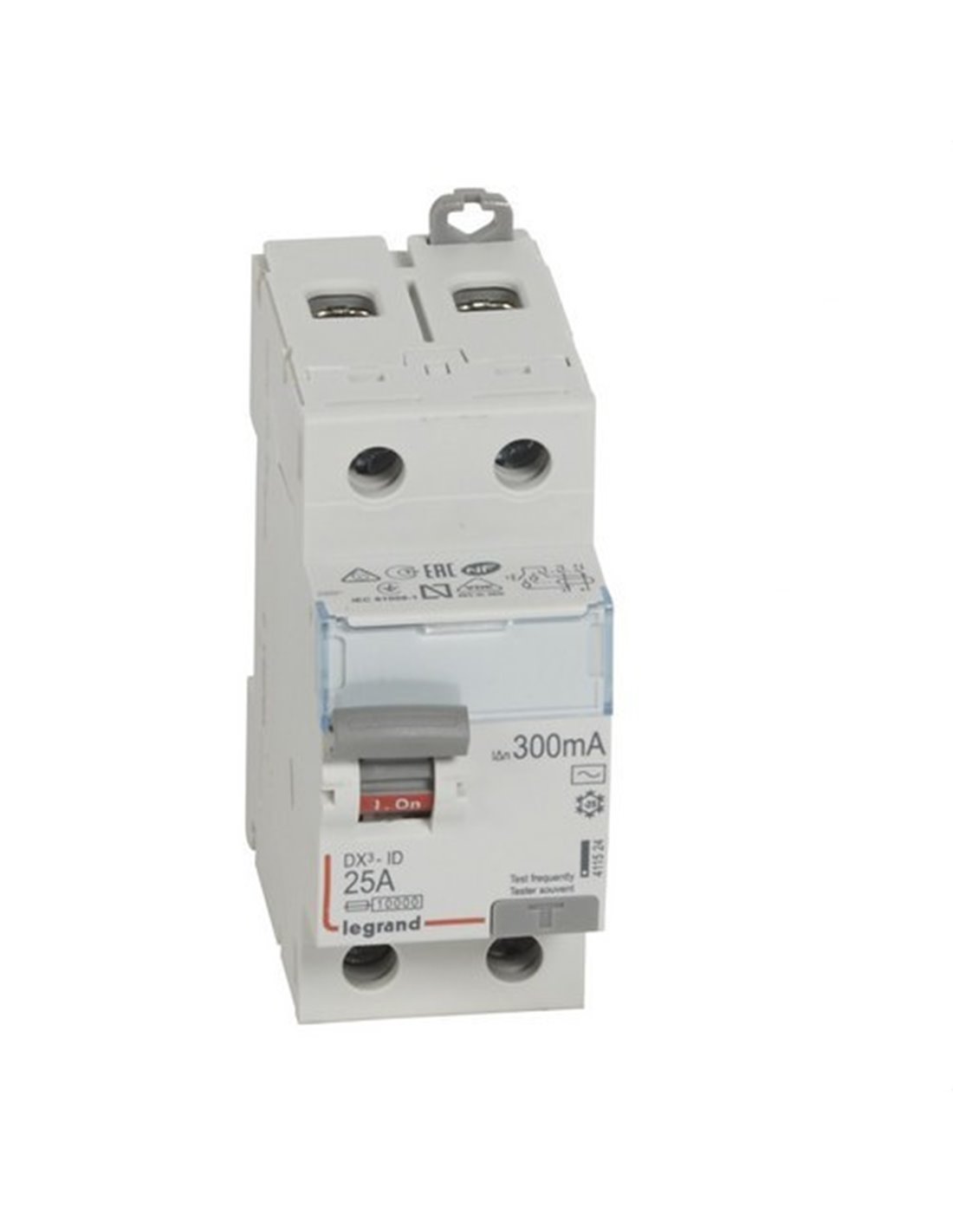

Differential switch DX3 2/25/300AC

The DX3 2/25/300AC RCD is a 230V~ bipolar RCD with a sensitivity of 300 mA and a nominal current of 25A. It complies with the UNE EN 61008-1 standard and is of the AC type, which means that it detects alternating component defects. It is suitable for specialized circuits such as kitchens, hobs, washing machines, among others. It is also compatible with auxiliaries, motorized controls and DX³ connection modules (except Type B) and has a screw/screw connection with top input and bottom output via screw terminals. Some of its technical characteristics are the following:

• Type of differential: AC
• Sensitivity: 300 mA
• Nominal current: 25A
• Number of modules: 2
• Connection: screw/screw with protected terminals
• Complies with the UNE EN 61008-1 standard
• Suitable for specialized circuits
• Compatible with auxiliaries, motorized controls and DX³ connection modules (except Type B)
