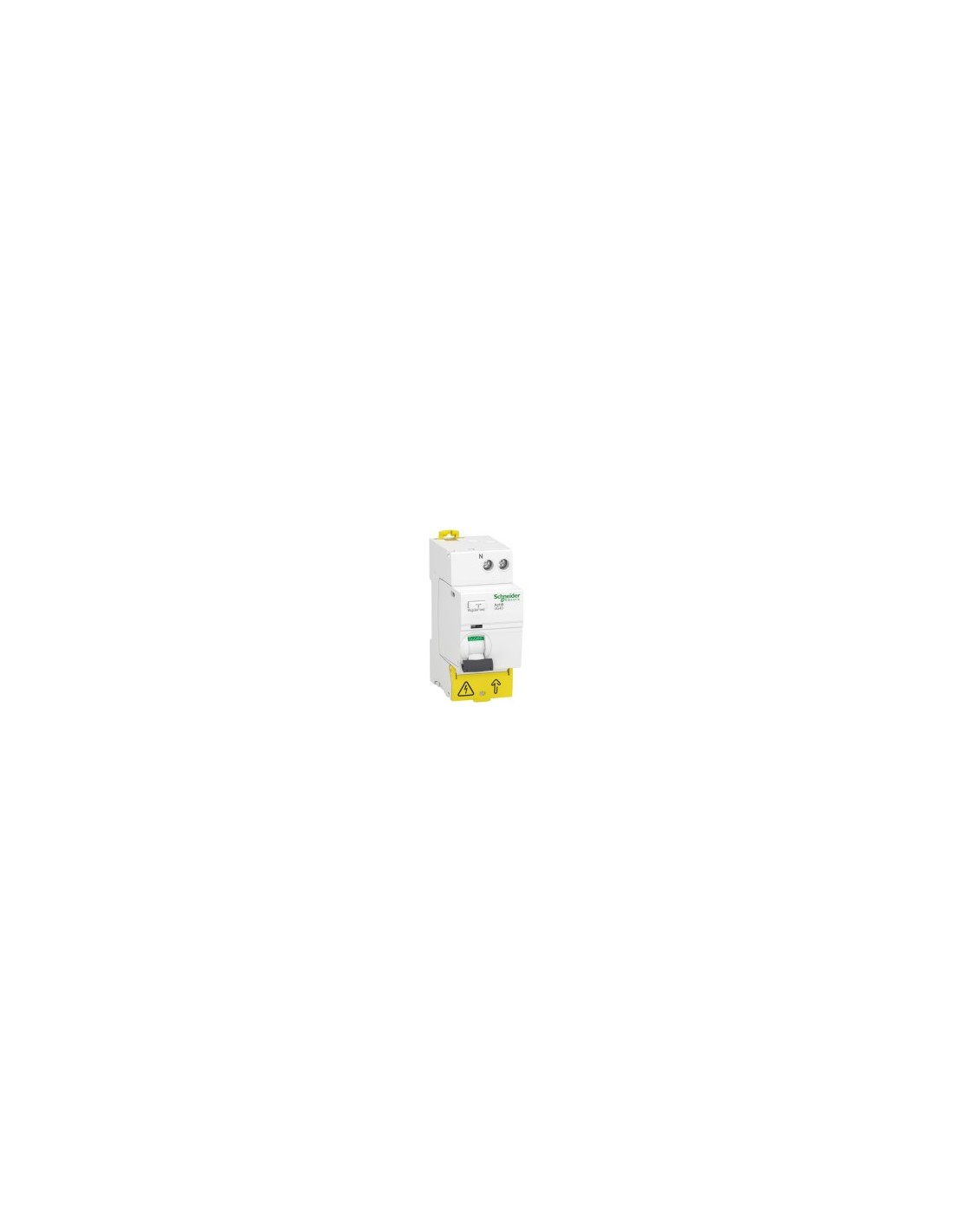

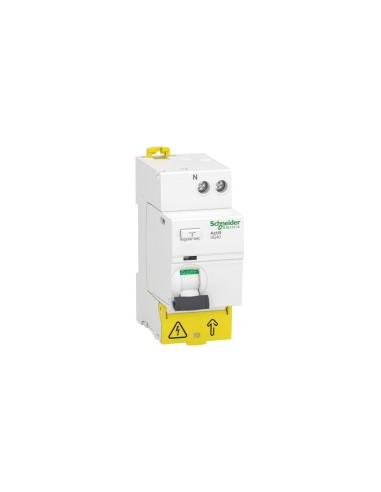

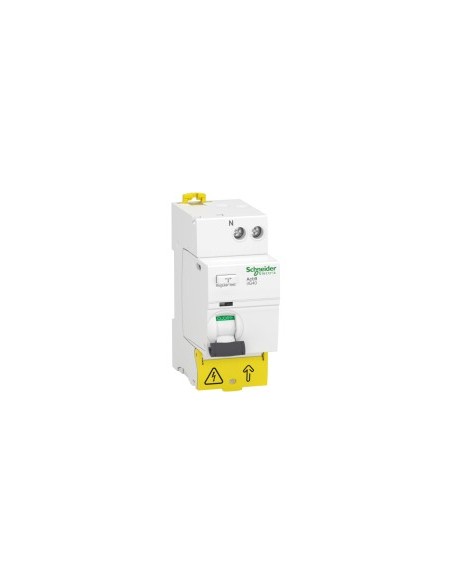

Differential switch Acti9 iIG40 1PN 40A 30mA AC type

AC-type residual current circuit breaker, 1P+N, designed for main distribution installations in single-phase 220-240 V AC, 50 Hz networks. Provides instantaneous earth leakage protection with 30 mA sensitivity, suitable for AC circuits. Its 1P + N design with neutral on the left ensures safe and efficient connection.

Technical Features

• Number of poles: 1P + N
• Neutral position: Left
• Rated current [In]: 40 A
• Rated operating voltage [Ue]: 220...240 V AC 50 Hz
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• Protection class: Type AC
• Surge voltage withstand [Uimp]: 6 kV
• Rated insulation voltage [Ui]: 500 V AC 50 Hz
• Breaking capacity: Yes, according to Icu
• Connection and disconnection capacity: Idm 1500 A
• Conditional short-circuit current: 10000 A
• Protection degree IP: IP20 (adjustable to Ig IP40 - cable type: modular enclosure)
• Contact position indicator: Yes
• Control type: Handle
• Mounting type: Clip-adjustable
• Mounting support: DIN rail
• Spacing: 9 mm, 4 steps
• Height: 85 mm
• Width: 36 mm
• Depth: 74 mm
• Weight: 184 g
• Color: White
• Mechanical durability: 20000 cycles
• Electrical durability: 15000 cycles
• Terminals: Tunnel-type (lower: 1…35 mm² rigid, 1…25 mm² flexible; upper: 1…16 mm² rigid, 1…10 mm² flexible)
• Stripping length: 14 mm for upper or lower connection
• Tightening torque: 3.5 N·m (lower), 2 N·m (upper)
• Operating ambient temperature: -5…60 °C
• Storage ambient temperature: -40…85 °C
• Maximum operating altitude: 2000 m
• Relative humidity: 95 % at 55 °C
• Contamination degree: 3
• Electromagnetic compatibility: Surge immunity 8/20 µs, 250 A (according to EN/IEC 61008-2-1)
• Standards: EN/IEC 61008-2-1
• Certifications: CE, NF
• EU RoHS Directive: Compliant
• REACH Regulation: No SVHC
• Halogen content: Halogen-free product
• Waste electrical and electronic equipment (WEEE): Must be disposed of according to specific EU system
• RoHS exemption information: Yes
• China RoHS regulation: Product outside China RoHS scope
• Sustainable offering status: Green Premium product
• Lockable closing device: Yes
