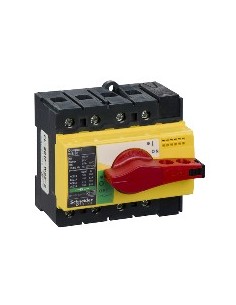

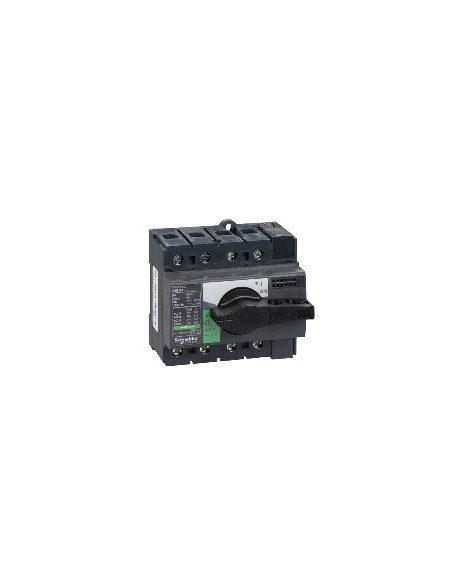

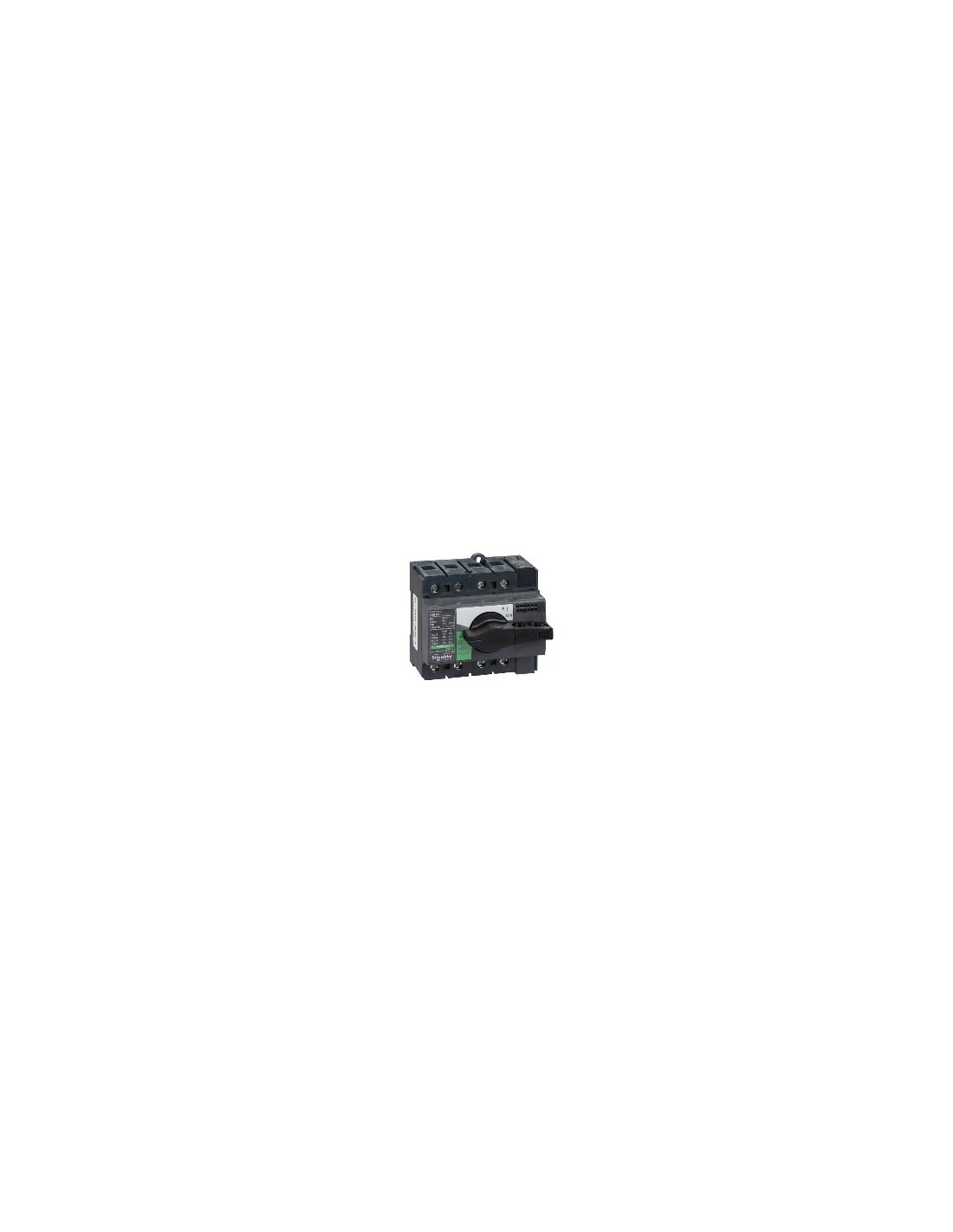

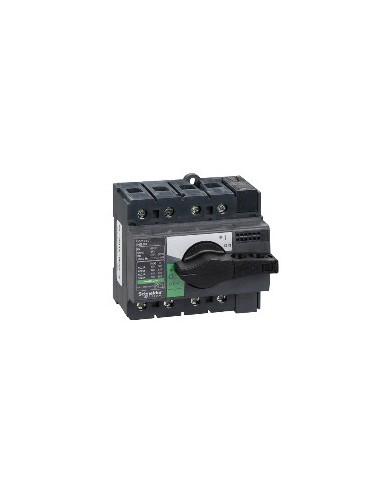

4P Isolating Switch Interpact INS80

4P isolating switch from the ComPact range, designed for control and isolation of electrical circuits in industrial and commercial installations. Its fixed structure and DIN rail mounting allow for compact and safe installation. Suitable for use in AC and DC applications, with a short-circuit breaking capacity of 15 kA under standard conditions.

Technical Features

• Number of poles: 4P
• Network type: AC, DC
• Supply frequency: 50/60 Hz
• Rated operating current: AC-23A, state 1 40 A AC 50/60 Hz 500 V; AC-23A, state 1 63 A AC 50/60 Hz 440/480 V; AC-22A, state 1 80 A AC 50/60 Hz 220/240 V; AC-22A, state 1 80 A AC 50/60 Hz 380/415 V; AC-22A, state 1 80 A AC 50/60 Hz 440/480 V; AC-22A, state 1 80 A AC 50/60 Hz 500 V; AC-23A, state 1 72 A AC 50/60 Hz 380/415 V; AC-23A, state 1 80 A AC 50/60 Hz 220/240 V; DC-22A, state 1 80 A DC 125 V 2 poles in series; DC-23A, state 1 80 A DC 125 V 2 poles in series; DC-22A, state 1 80 A DC 250 V 4 poles in series; DC-23A, state 1 80 A DC 250 V 4 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 80 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA for isolating switch only 500 V AC at 50/60 Hz; 75 kA with upstream circuit breaker 500 V AC at 50/60 Hz
• Rated operating voltage: 500 V AC 50/60 Hz; 250 V DC
• Breaking capability: Yes
• Position indicator: Yes
• Visible breaking: No
• Contamination degree: 3
• Control type: Rotary handle
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Frontal
• Bottom connection: Front part
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 22 kW at 500/525 V AC 50/60 Hz; AC-23, state 1 22 kW at 220/240 V AC 50/60 Hz; AC-23, state 1 37 kW at 380/415 V AC 50/60 Hz; AC-23, state 1 37 kW at 440 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions: 190 mm x 115 mm x 55 mm
• Withstand current: 0.067 kA for 20 s electrical durability; 1.73 kA for 3 s electrical durability; 3 kA for 1 s electrical durability; 5.5 kA for 30 s electrical durability
• Mechanical durability: 20000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles; AC-23A, state 1 1500 cycles; DC-22A, state 1 1500 cycles; DC-23A, state 1 1500 cycles
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.6 kg
• Compatibility code: INS80
• Standards: Instantaneous and demand values En > 40 A
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container.
