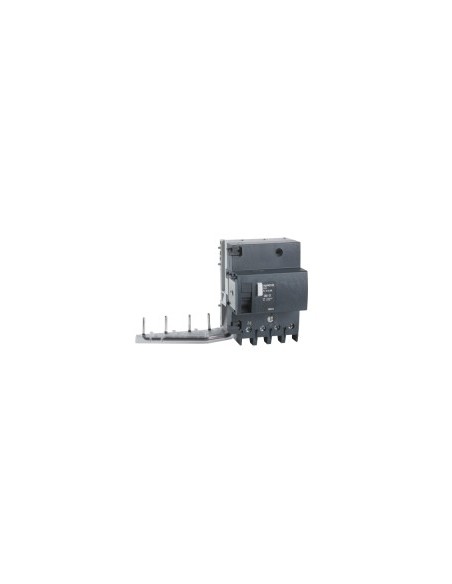

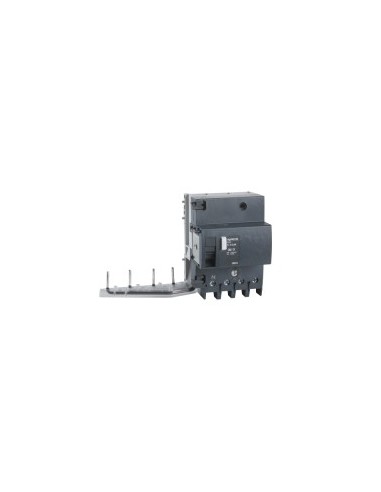

Vigi NG125 4P block with nominal current 63 A and earth leakage sensitivity of 30 mA, designed for residual current protection in electrical installations of small businesses. Operates on AC 50/60 Hz networks with nominal operating voltage between 230 and 415 V, ensuring instantaneous tripping in case of leakage. Its trip technology is voltage-independent, guaranteeing stable operation under network voltage variations.
Technical characteristics
- Number of poles: 4P
- Nominal current [In]: 63 A
- Network type: AC
- Earth leakage sensitivity: 30 mA
- Protection delay: Instantaneous
- System location: Output
- Network frequency: 50/60 Hz
- Nominal operating voltage [Ue]: 230...415 V AC 50/60 Hz
- Trip technology: Voltage-independent
- Nominal insulation voltage [Ui]: 690 V AC 50/60 Hz according to En> 50 A
- Surge voltage withstand [Uimp]: 8 kV according to En> 50 A
- Mounting support: Symmetrical 35 mm DIN rail
- Electrical connection to MCB: Via screws
- Spacing: 9 mm
- Height: 118 mm
- Width: 189 mm
- Depth: 81 mm
- Weight: 0.45 kg
- Electrical durability: 10000 cycles according to En> 50 A
- Connections - terminals: Tunnel type 1…35 mm² flexible, 1.5…50 mm² rigid
- Cable stripping length: 20 mm
- Torque: 3.5 N·m
- Compatibility: Terminal
- Standards: En> 50 A
- Protection degree IP: IP40 according to En> 50 A
- Contamination degree: 3 according to En> 50 A
- Electromagnetic compatibility: Impulse resistance 8/20 µs, 3000 A according to En> 50 A
- Tropicalization: 2 according to IEC 60068-1
- Relative humidity: 95 % at 55 °C
- Maximum operating altitude: 2000 m
- Sustainable offering status: Green Premium product
- REACH Regulation: Does not contain SVHC
- EU RoHS Directive: Compliant
- Mercury-free: Yes
- RoHS exemptions: Yes
- China RoHS: Outside the scope of China RoHS
- WEEE: Must be disposed of according to specific system in the EU
