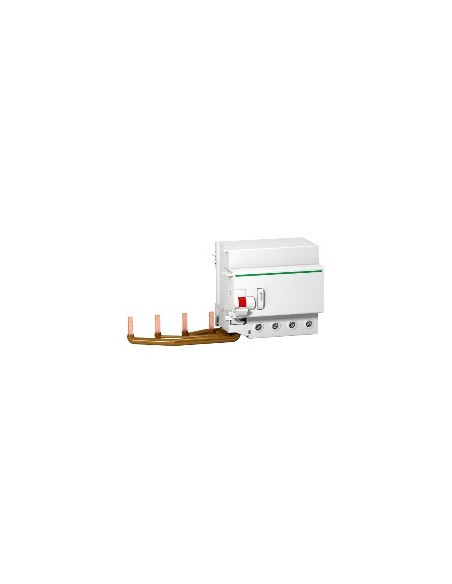

Adjustable Clip-On 4P 125A 300mA Vigi Block
Adjustable Clip-On 4P 125A 300mA Vigi Block

Adjustable Clip-On 4P 125A 300mA Vigi Block

Available In stock 10 Items Reference IMPO A9N18555
€408.35
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20
  • Colour White

4P Vigi block with nominal current of 125 A, earth leakage sensitivity of 300 mA, type A-SI, for AC 50 Hz installations. Operating voltage 230...415 V AC, with voltage-independent tripping technology. Mounting on 35 mm DIN rail, connection via screws, resistance to voltage surges of 6 kV.

Description

4P Vigi C120 block with nominal current of 125 A, designed to protect electrical installations in small commercial environments. Its voltage-independent tripping technology ensures immediate response to residual current leakage, guaranteeing safety under AC 50 Hz grid conditions.

Technical Features

  • Number of poles: 4P
  • Rated current [In]: 125 A
  • Network type: AC
  • Earth leakage sensitivity: 300 mA
  • Protection delay: Instantaneous
  • Protection class: Type A-SI
  • Rated operating voltage [Ue]: 230...415 V AC 50 Hz
  • Rated insulation voltage [Ui]: 500 V AC 50/60 Hz in accordance with EN > 40 A
  • Impulse withstand voltage [Uimp]: 6 kV in accordance with EN > 50 A
  • System location: Output
  • Grid frequency: 50 Hz
  • Tripping technology: Voltage-independent
  • Mounting support: Symmetrical 35 mm DIN rail
  • Mounting type: Adjustable clip-on
  • Electrical connection to MCB: Via screws
  • Terminals: Tunnel type 1…35 mm² flexible, 1…50 mm² rigid
  • Stripped cable length: 15 mm
  • Tightening torque: 3.5 N·m
  • Height: 95 mm
  • Width: 198 mm
  • Depth: 73 mm
  • Weight: 0.58 kg
  • Color: White
  • Mechanical durability: 20000 cycles
  • Protection degree IP: IP20
  • Contamination degree: 3 in accordance with EN > 50 A
  • Operating ambient temperature: -25…60 °C
  • Storage ambient temperature: -40…60 °C
  • Standards: EN 61009
  • Compatibility: Terminal
  • Market segment: Small businesses
  • REACH Regulation: Does not contain SVHC
  • EU RoHS Directive: Compliant
  • RoHS Exemptions: Yes
  • China RoHS: Product outside scope
  • WEEE: Must be disposed of via specific systems in the EU

Product Details

Dimensiones

Width 198 mm
Long 95 mm
Depth 73 mm
Weight (kg) 0,58 kg

Eléctrico

Nominal voltage (V) 230...415 V AC
Current type AC
Rated current (A) 125

Protección

Protection IP20

Otras

Frequency 50 Hz
Sensitivity 300 mA
EAN 3606480376580
Manufacturer SCHNEIDER
No. of poles 4P
Reference IMPO A9N18555
Cable cross-section (mm²) 35 mm²
Colour White

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO A9N18555
EAN 3606480376580
10 Items
