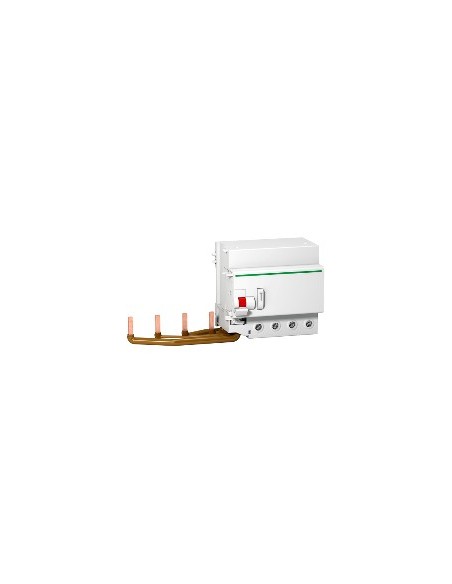

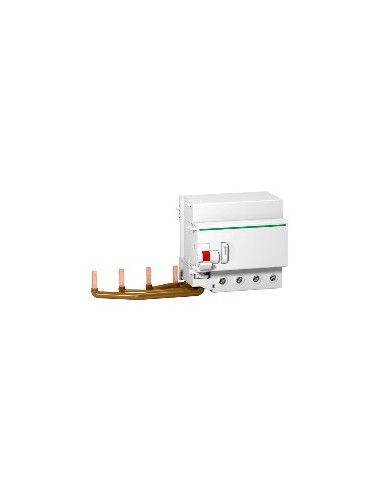

Dardo Plus 4P 125A 30 mA Instantaneous RCD Module

Dardo Plus RCD module designed to protect electrical installations in small commercial environments.

Technical Features

• Number of poles: 4P
• Rated current [In]: 125 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• Protection class: Type A-SI
• System location: Output
• Network frequency: 50 Hz
• Nominal operating voltage [Ue]: 400...415 V AC 50 Hz
• Tripping technology: Voltage-independent
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz according to EN > 40 A
• Impulse withstand voltage [Uimp]: 6 kV according to EN > 50 A
• Mounting type: Clip-adjustable
• Mounting support: Symmetrical 35 mm DIN rail
• Electrical connection to MCB: By screws
• Spacing: 9 mm
• Height: 95 mm
• Width: 198 mm
• Depth: 73 mm
• Weight: 0.58 kg
• Color: White
• Mechanical durability: 20000 cycles
• Connections - terminals: Tunnel-type terminals 1…35 mm² flexible, 1…50 mm² rigid
• Stripping length: 15 mm
• Tightening torque: 3.5 N·m
• Compatibility: Terminal
• Standards: EN 61009
• Protection degree IP: IP20
• Contamination degree: 3 according to EN > 50 A
• Operating ambient temperature: -25…60 °C
• Storage ambient temperature: -40…60 °C
• REACH Regulation: Does not contain SVHC
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS Exemptions: Yes
• China RoHS Regulation: Product outside the scope of China RoHS
• WEEE: Must be disposed of according to specific system in the EU
