List of products by brand SCHNEIDER

Schneider

Showing 1-24 of 6376 item(s)

Last units

Industrial automation

IMPO TM3XREC1

Remote receiver module of the Modicon TM3 range, compatible with M221, M241, M251 and M340 drivers. Power 24 V DC with consumption of 40 mA, supports up to 7 I/O expansion modules. Connection by RJ45 cable up to 5 m, degree of protection IP20, operating between -10°C and 55°C.

Relay base RUM 2/3 C/O with separate terminals

Last units

Interface and miniature relays

Relay base RUM 2/3 C/O with separate terminals

IMPO RUZSF3M

€9.87

Mounting base for Harmony RUM electromechanical relays with separate terminals, compatible with 2 and 3 C/O relays. Designed for screw connection, with nominal current of 12 A and maximum operating voltage of 250 V. Made of flat contacts, it supports a 35 mm DIN panel or rail fixation.

Industrial socket 3P+E 16A straight 380...415 V

Last units

CETAC Plugs and Sockets

Industrial socket 3P+E 16A straight 380...415 V

IMPO PKF16G734

€17.52

Industrial panel-mount socket, 3P+E, 16 A, 380...415 V AC, with non-loosening screw terminals, engineered self-extinguishing polymer housing, bronze contacts, IP67 and IK08 protection rating, compliant with IEC 60309-1 and IEC 60309-2 standards, designed for industrial environments and demanding environmental conditions.

Last units

Accessories for electric boxes

Spacial SF 500 mm bar support

IMPO NSYAS500

€128.31

SF Space Bar holder of 500 mm nominal height, designed for vertical mounting at the bottom of the cabinet. Made of plastic insulating support and steel metal support. Compatible with the Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH ranges. Height: 66 mm, depth: 39 mm, fixing centers: 450 mm.

Miniature circuit breaker 1P 25 A C curve

Last units

Miniature circuit breakers

Miniature circuit breaker 1P 25 A C curve

IMPO M9F52125

€83.83

Multi 9 C60BP miniature automatic switch, 1P, 25 A, curve C, with cutting capacity of 10 kA in 277 V AC according to UL 489. Designed for thermal-magnetic protection in AC circuits, compatible with IEC, GB 14048.2, UL 489 and CSA C22.2 No 5.

Miniature Circuit Breaker 3P 25 A Curve C

Last units

Miniature circuit breakers

Miniature Circuit Breaker 3P 25 A Curve C

IMPO M9F22325

€186.36

Miniature 3P circuit breaker with Curve C, breaking capacity of 10 kA at 480Y/277 V DC, rated current 25 A at 25 °C, thermal-magnetic technology, DIN rail mounting, protection degree IP20, suitable for industrial environments with operating temperatures from -30 °C to 70 °C.

Coil for TeSys D Contactor LXD3 380 V AC 50/60 Hz

Last units

Contactors

Coil for TeSys D Contactor LXD3 380 V AC 50/60 Hz

IMPO LXD3Q7

€59.19

Tesys D LXD3 contactor coil for electrical installations with control voltage from 380 V AC to 50/60 Hz. Compatible with LC1DT40A to LC1DT65A contactors. Average strength of 512 ↔ at 20 °C, closed circuit inductance of 29.9 H.

Last units

Transformers

Current Transformer 250 A 4-Pole

IMPO LV431570

€749.29

4-pole current transformer with a rated current of 250 A and a transformation ratio of 250/5 A, designed for AC system control applications. Accuracy class 1, rated operating voltage 530 V, frequency 50/60 Hz. Power consumption 1.1 VA, connection via 2.5 mm² cable connector.

Last units

Differential

Differential Alarm Module VigiPacT 3P 220-440 VAC 30mA-10A

IMPO LV429498

€760.42

Vigi Auxiliary Differential Alarm Module for ComPact NSX100/160/250 and CVS100/160/250 switches, 3 poles, nominal voltage 200-440 V AC, frequency 50/60 Hz, rated current up to 250 A, adjustable sensitivity from 30 mA to 10 A, class A and AC, overvoltage category IV, class II electric shock protection.

TeSys LC1G 400A 4P 48-130V AC-DC Contactor

Last units

Contactors

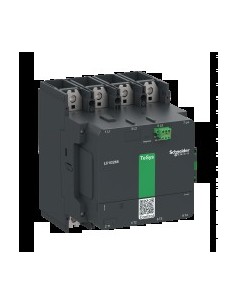

TeSys LC1G 400A 4P 48-130V AC-DC Contactor

IMPO LC1G4004EHEN

€2,103.59

Standard TeSys LC1G 400A 4P contactor with 48-130V AC-DC coil, designed for power switching in industrial installations. Supports nominal current of 400 A in AC-3 at 440 V, with a rated breaking capacity of 3480 A. Features bidirectional surge limiter, IP41 protection, and certifications to IEC, UL, and CE.

Last units

Time switches and staircase timers

Acti 9 Programming Kit for ITA 1.5 m

IMPO CCT15950

€142.61

Programming kit for Acti 9 ITA devices designed for applications in buildings. Includes a 1.5 m USB cable and a programming device with a mini-B connection. Compatible with ITA annual timed switches and ITA memory keys. Powered by PC USB interface.

ComPacT NSX80 DC PV 4P 80A Automatic Circuit Breaker

Last units

Miniature circuit breakers

ComPacT NSX80 DC PV 4P 80A Automatic Circuit Breaker

IMPO C10F4TM080D1

€584.07

Automatic ComPacT NSX100F 4P 80A switch for direct current photovoltaic installations. It supports nominal operating voltage of 1000 V DC, Icu cutting capacity of 10 kA in 1000 V DC, with thermal-magnetic protection and adjustable overload current adjustment between 0.7 and 1.0 times In.

40P SUB-D connector 25, 1.5 m terminal block

Last units

Industrial automation

40P SUB-D connector 25, 1.5 m terminal block

IMPO BMXFCA152

€89.33

Pré-formed cab with 40-way SUB-D 25 connector for connection between sub-base and module in Modicon X80 systems. 1.5 m length, compatible with BMXART0414, BMXART0814 and ABE7CPA412. Designed for industrial installations with proactive compliance RoHS EU, without toxic heavy metals or mercury.

16-channel electromechanical relay base 24 V DC

Last units

Industrial automation

16-channel electromechanical relay base 24 V DC

IMPO ABE7R16S111

€241.67

Soldered electromechanical relay base ABE7 for Modicon Atrium system, with 16 channels, 24 V DC power supply, normally open contact per channel, maximum current per common 12 A, electrical durability 500 000 cycles, protection rating IP41, fixed by clips or screws on 35 mm DIN rail.

Last units

Differential

RCBO 4P 10 A Curve C 30 mA

IMPO A9D77410

€403.52

Differential switch with overcurrent protection (RCBO) 4P, 10 A, curve C, earth leakage sensitivity 30 mA, breaking capacity 6000 A Icn at 415 V AC, 50 Hz, with thermal-magnetic technology and independent instantaneous trip from voltage, designed for industrial and commercial installations in distribution cabinets.

Acti9 NG125N 3P 20 A C Curve Automatic Switch

Last units

Miniature circuit breakers

Acti9 NG125N 3P 20 A C Curve Automatic Switch

IMPO 18634

€189.85

Miniature automatic switch Acti9 NG125N, 3 poles, 20 A, C curve, with breaking capacity Icu of 25 kA at 380–415 V AC, thermal-magnetic design, DIN 35 mm rail mounting, suitable for small commercial installations with IP20 protection and pollution degree 3.

Acti9 NG125N 3P 16 A C Curve Automatic Switch

Last units

Miniature circuit breakers

Acti9 NG125N 3P 16 A C Curve Automatic Switch

IMPO 18633

€144.56

Miniature automatic switch Acti9 NG125N, 3 poles, 16 A, C curve, with breaking capacity Icu of 25 kA at 380–415 V AC, designed for use in small commercial applications.

Miniature Circuit Breaker Acti9 NG125N 2P 80 A Curve C

Last units

Miniature circuit breakers

Miniature Circuit Breaker Acti9 NG125N 2P 80 A Curve C

IMPO 18629

€127.34

Miniature circuit breaker Acti9 NG125N, 2 poles, rated current 80 A at 40 °C, Curve C, breaking capacity 25 kA at 380–415 V AC, with thermal-magnetic protection, DIN 35 mm rail mounting, suitable for installations in small businesses and buildings, featuring position indicator and integrated lock.

Analog input kit 0-10 V 2 channels 10 bits

Last units

Industrial automation

Analog input kit 0-10 V 2 channels 10 bits

IMPO STBAVI1255K

€334.42

Basic analog input kit for Modicon STB systems, with 2 voltage channels 0...10 V, 10 bit resolution, single 25 Hz pass filter. It supports cold exchange, 5 ms response time and 10 ms upgrade. Isolation between channels and 1500 V logic bus for 1 minute.

ABS Industrial Box Thalassa TBS 341x291x168 mm

Last units

Industrial electrical paneling

ABS Industrial Box Thalassa TBS 341x291x168 mm

IMPO NSYTBS342916H

€130.84

One-piece molded ABS industrial box, with IP66 and IK07 protection grade, designed for demanding environments. Outside height 341 mm, width 291 mm and depth 168 mm. Made of impact-resistant and corrosion-resistant material, with TÜV certification and compliance with IEC 62208 standards.

Steel industrial box 150x300x120 mm IP66 IK10

Last units

Industrial electrical paneling

Steel industrial box 150x300x120 mm IP66 IK10

IMPO NSYSBM153012

€101.19

Industrial steel case with blind door, spatial design SBM, dimensions 150 x 300 x 120 mm, wall mount. Made of steel sheet with powdered polyester finish RAL 7035. IP66 and IK10 protection, compatible with IEC 62208 standards. Operating temperature from -35 to 80 °C. Weight: 2.1 kg.

Mounting brackets for PanelSeT SFN/SM channel steel

Last units

Accessories for electric boxes

Mounting brackets for PanelSeT SFN/SM channel steel

IMPO NSYMCDFIX

€167.26

Set of 6 fixing brackets for panel set SFN/SM made of zinc-coated steel, designed for DIN rail mounting. Compatible with Space SMHF and Space SF ranges. Height adjustable between 85 mm and 115 mm, width from 50 mm to 155 mm, depth from 91.5 mm to 145 mm.

Coil for contactor TeSys D LX1D8 230 V AC 50/60 Hz

Last units

Contactors

Coil for contactor TeSys D LX1D8 230 V AC 50/60 Hz

IMPO LX1D8P7

€101.45

Tesys D contactor coil model LX1D8, designed for LC1D115 and LC1D150 contactors. It works with AC 230 V control voltage at 50/60 Hz, average strength from 9895 to 20 °C and closed circuit inductance of 210.72 H.

Last units

Transformers

Current Transformer 600 A 4-Pole

IMPO LV432862

€1,531.57

Current transformer block and voltage output, 4-pole, 600 A, accuracy class 0.5, transformation ratio 600/5 A, rated operating voltage 530 V AC, frequency 50/60 Hz, cable connector 2.5 mm², protection degree IP40, RoHS EU compliant, mercury-free, designed for installation in ComPact NSX400...630 DC range.
