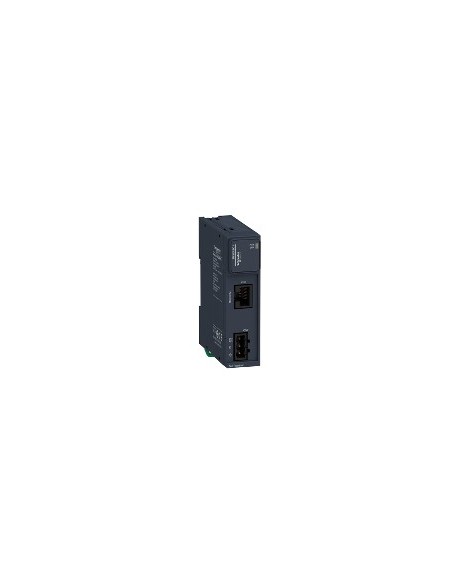

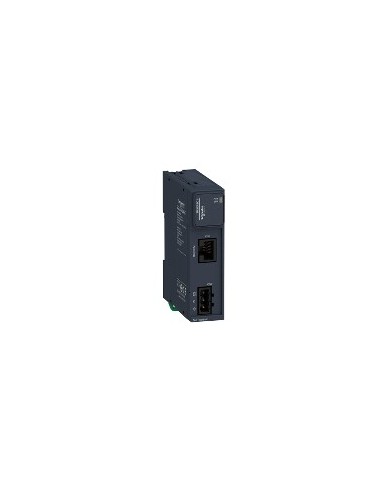

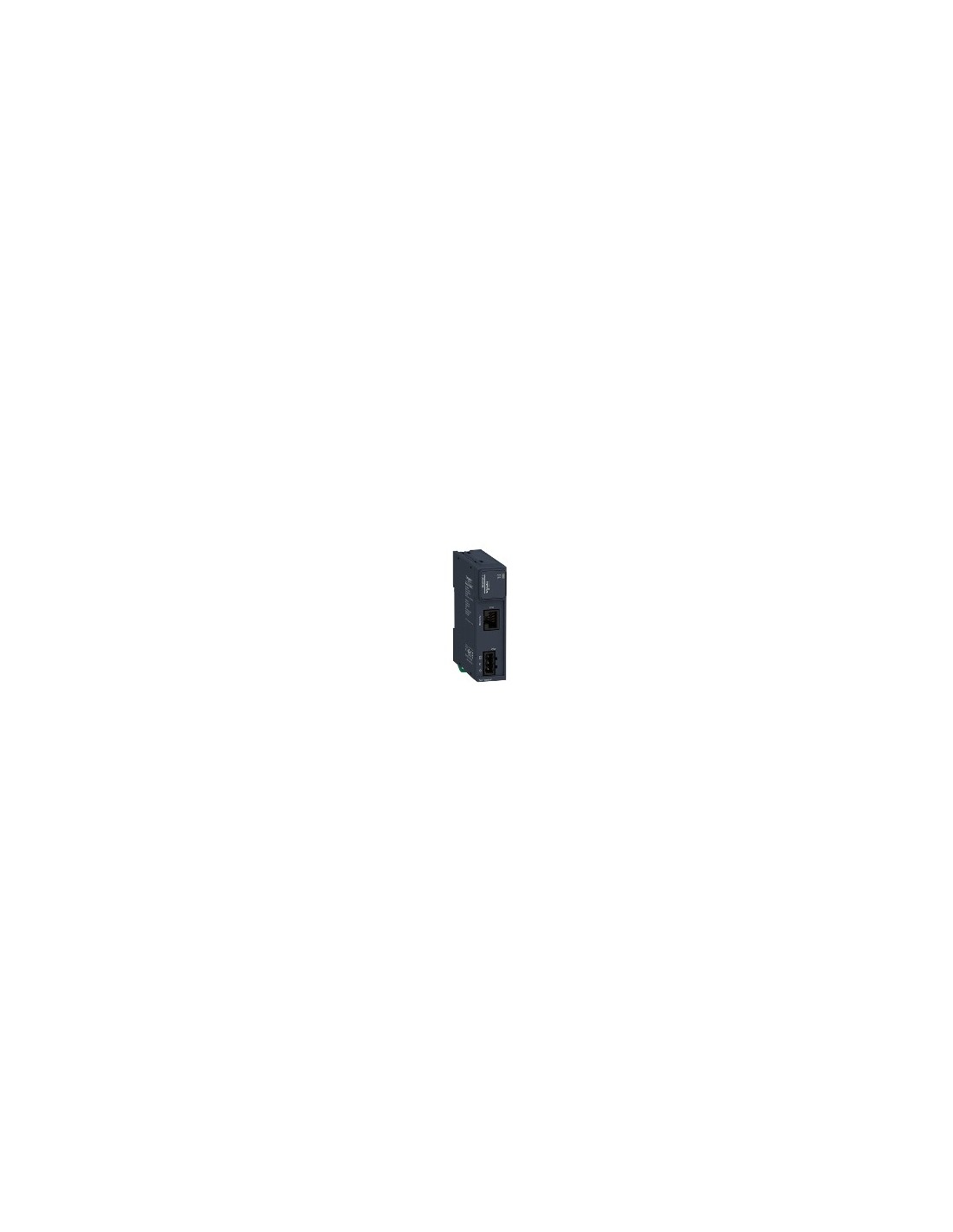

Remote Receiver Module Modicon TM3

Remote receiver module of the Modicon TM3 range, designed to integrate into industrial automation systems by connecting to a bus transmitter. Compatible with Modicon M221, M241, M251 and M340 drivers, it allows the expansion of inputs/outputs in industrial environments. It works with 24 V DC external power, with tolerance of ±15...20%.

Technical characteristics

• Nominal power voltage: 24 V DC per external power supply - cable type: - 15...20 %)
• Maximum number of I/O expansion modules: 7
• Output current power supply: 560 mA 5 V for expansion bus, 560 mA 24 V for expansion bus
• Current consumption: 40 mA in 24 V DC via bus connector
• Maximum power dissipation: 1 W
• Cable distance between devices: 0.5...5 m with extension cable and clamping capacity: 2 RJ45 between receiver and transmitter
• Local markings: Power supply, status 1 LED - cable type: green; ligação status, status 1 LED - cable type: green
• Connector: RJ45 for bus transmitter connection, removable screw terminal, 3 terminals for 24 V DC power supply connection
• Marked: EC
• Resistance to electrostatic discharges: 8 kV in air, 6 kV in contact (IEC 61000-4-2)
• Resistance to electromagnetic fields: 10 V/m (80 MHz...1 GHz), 3 V/m (1.4 GHz...2 GHz), 1 V/m (2...2.7 GHz) (IEC 61000-4-3)
• Resistance to disturbances conducted by radiofrequency fields: 10 V (0.15...80 MHz), 3 V in specific frequencies (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) (Marine specification)
• Radiated emissions: 40 dBμV/m QP Class A (10 m) at 30...230 MHz, 47 dBμV/m QP Class A (10 m) at 230...1000 MHz (IEC 55011)
• Mounting bracket: Type of stopper TH35-15 lane (IEC 60715), TH35-7.5 lane (IEC 60715), plate or panel with fixing set
• Height: 90 mm
• Depth: 73.3 mm
• Width: 23.65 mm
• Product weight: 0.075 kg
• Standards: Class I Division 2 Groups A/B/C/D, CSA C22.2 No 214, Class I Division 2 Groups A/B/C, UL 1604, CSA C22.2 No 142, IEC 61131-2, UL 508
• Product certifications: Merchant Navy, GOST, C-Tick, CSA HazLoc, CE, UKCA, RCM, cULus generator
• Operating ambient temperature: -10...55 °C (horizontal installation), -10...50 °C (vertical installation)
• Storage ambient temperature: -40...70 °C
• Relative humidity: 5...95 % without condensation
• Degree of IP protection: IP20 with protective cover placed
• Degree of contamination: 2
• Maximum operating altitude: 0...2000 m
• Storage altitude: 0...3000 m
• Vibration resistance: 3.5 mm in 5...8.4 Hz in DIN lane, 3 gn in 8.4...150 Hz in DIN lane; 3.5 mm in 5...8.4 Hz in panel, 3 gn in 8.4...150 Hz in panel
• Shock resistance: 15 gn for 11 ms
• Sustainable supply status: Product Green Premium
• REACh Regulation: Contains SVHC over the threshold
• EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulations)
• No mercury: Yes
• RoHS China Regulations: X
• Information on RoHS exemptions: Yes
• WEEE: To be discarded according to specific system in the EU, not in garbage container
• No PVC: Yes
