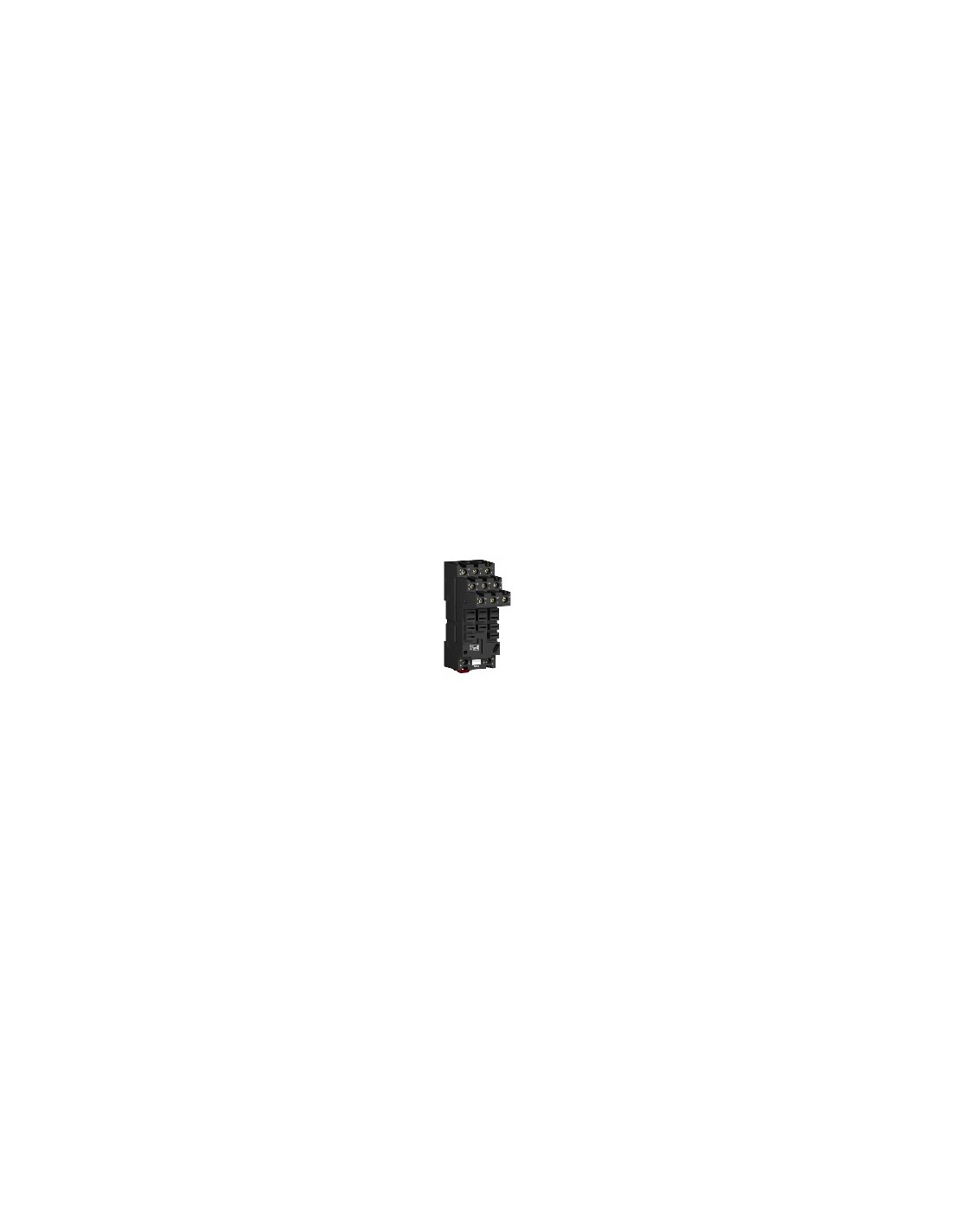

Relay base RUM 2/3 C/O with separate terminals

Relay base RUM 2/3 C/O with separate terminals

Relay base RUM 2/3 C/O with separate terminals

Last units In stock 1 Item

Reference IMPO RUZSF3M

€9.87

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

Mounting base for Harmony RUM electromechanical relays with separate terminals, compatible with 2 and 3 C/O relays. Designed for screw connection, with nominal current of 12 A and maximum operating voltage of 250 V. Made of flat contacts, it supports a 35 mm DIN panel or rail fixation.

Description

Harmony Electromechanical Relay Base type RUMF2/RUMF3 with separate terminals, designed for use in industrial control and automation systems. Compatible with 2 and 3 contacts C/O RUM plug-in relays, it offers a secure connection using screw connectors and a separate flat contact arrangement to facilitate installation and maintenance.

Technical characteristics

Compatibility: Relays with RUM plug-in mounting with clamping capacity: 2 C/O contact, 3 C/O contact
Pin shape: Flat
Type and composition of contacts: 3 C/O
Nominal current [In]: 12 A
Conventional thermal current [Ith]: 12 A
Nominal employment voltage [Ue]: < 250 V
Connections - terminals: Screw connectors
Tightening torque: < 1 N·m for M3.5 screws
Fixing mode: By screw - cable type: panel; Clip-on - cable type: symmetric DIN rail 35 mm
Width: 36 mm
Product weight: 0.095 kg
Degree of protection: IP20 according to EN/IEC 60529
Dielectric voltage: 2500 V
Operating ambient temperature: -40...55 °C
Storage ambient temperature: -40...85 °C
Standards: IEC 61984
Certifications: EC, CSA UL
Sustainable supply status: Product Green Premium
According to REACh without SVCC: Yes
EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulations)
Information on RoHS exemptions: Yes
WEEE: To be discarded according to specific EU collection system

Product Details

Dimensiones

Measures	36 mm
Weight (kg)	0,095 kg

Eléctrico

Nominal voltage (V)	250 V
Rated current (A)	12

Protección

Protection	IP20

Otras

EAN	3389119403252
Manufacturer	SCHNEIDER
Range	Industrial
Reference	IMPO RUZSF3M

Información legal

Fabricante	SCHNEIDER
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	IMPO RUZSF3M
EAN	3389119403252

In stock 1 Item
