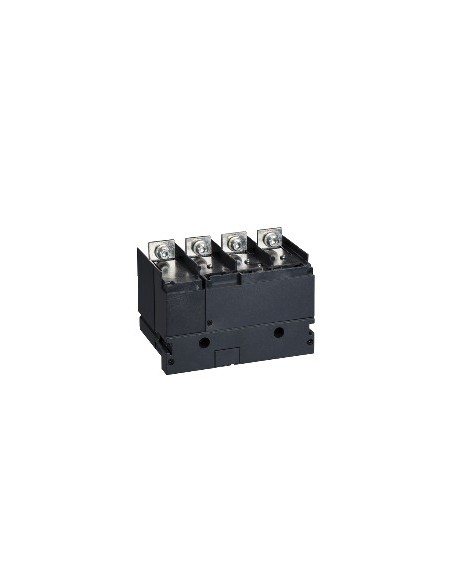

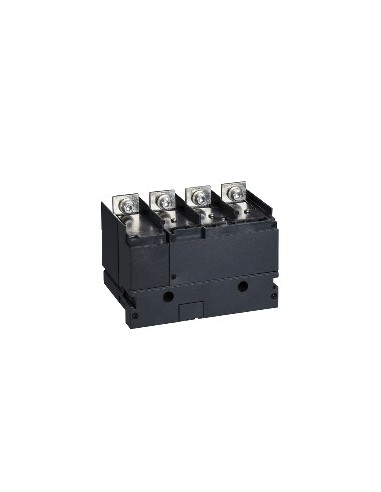

Current Transformer 250 A 4-Pole

Current transformer block and voltage output for use in control systems, compatible with the new generation ComPact NSX250 INS250 Compact INV100...250 range. Designed for AC networks with a rated current of 250 A and 4 poles, enabling accurate current measurement through a current transformer with a transformation ratio of 250/5 A.

Technical Features

• Number of poles: 4P
• Rated current [In]: 250 A
• Transformer ratio: 250/5 A
• Power consumption: 1.1 VA
• Accuracy class: Class 1
• Rated operating voltage [Ue]: 530 V
• Network type: AC
• Supply frequency: 50/60 Hz
• Auxiliary connection terminal: 2.5 mm² cable connector
• Electrical shock protection class: Class II
• Protection degree IP: IP40 according to IEC 60529
• Impact protection degree IK: IK04 according to IEC 62262
• EU RoHS Directive: Compliant
• China RoHS Regulation: Product outside the scope of China RoHS. Substance information declaration
• REACH Regulation: The reference contains SVHC above the threshold
• Mercury-free: Yes
• RoHS exemption information: Yes
• Sustainable offering status: Green Premium product
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container
