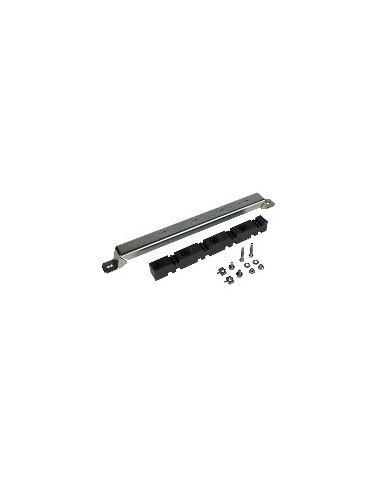

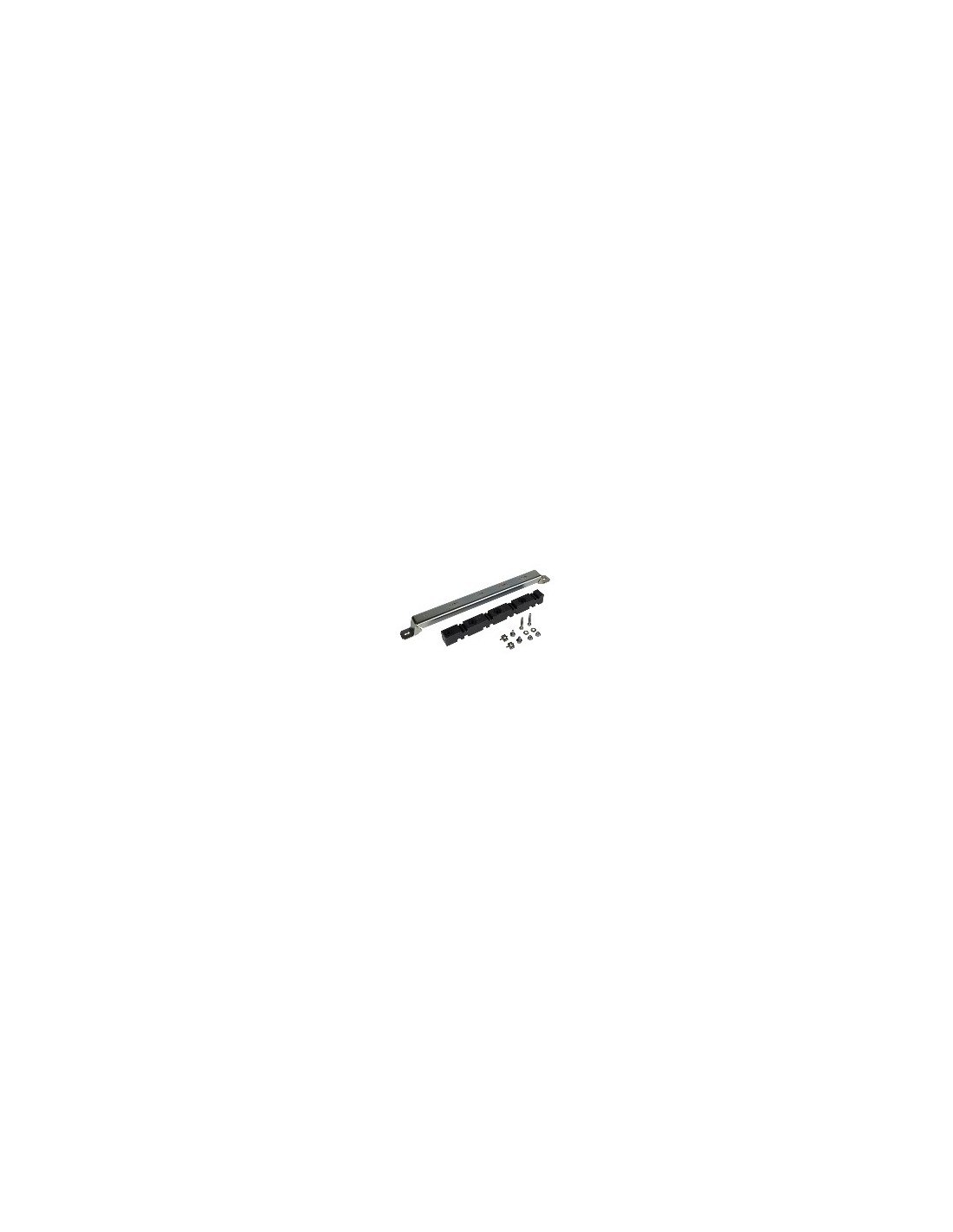

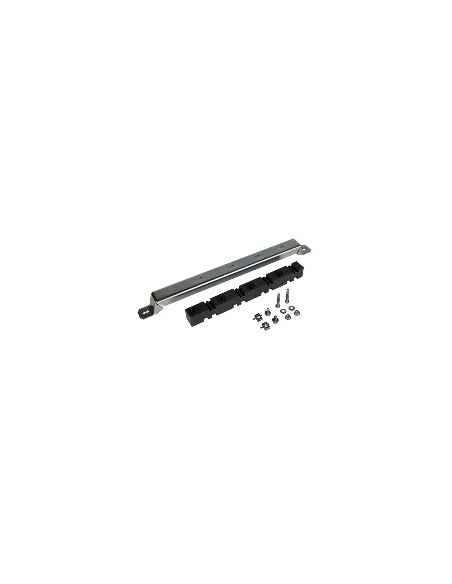

SF Space Bar holder of 500 mm nominal height, designed for vertical mounting at the bottom of the cabinet. Made of plastic insulating support and steel metal support. Compatible with the Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH ranges. Height: 66 mm, depth: 39 mm, fixing centers: 450 mm.
Description
500 mm Space SF configuration bracket designed for installation at the bottom of the cabinet, providing a stable vertical structure for attachment of elements in distribution systems. Compatible with the Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH ranges, especially in applications for Prism Multiuso.
Product Details
| Measures | 66 mm x 450 mm x 39 mm |
|---|---|
| High | 66 mm |
| Width | 450 mm |
| Depth | 39 mm |
| Weight (kg) | 1,148 kg |
| EAN | 3606480062858 |
|---|---|
| Manufacturer | SCHNEIDER |
| # Elements | 1 elemento |
| Reference | IMPO NSYAS500 |
| Material | Steel |
