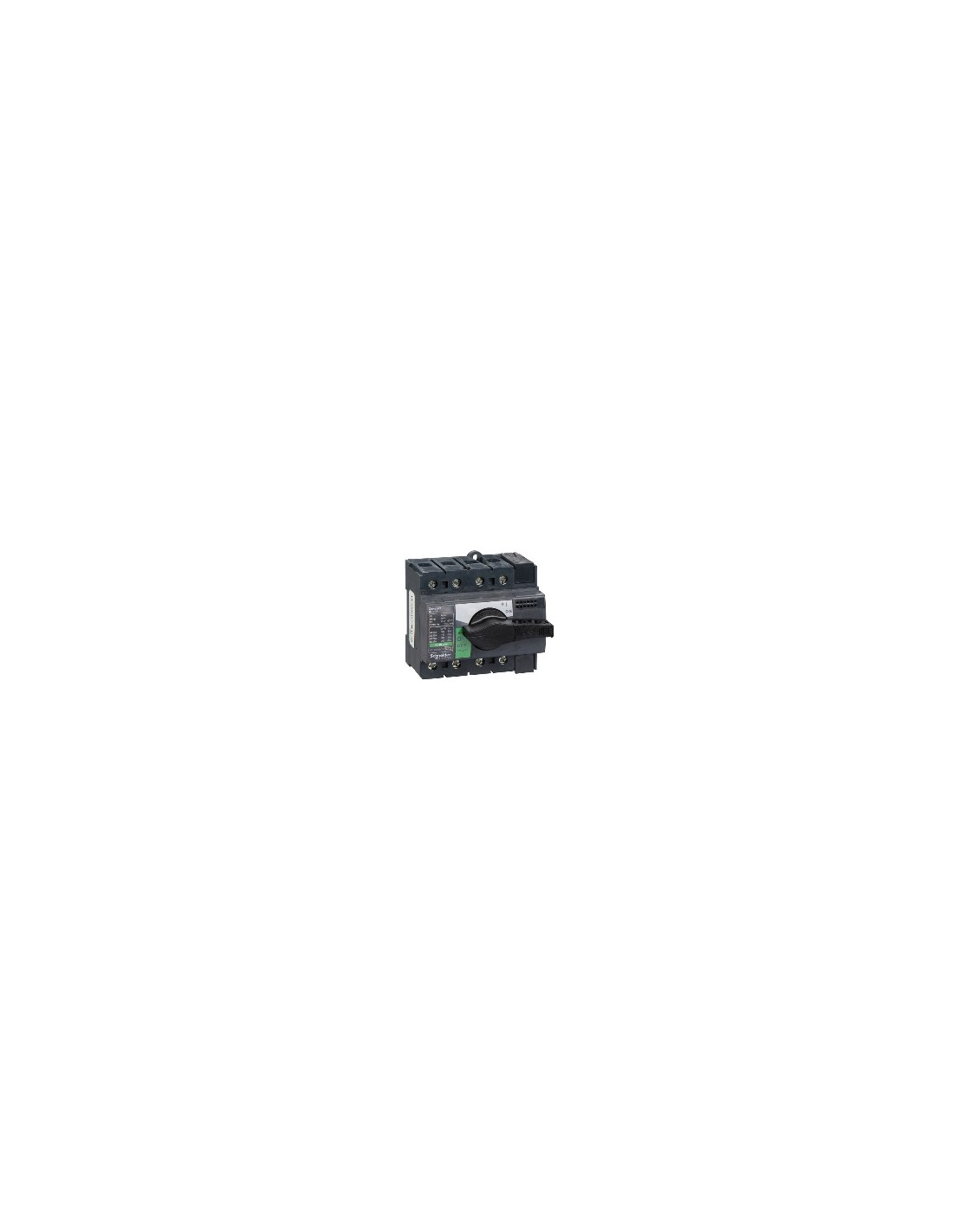

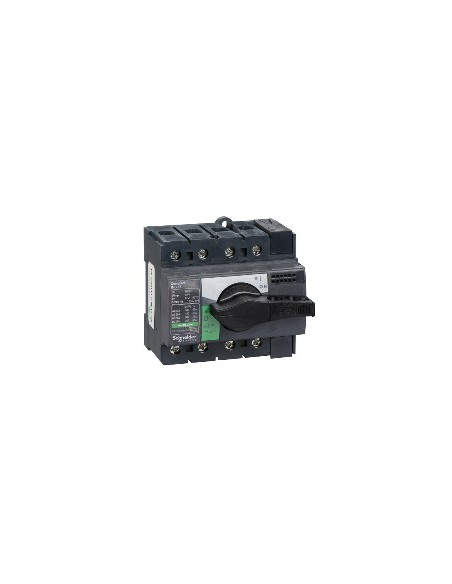

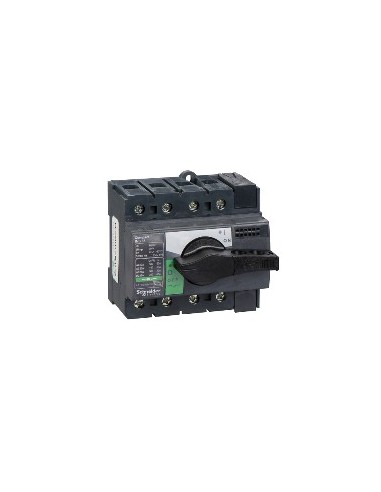

Interpact INS63 4P Isolating Switch

Compact isolating switch Interpact INS63 4P from the ComPact range, designed for safe disconnection of electrical circuits in industrial and commercial installations. Its DIN rail mounting and fixed structure ensure simple and robust integration into electrical panels.

Technical features

• Number of poles: 4P
• Network type: Alternating current AC
• Supply frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 63 A AC 50/60 Hz 220/240 V, 380/415 V, 440/480 V, 500 V; AC-23A, state 1 40 A and 63 A AC 50/60 Hz 500 V; DC-22A, state 1 63 A DC 125 V 2 poles in series; DC-23A, state 1 63 A DC 125 V 2 poles in series; DC-22A, state 1 63 A DC 250 V 4 poles in series; DC-23A, state 1 63 A DC 250 V 4 poles in series
• Rated insulation voltage: 690 V AC 50/60 Hz
• Withstand voltage surge: 8 kV
• Conventional thermal current: 63 A at 60 °C
• Rated short-circuit breaking capacity: 15 kA only isolating switch 500 V AC at 50/60 Hz; 75 kA with upstream circuit breaker 500 V AC at 50/60 Hz
• Rated operating voltage: 500 V AC 50/60 Hz, 250 V DC
• Breaking capability: Yes
• Position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary handle
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Front
• Bottom connection: Front part
• Cable cross-section: 1.5…50 mm²
• Maximum power: AC-23, state 1 15 kW at 220/240 V AC 50/60 Hz, 22 kW at 500/525 V AC 50/60 Hz, 30 kW at 380/415 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Cabinet dimensions for: 190 mm x 115 mm x 55 mm
• Permissible short-time current: 0.67 kA electrical durability 20 s, 1.73 kA electrical durability 3 s, 3 kA electrical durability 1 s, 0.55 kA electrical durability 30 s according to instantaneous and demand values
• Mechanical durability: 20000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles at 220/240 V, 380/415 V, 440 V, 500 V AC; AC-23A, state 1 1500 cycles at 220/240 V, 380/415 V, 440 V, 500 V AC; DC-22A, state 1 1500 cycles at 250 V DC 4 poles in series; DC-23A, state 1 1500 cycles at 250 V DC 4 poles in series
• Connection pitch: 18 mm
• Height: 85 mm
• Width: 90 mm
• Depth: 62.5 mm
• Product weight: 0.6 kg
• Compatibility code: INS63
• Standards: Instantaneous and demand values En > 40 A
• Product certifications: CCC KEMA-KEUR
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and never end up in a regular trash container
