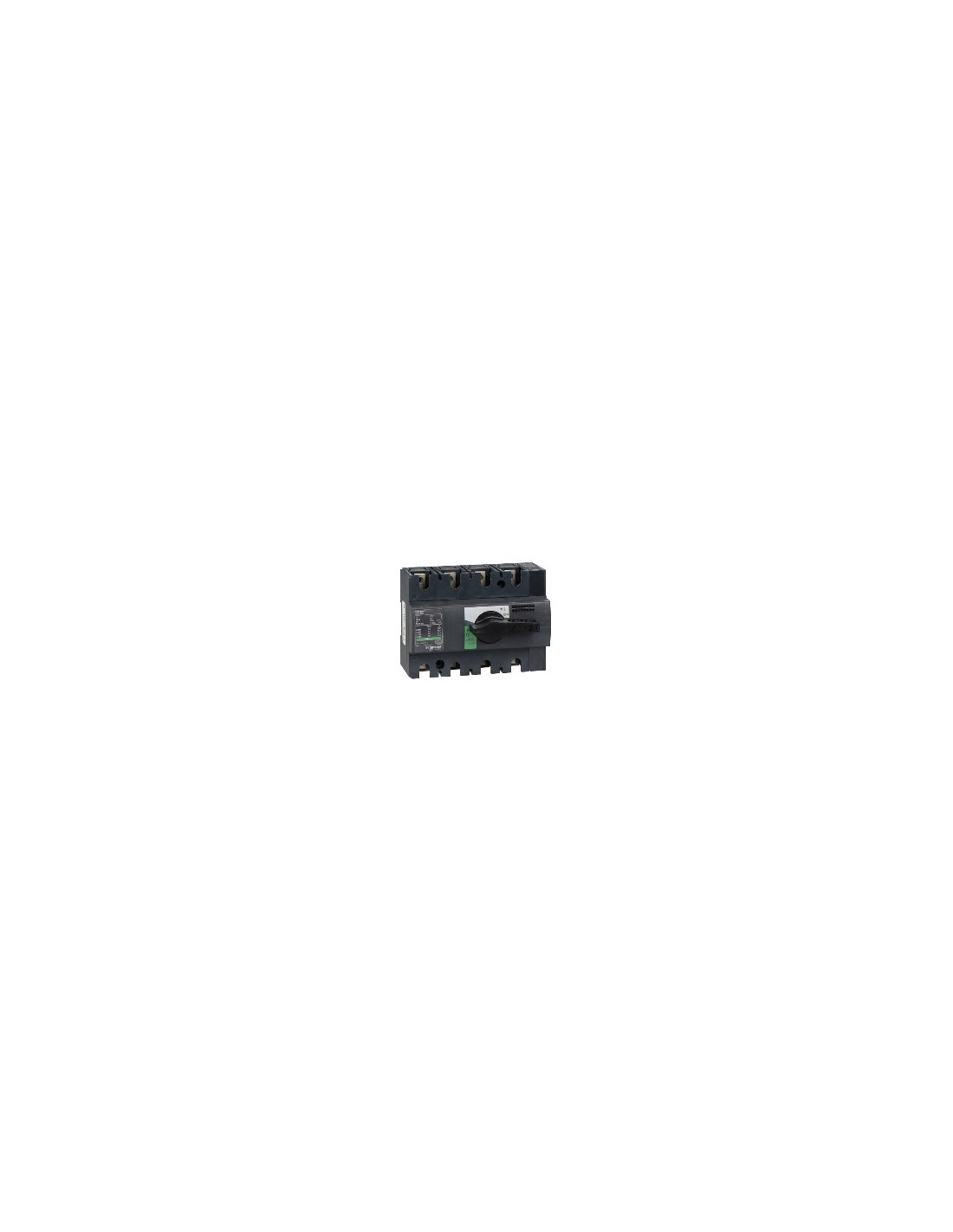

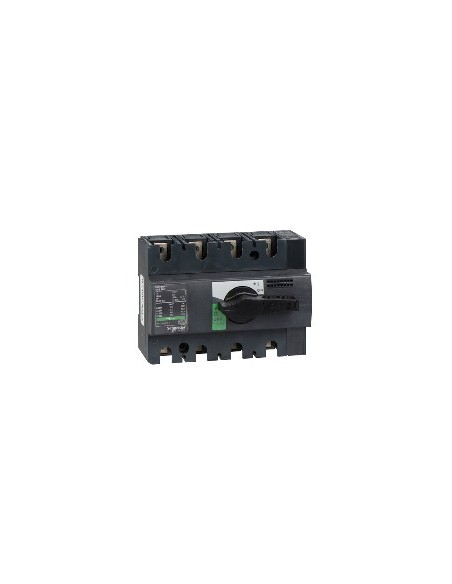

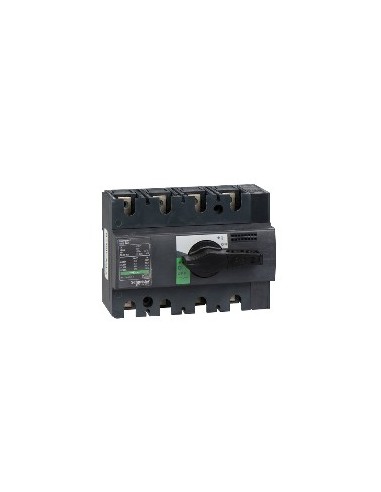

4P Isolating Switch ComPact Interpact INS160

4P isolating switch from the ComPact Interpact INS160 range, designed for control and isolation of electrical circuits in industrial installations. Its DIN rail mounting and fixed structure make it suitable for power distribution in electrical enclosures. Equipped with a rotary handle and black handle, featuring a contact position indicator for safe and visually clear operation.

Technical specifications

• Number of poles: 4P
• Network type: AC Direct current
• Network frequency: 50/60 Hz
• Rated operating current: AC-23A, state 1 100 A AC 50/60 Hz 500 V; AC-22A, state 1 160 A AC 50/60 Hz 220/240 V; AC-22A, state 1 160 A AC 50/60 Hz 380/415 V; AC-22A, state 1 160 A AC 50/60 Hz 440/480 V; AC-22A, state 1 160 A AC 50/60 Hz 500 V; AC-22A, state 1 160 A AC 50/60 Hz 660/690 V; AC-23A, state 1 100 A AC 50/60 Hz 660/690 V; AC-23A, state 1 160 A AC 50/60 Hz 220/240 V; AC-23A, state 1 160 A AC 50/60 Hz 380/415 V; AC-23A, state 1 160 A AC 50/60 Hz 440/480 V; DC-22A, state 1 160 A DC 125 V 2 poles in series; DC-23A, state 1 160 A DC 125 V 2 poles in series; DC-22A, state 1 160 A DC 250 V 4 poles in series; DC-23A, state 1 160 A DC 250 V 4 poles in series
• Rated insulation voltage: 750 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 160 A at 60 °C
• Rated short-circuit breaking capacity: 154 kA with upstream circuit breaker 690 V AC 50/60 Hz; 20 kA for isolating switch only 690 V AC 50/60 Hz
• Rated operating voltage: 250 V DC; 690 V AC 50/60 Hz
• Breaking capacity: Yes
• Contact position indicator: Yes
• Visible breaking: No
• Contamination degree: 3
• Control type: Rotary operation
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail plate
• Top connection: Front
• Downward connection: Front part
• Maximum power: AC-23, state 1 110 kW at 500/525 V AC 50/60 Hz; AC-23, state 1 45 kW at 220/240 V AC 50/60 Hz; AC-23, state 1 75 kW at 380/415 V AC 50/60 Hz; AC-23, state 1 90 kW at 440 V AC 50/60 Hz; AC-23, state 1 90 kW at 660/690 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60%
• Cabinet dimensions: 260 mm x 160 mm x 55 mm
• Permissible short-time current: 0.01 kA electrical durability 30 s; 1.23 kA electrical durability 20 s; 3.175 kA electrical durability 3 s; 5.5 kA electrical durability 1 s
• Mechanical durability: 15,000 cycles
• Electrical durability: AC-22A, state 1 1,500 cycles 220/240 V AC 50/60 Hz; AC-22A, state 1 1,500 cycles 380/415 V AC 50/60 Hz; AC-22A, state 1 1,500 cycles 440 V AC 50/60 Hz; AC-22A, state 1 1,500 cycles 500 V AC 50/60 Hz; AC-23A, state 1 1,500 cycles 220/240 V AC 50/60 Hz; AC-23A, state 1 1,500 cycles 380/415 V AC 50/60 Hz; AC-23A, state 1 1,500 cycles 440 V AC 50/60 Hz; AC-23A, state 1 1,500 cycles 500 V AC 50/60 Hz; DC-22A, state 1 1,500 cycles 250 V DC 4 poles in series; DC-23A, state 1 1,500 cycles 250 V DC 4 poles in series; AC-22A, state 1 1,500 cycles 690 V AC 50/60 Hz; AC-23A, state 1 1,500 cycles 690 V AC 50/60 Hz
• Connection pitch: 30 mm
• Height: 100 mm
• Width: 135 mm
• Depth: 62.5 mm
• Product weight: 0.9 kg
• Compatibility code: INS160
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: CCC KEMA-KEUR
• Protection rating IP: IP40 according to Activate/Deactivate Ig
• Protection rating IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a regular trash container
