4P ComPact Interpact INS100 Isolating Switch

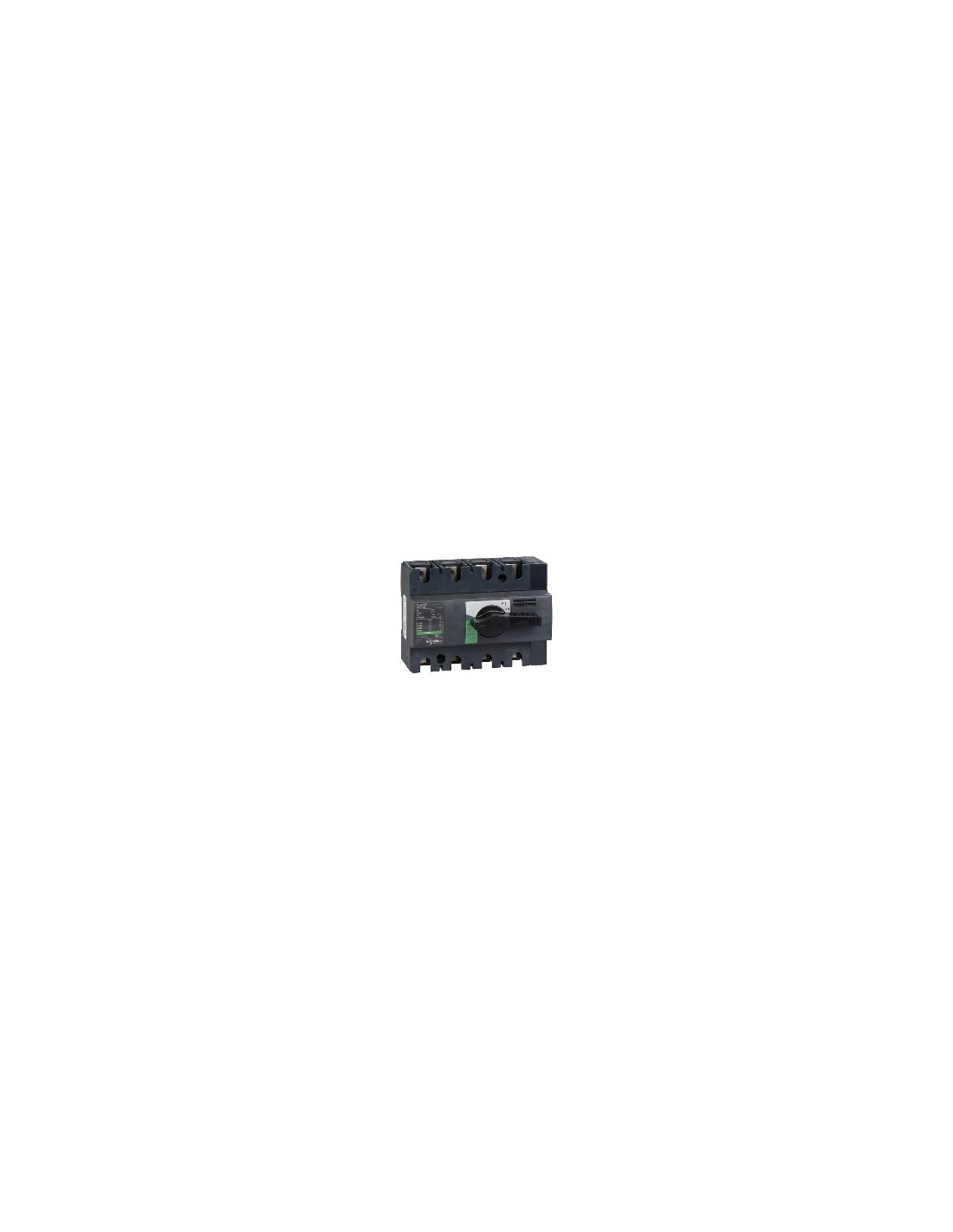

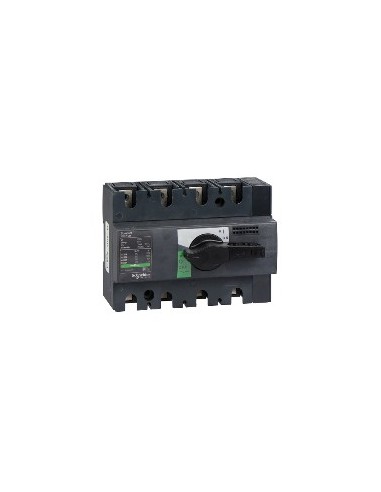

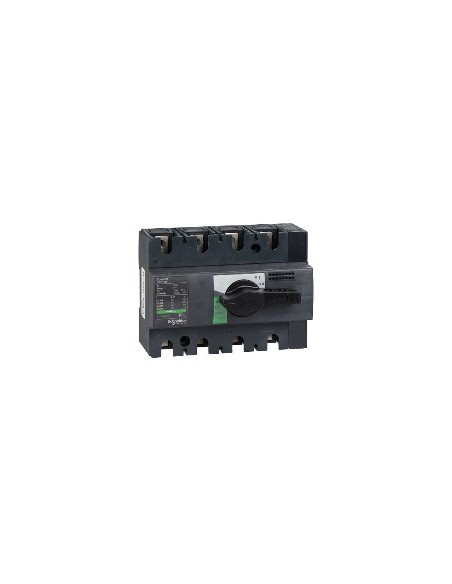

4P ComPact Interpact INS100 isolating switch, designed for safe disconnection of electrical circuits in industrial and commercial installations. Its fixed structure and DIN rail mounting ensure stability and compactness in electrical enclosures. Equipped with a rotary handle and black handle for clear and controlled operation.

Technical Features

• Number of poles: 4P
• Network type: AC current
• Network frequency: 50/60 Hz
• Rated operating current: AC-22A, state 1 100 A AC 50/60 Hz 220/240 V, AC-22A, state 1 100 A AC 50/60 Hz 380/415 V, AC-22A, state 1 100 A AC 50/60 Hz 440/480 V, AC-22A, state 1 100 A AC 50/60 Hz 500 V, AC-22A, state 1 100 A AC 50/60 Hz 660/690 V, AC-23A, state 1 100 A AC 50/60 Hz 220/240 V, AC-23A, state 1 100 A AC 50/60 Hz 380/415 V, AC-23A, state 1 100 A AC 50/60 Hz 440/480 V, AC-23A, state 1 100 A AC 50/60 Hz 500 V, AC-23A, state 1 63 A AC 50/60 Hz 660/690 V, DC-22A, state 1 100 A DC 125 V 2 poles in series, DC-23A, state 1 100 A DC 125 V 2 poles in series, DC-22A, state 1 100 A DC 250 V 4 poles in series, DC-23A, state 1 100 A DC 250 V 4 poles in series
• Rated insulation voltage: 750 V AC 50/60 Hz
• Surge voltage withstand: 8 kV
• Conventional thermal current: 100 A at 60 °C
• Rated short-circuit breaking capacity: 154 kA with upstream automatic circuit breaker 690 V AC 50/60 Hz 20 kA, only isolating switch 690 V AC 50/60 Hz
• Rated operating voltage: 250 V DC, 690 V AC 50/60 Hz
• Breaking capacity: Yes
• Position indicator: Yes
• Visible breaking: No
• Pollution degree: 3
• Control type: Rotary operation
• Handle color: Black
• Mounting type: Fixed
• Mounting support: DIN rail Plate
• Top connection: Frontal
• Bottom connection: Front part
• Maximum power: AC-23, state 1 22 kW at 220/240 V AC 50/60 Hz, AC-23, state 1 45 kW at 380/415 V AC 50/60 Hz, AC-23, state 1 55 kW at 440 V AC 50/60 Hz, AC-23, state 1 55 kW at 500/525 V AC 50/60 Hz, AC-23, state 1 55 kW at 660/690 V AC 50/60 Hz
• Rated service: Continuous
• Intermittent service class: Class 120 - 60 %
• Enclosure dimensions: 260 mm x 160 mm x 55 mm
• Permissible short-time current: 0.01 kA electrical durability 30 s, 1.23 kA electrical durability 20 s, 3.175 kA electrical durability 3 s, 5.5 kA electrical durability 1 s
• Mechanical durability: 15000 cycles
• Electrical durability: AC-22A, state 1 1500 cycles 220/240 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 380/415 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 440 V AC 50/60 Hz, AC-22A, state 1 1500 cycles 500 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 220/240 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 380/415 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 440 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 500 V AC 50/60 Hz, DC-22A, state 1 1500 cycles 250 V DC 4 poles in series, DC-23A, state 1 1500 cycles 250 V DC 4 poles in series, AC-22A, state 1 1500 cycles 690 V AC 50/60 Hz, AC-23A, state 1 1500 cycles 690 V AC 50/60 Hz
• Connection pitch: 30 mm
• Height: 100 mm
• Width: 135 mm
• Depth: 62.5 mm
• Product weight: 0.9 kg
• Compatibility code: INS100
• Standards: EN > 40 A Instantaneous and demand values
• Product certifications: KEMA-KEUR CCC
• Protection degree IP: IP40 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Operating ambient temperature: -25…70 °C
• Storage ambient temperature: -50…85 °C
• Sustainable offering status: Green Premium Product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste container

The isolating switch is designed for industrial applications requiring safe and reliable disconnection of electrical circuits. Its high mechanical and electrical durability, combined with compatibility with multiple voltages and currents, makes it suitable for diverse electrical installations.
