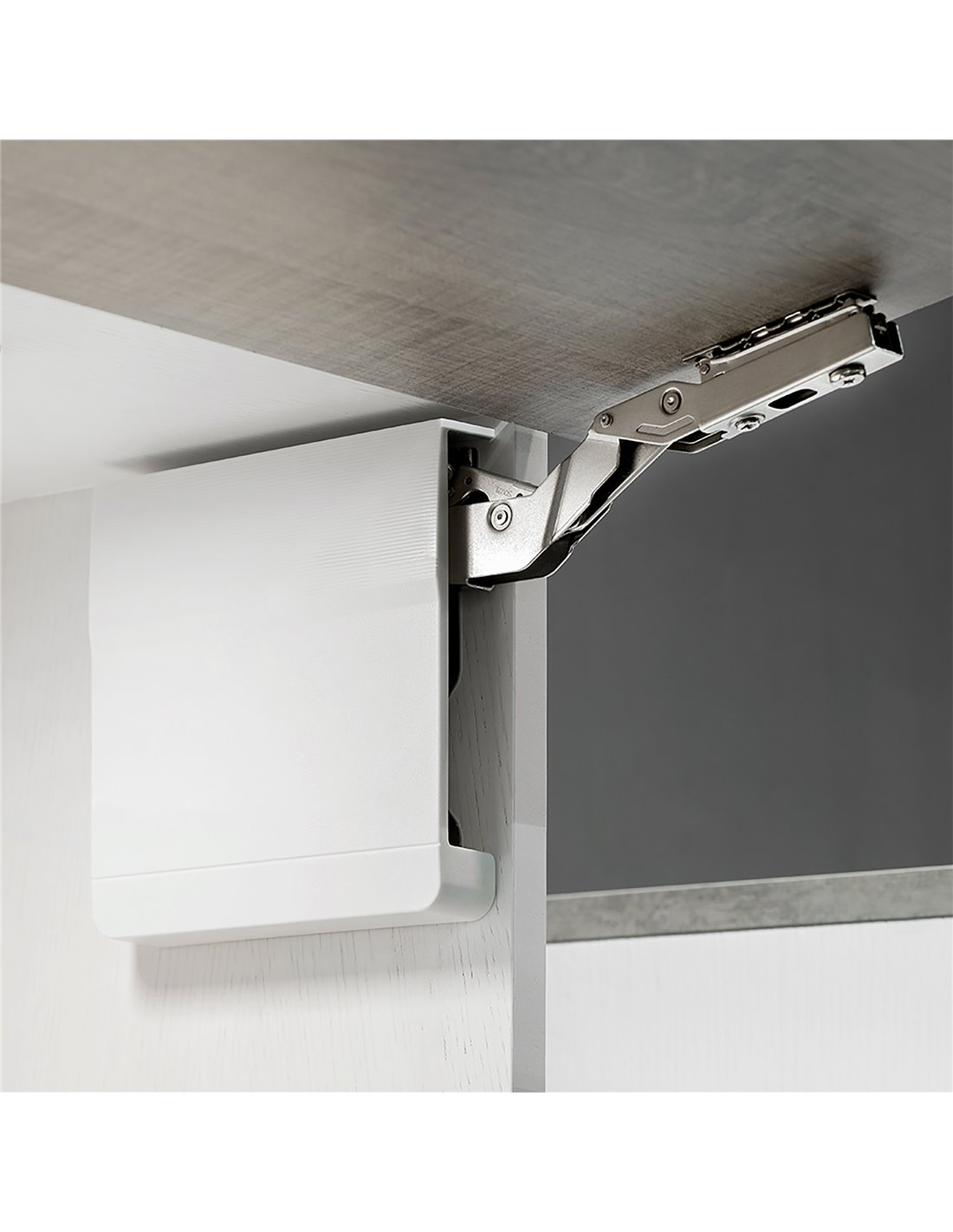

Emuca Set of compasses for Agile lifting doors, 580 - 1250, Steel and Plastic, White

EMUCA 1213015
Out of stock
€41.66
VAT included
  • Compass system designed for lift-up doors with assembly without the need for hinges.
  • Door opening angle of 107º to take advantage of space and facilitate accessibility.
  • For modules with a width of up to 1,200 mm and a height between 250 and 500 mm, with board thicknesses from 16 mm to 28 mm.
  • It has three adjustments: adjustment of the force of the mechanism, position of the three-dimensional door ±2mm and the speed of soft closing.
  • Disassembly of the door without tools through its easy clipping system.
  • Compass for necessary forces between 580 - 1,250 (see formulas).
  • The set of compasses includes the hooks, screws for fixing and includes the marking template.
  • Includes the white trim covers.

Description

Compass system for lifting doors in kitchen and home furniture. It stands out for its smooth and precise operation, without the need for hinges in assembly. You do not need any tools to dismantle the door thanks to its easy clipping system. Designed for a module width of up to 1,200 mm and height between 250 and 500 mm. It allows you to adjust the force of the mechanism, the position of the door in three dimensions ±2mm and has a soft closing with adjustable speed.

Available in three force ranges to cover a greater range of door sizes and weights to choose from. depending on the result of the calculation formulas. The trim covers are supplied and are available in white and anthracite gray finishes. It also includes the hooks and screws necessary for assembly and a marking template.

Product Details

High
4
5
Width
18
Color
Blanco
EAN
8432393127972
Manufacturer
EMUCA
Format
1 JG
Material
Plástico
Steel
Measures
580 - 1250
Weight (kg)
1
72
Depth
5
38
Reference
EMUCA 1213015
Certification
CE
Safety warning
No
GPSR Safety warning
No
