CPU COMPACTA AC 9E/7S RELE

CPU COMPACTA AC 9E/7S RELE

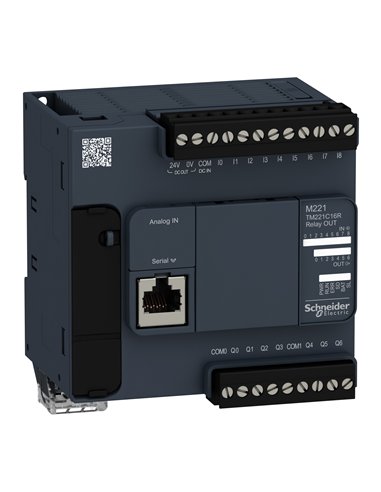

Modicon M221 16 ES Controller 100-240 V AC 2 Analog Inputs and 16 Digital I/O

Reference IMPO TM221C16R

Out of stock

€367.38

VAT included

The Modicon M221 16 ES controller is a relay-type programmable logic controller (PLC) designed for industrial applications. It offers 16 digital inputs and outputs, 2 analog inputs, and a USB port, facilitating integration and programming. Its robustness and versatility make it ideal for demanding environments.

Email address

Description

The Modicon M221 16 ES controller is a relay-type programmable logic controller designed for industrial applications that require a high level of flexibility and performance. This device has a variety of technical features that make it suitable for diverse configurations and operating environments.

Product range: Modicon M221
Product type: Programmable logic controller (PLC)
Supply voltage: 100...240 V AC
Number of digital inputs: 16
Number of analog inputs: 2 (0...10 V)
Digital outputs: 7 normally open relays
USB port and SD card slot for storage and programming
Main frequency: 50/60 Hz
Inrush current: 40 A
Memory capacity: 256 kB for user application and data RAM
Real-time clock with drift <= 30 s/month
Grade of Protection: IP20
Operating temperature: -10…55 °C
Electrostatic discharge resistance: 8 kV in air

Product Details

Appliance class: Class II
Frequency: 50/60 Hz
Isolation: 1000V
Class: AC
Sensitivity: 100
Curve: K
EAN: 3606480648694
Range: Industrial
Intensity: 40 A
Protection: IP20
Reference: IMPO TM221C16R
Rated voltage: 1kV
Current type: AC
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

Reviews (0)

No reviews
