MODULO 2E ANALOGICAS HR
MODULO 2E ANALOGICAS HR

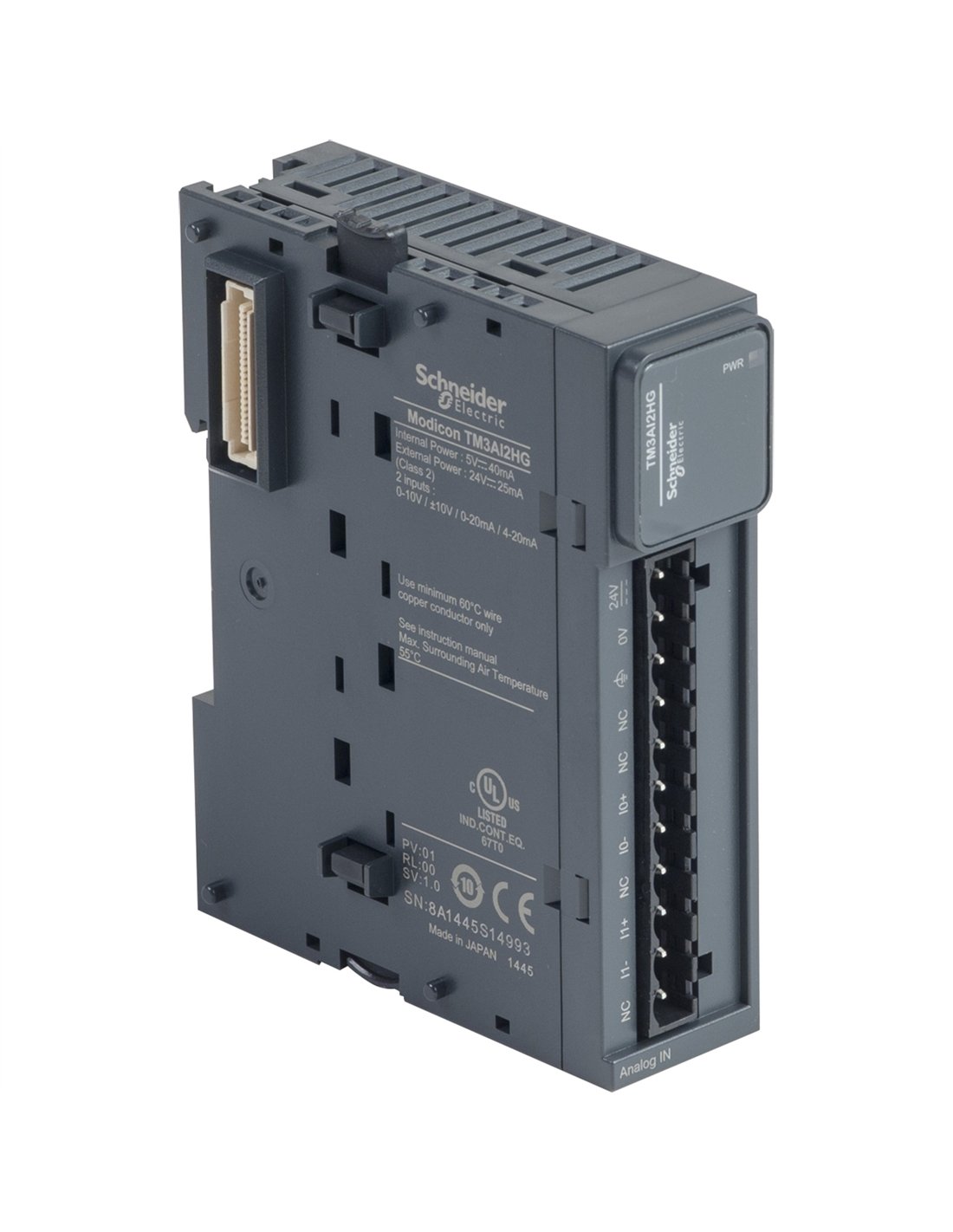

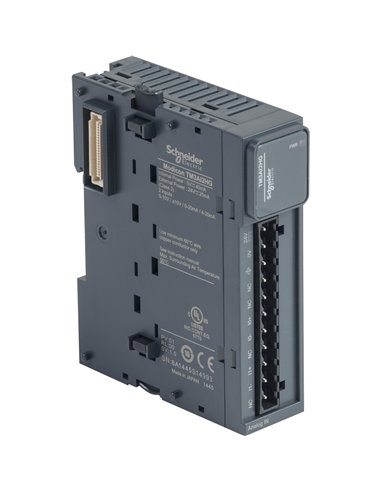

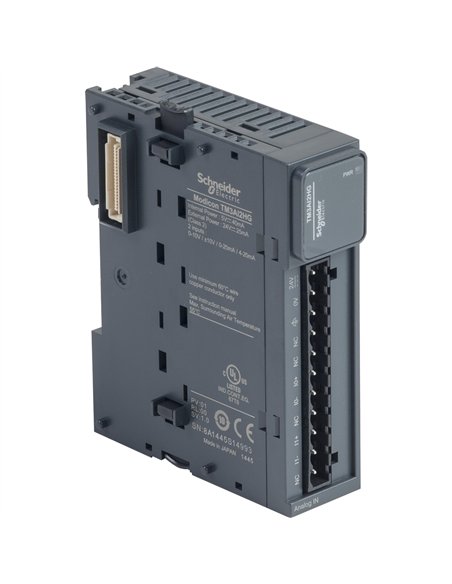

MODICON TM3 2-channel 16-bit 24VDC analog input module, IP20, 90x23.6x70 mm

  • Protection IP20
IMPO TM3AI2HG
Available
€285.38
VAT included
The Modicon TM3 module offers two high-resolution analog inputs, compatible with a wide range of controllers. Its design allows for remarkably accurate current and voltage measurement, ideal for industrial applications requiring reliable performance in demanding environments. Installation is simple and safe.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Modicon TM3 module is an advanced solution for analog data acquisition, designed to integrate with the Modicon M221, M241, M251 and M340 ranges. This device offers two high-resolution analog inputs, enabling precise measurement in various industrial applications.

  • Analog Input Type: Current (4...20 mA, 0...20 mA) and Voltage (0...10 V, -10...10 V)
  • Analog Input Resolution: 16 bits (15 bits + sign)
  • Sampling Duration: 1 ms
  • Conversion Time: 1 ms + 1 ms per channel + controller cycle time
  • Absolute Accuracy Error: +/- 0.1% of full scale at 25 °C
  • Micro-cut Immunity: 10 ms
  • Typical Current Consumption: 30 mA at 5 V DC no load
  • Protection Rating: IP20
  • Operating Ambient Temperature: -10…55 °C
  • Operating altitude: 0...2000 m

Product Details

EAN 3606480648885 – 3606480648892
Reference IMPO TM3AI2HG, IMPO TM3AI2HG
Cable cross-section (mm²) 6x70
Protection IP20
10 Items

Reviews (0)

No reviews

GPSR

Fabricante Schneider Electric España, S.A.
Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico [email protected]
Teléfono +34 930289900
Referencia IMPO TM3AI2HG
EAN 3606480648885
