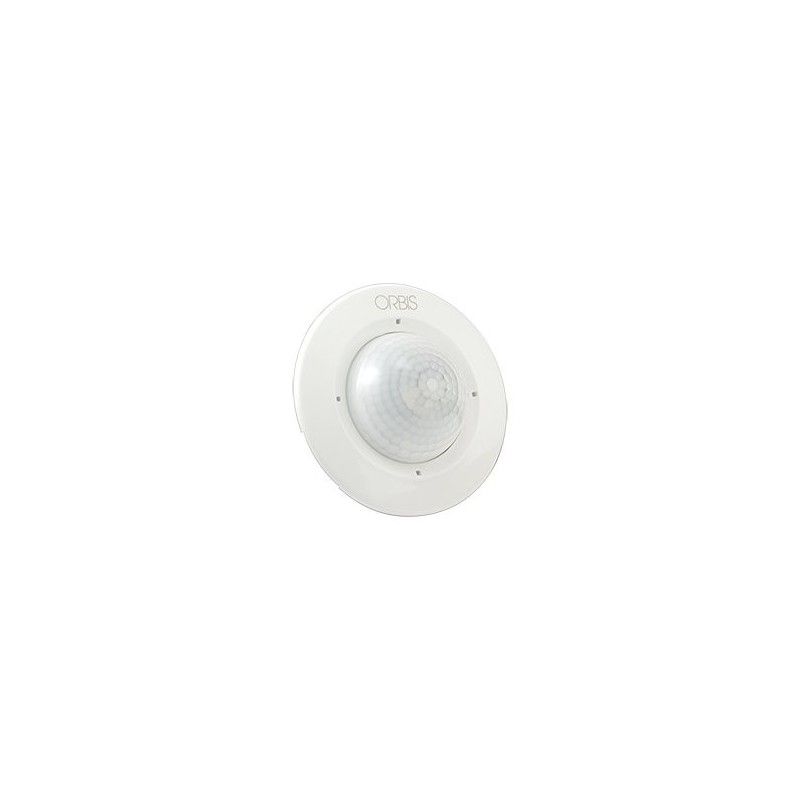

Detector additional compatible with DICROMAT + CR DICROMAT 2 + CR and earlier models by 2017 in the DICROMAT + DICROMAT 2 +.
Ideal for long corridors in hotels and residential buildings.
Streamlines, simplifies and economizes installation.
Drop your email and we'll let you know the moment it's back.
Description
Detector additional compatible with DICROMAT + CR DICROMAT 2 + CR and earlier models by 2017 in the DICROMAT + DICROMAT 2+.
It is the ideal model for facilities with long corridors, as you can connect to the computer master DICROMAT +CR/2 +CR.
Streamlines, simplifies and economizes the installation since it is not necessary neither to buy, nor to wire all the detectors in the corridor or area to cover.
Catchment area adjustable.
Limiter field of recruitment included, allows you to override the detection in specific areas within the catchment area.
DICROMAT SENSOR + includes a extender cable (7 m).
Detection angle: 360°.
Field of detection: Up to 7 m diameter to 2.5 m in height.
Degree of protection: IP 20 according to en 60529.
Equipment mounting: Ceiling (recessed).
Connection: Cable adapter.
Operating temperature: -10 ºC ... +40 ºC.
Product Details
| EAN | 8426709106256 |
|---|---|
| Manufacturer | Orbis |
| Reference | ORBIS OB133412 |
| Protection | IP20 |
| Nominal voltage (V) | 230V |
| Type of installation | Surface |
| Opening angle | 140º |
| Colour | White |
